(2-08) - RADIATOR ASSEMBLY

Запчасти Case 650G (2-08) - RADIATOR ASSEMBLY (02) - ENGINE

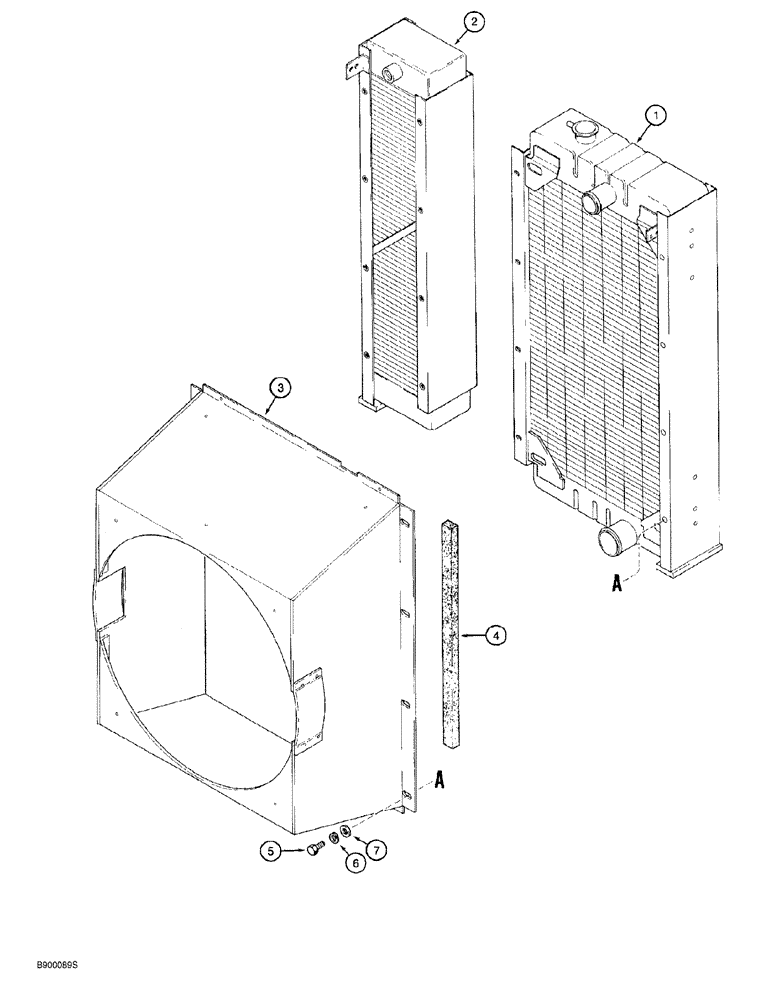

Схема запчастей Case 650G - (2-08) - RADIATOR ASSEMBLY (02) - ENGINE
6
1
3
4
2
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R56880

RADIATOR

ASSEMBLY, engine and oil cooling, no longer available, order components separately, Includes: Ref. 1 - 7

1шт.

1

S301079

ALTERNATOR

RADIATOR engine cooling

1шт.

2

S301080

OIL COOLER

oil

1шт.

3

S301081

SHROUD

radiator

1шт.

4

S301082

SEAL

radiator shroud

2шт.

5

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

16шт.

6

492-11038

LOCK WASHER,3/8"

16шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

16шт.
