(9-80) - AIR CONDITIONING SYSTEM - COMPRESSOR ASSEMBLY - 1977959C1

Запчасти Case 650G (9-80) - AIR CONDITIONING SYSTEM - COMPRESSOR ASSEMBLY - 1977959C1 (09) - CHASSIS/ATTACHMENTS

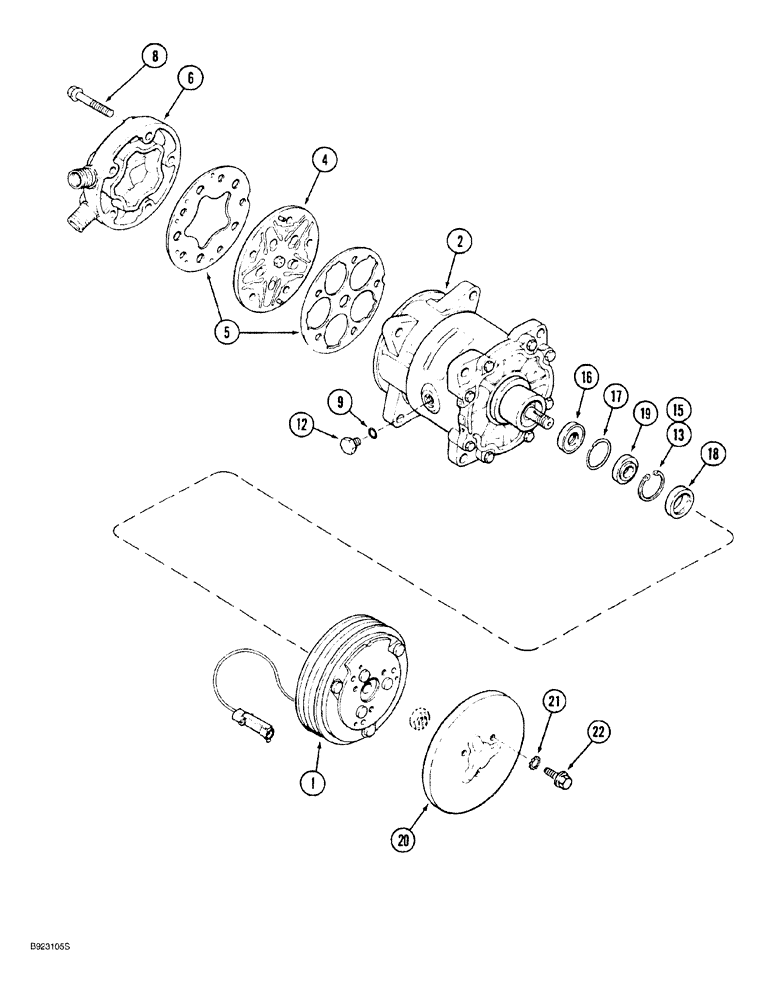

Схема запчастей Case 650G - (9-80) - AIR CONDITIONING SYSTEM - COMPRESSOR ASSEMBLY - 1977959C1 (09) - CHASSIS/ATTACHMENTS
19
21
9
2
16
17
6
1
13
22
4
15
8
20
12
18
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1977959C1

COMPRESSOR

ASSEMBLY, air conditioning, used with R-12 refrigerant, Includes: Ref. 1 - 22

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

650G CASE CRAWLER TRACTOR, ASSEMBLY (4/94-)

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

1

1981779C1

CLUTCH ASSEMBLY

compressor

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE compressor valve

1шт.

5

A49668

GASKET KIT

valve plate, set of two

1шт.

6

1958959C1

COVER

HEAD cylinder

1шт.

8

A49669

SCREW,Cylinder

hex flange, special

5шт.

9

A49666

O-RING

rubber

1шт.

12

A49667

PLUG

hex

1шт.

13

A49664

CIRCLIP

RING snap

1шт.

A49665

SEAL KIT

seal, Includes: Ref. 15 - 19

1шт.

15

A49664

CIRCLIP

RING snap

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING housing

1шт.

18

NSS

NOT SOLD SEPARAT

RING felt

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT seal, shaft

1шт.

20

1981776C1

COVER

dust, clutch, external, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER external teeth

3шт.

22

NSS

NOT SOLD SEPARAT

SCREW dust cover

3шт.
