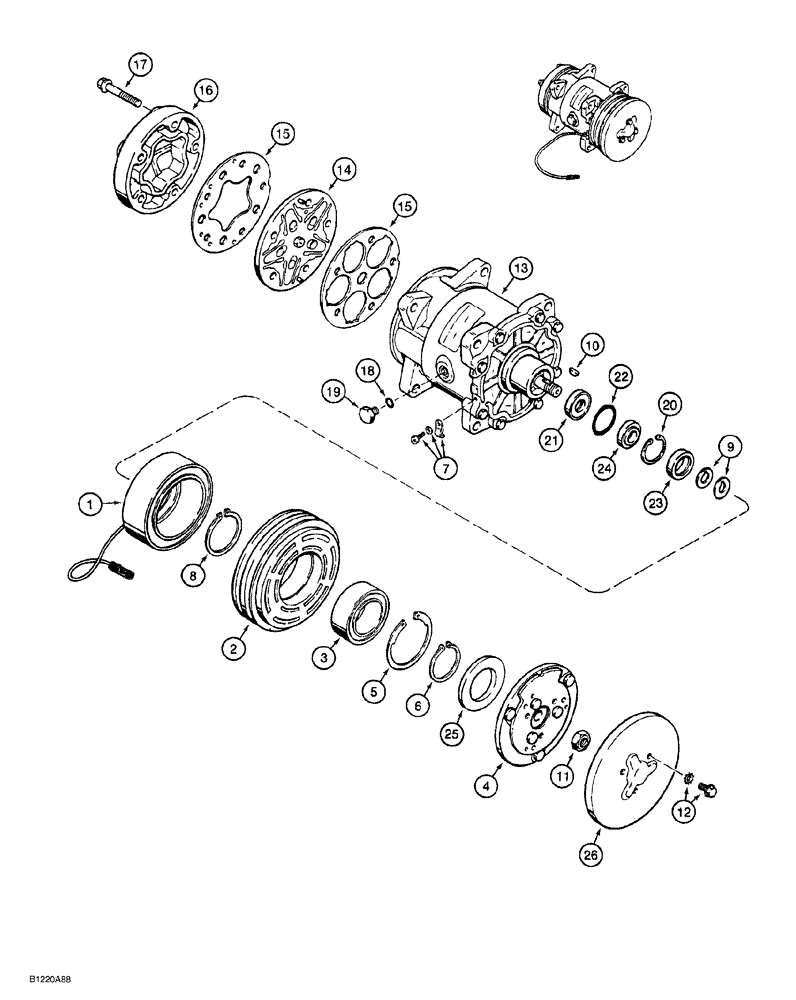

Запчасти Case 650G (9-78) - AIR CONDITIONING SYSTEM - COMPRESSOR ASSEMBLY - 97204C1 (09) - CHASSIS/ATTACHMENTS

97204C1

COMPRESSOR

ASSEMBLY, air cinditioning, used with R-12 refrigerant, no longer available, order 1977959C1, shown on Fig. 9-80, Includes: Ref.

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Part Number

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

1999755C3R

REMAN-A/C COMPRESSOR

Inc. - 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

83935C1

CLUTCH

ASSEMBLY, compressor, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

COIL ASSEMBLY, field, 12 volt, complete

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY ASSEMBLY, drive, two groove, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING pulley

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE front

1шт.

5

NSS

NOT SOLD SEPARAT

RING snap

1шт.

A49673

KIT

accessory, clutch, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

RING snap, pulley

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP lead wire, includes hardware

1шт.

8

NSS

NOT SOLD SEPARAT

RING snap, clutch

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM clutch

1шт.

10

A49671

KEY

shaft

1шт.

11

NSS

NOT SOLD SEPARAT

NUT retainer

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW retainer

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK compressor

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY, valve, Includes: Ref. 15 - 24

1шт.

15

A49668

GASKET KIT

valve plate, set of two

1шт.

16

1958959C1

COVER

HEAD cylinder, includes Ref. 15

1шт.

17

A49669

SCREW,Cylinder

BOLT hex flange, special

5шт.

18

A49666

O-RING

plug

3шт.

19

A49667

PLUG

hex, filler

1шт.

A49665

SEAL KIT

seal, compressor, Includes: Ref. 20 - 23

1шт.

20

A49664

CIRCLIP

RING snap

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING housing

1шт.

23

NSS

NOT SOLD SEPARAT

RING felt

1шт.

24

NSS

NOT SOLD SEPARAT

SEAT seal, shaft

1шт.

25

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

dust, bearing

1шт.

26

1958961C1

COVER

dust, clutch

1шт.
