Запчасти Case 650G (9-76) - AIR CONDITIONING SYSTEM - COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

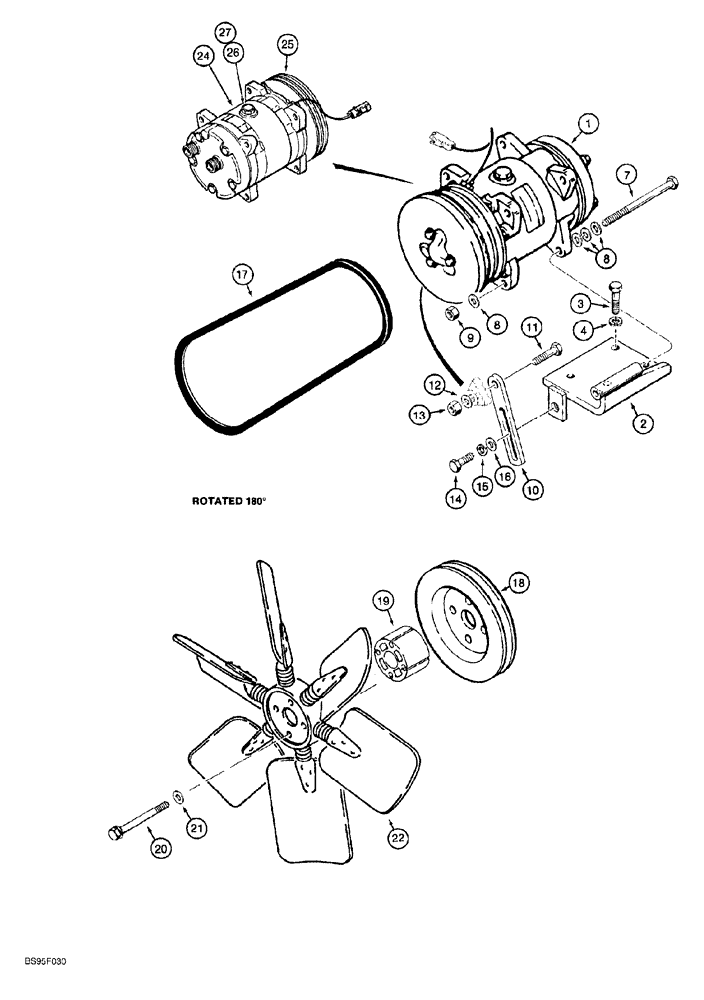

Схема запчастей Case 650G - (9-76) - AIR CONDITIONING SYSTEM - COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS
14
11
13
18
17
2
8
8
3
22
20
25
10
7
24
1
15
12
9
19
4
16
21
26
27

Артикул

Название

Примечание

Количество

1

97204C1

COMPRESSOR

ASSEMBLY, air conditioning, used with R-12 refrigerant, parts list Fig. 9-78, no longer available, order 1977959C1 compressor assembly

1шт.

1

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

1

1977959C1C

CORE-A/C COMPRESSOR

Return Part Number

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

1a

1977959C1

COMPRESSOR

ASSEMBLY, air conditioning, used with R-12 refrigerant, not shown, parts list Fig. 9-80

1шт.

1a

1977959C1R

REMAN-A/C COMPRESSOR

650G CASE CRAWLER TRACTOR, ASSEMBLY (4/94-)

1шт.

1a

1977959C1C

CORE-A/C COMPRESSOR

Return Part Number

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

2

84711C1

SUPPORT

compressor mounting

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

7

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

10

84716C1

SUPPORT

STRAP adjusting, compressor

1шт.

11

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

14

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

17

S82985

V-BELT,36.70" L

Compressor drive

1шт.

18

A189155

PULLEY

compressor drive

1шт.

19

A184545

SPACER

fan

1шт.

20

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

Heavy

4шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

22

A173564

FAN

reversible, 6 blade

1шт.

22

86993462R

REMAN-COMPRESSOR

650G (4/94-); Reman For New P/N 1999755C2

1шт.

22

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

22

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

22

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1999755C2

COMPRESSOR

ASSEMBLY, air conditioning, used with HFC 134A refrigerant, Includes: Ref. 24 - 27

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

24

NSS

NOT SOLD SEPARAT

COMPRESSOR air conditioning

1шт.

25

135324A1

CLUTCH

ASSEMBLY, compressor

1шт.

26

A49667

PLUG

hex

1шт.

27

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.

Выбрано товаров: 39
