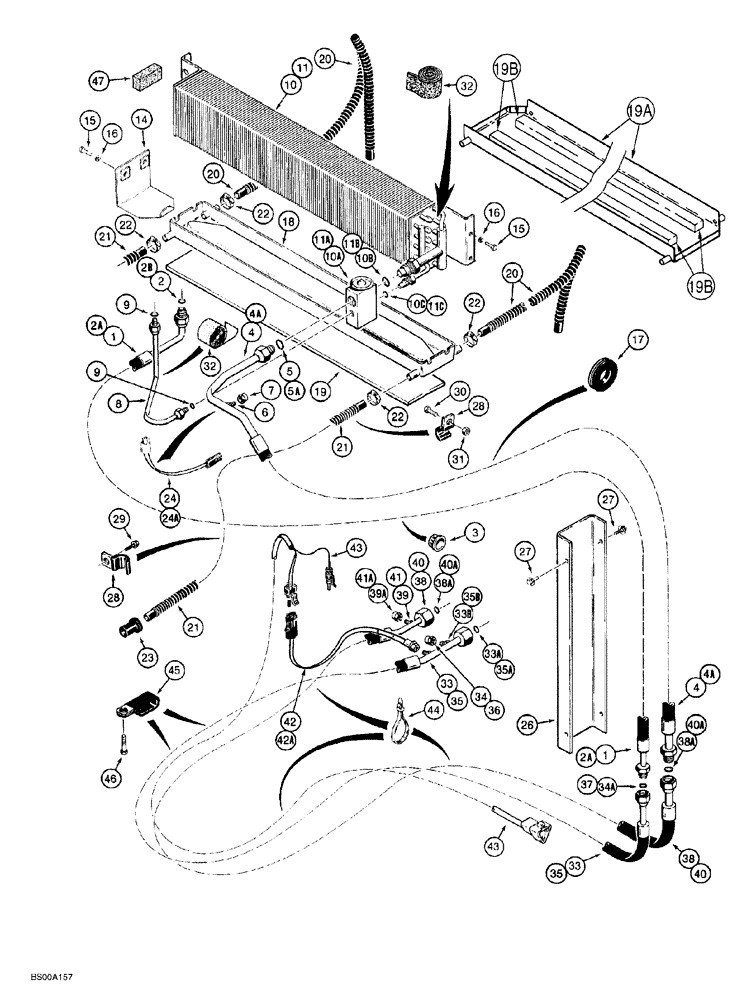

Запчасти Case 650G (9-72) - AIR CONDITIONING SYSTEM - INSIDE CAB ROOF (09) - CHASSIS/ATTACHMENTS

1

1975773C1

HOSE ASSY.

1840 mm (72-7/16 inch) long, attaches to cab roof condenser tube (Ref. 20 on Fig. 9-70) and to hose on chassis (Ref. 33 on Fig. 9-75), used with R-12 refrigerant, Includes: Ref. 2

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

2a

1975773C2

HOSE ASSY.

1840 mm (72-7/16 inch) long, attaches to cab roof condenser tube (Ref. 20A on Fig. 9-70) and to hose on chassis (Ref. 35 on Fig. 9-74), used with HFC 134A refrigerant, Includes: Ref. 2B

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

2b

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide

1шт.

3

353-482

PLUG

BUSHING snap, 1-3/16 inch ID

1шт.

4

1999508C1

HOSE ASSY.

1427 mm (56-3/16 inch) long, suction, evaporator core expansion valve upper port to hose on chassis (Ref. 38 on Fig. 9-74), used with R-12 refrigerant

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

4a

135525A1

HOSE ASSY.

1427 mm (56-3/16 inch) long, suction, evaporator core expansion valve upper port to hose on chassis (Ref. 40 on Fig. 9-75A), used with HFC 134A refrigerant, Includes: Ref. 5 - 7

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Used with Ref. 4, 1999508C1, hose

1шт.

5a

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, used with Ref. 4A, 135525A1, hose

1шт.

6

1250594C1

CORE

VALVE

1шт.

7

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45 degree flare

1шт.

8

1999507C1

TUBE

cab roof to evaporator core lower port on expansion valve, attaches to receiver-drier tube (Ref. 18 or 19A on Fig. 9-70), Includes: Ref. 9

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

9

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

10

1340490C2

EVAPORATOR

CORE ASSEMBLY, evaporator, used with R-12 refrigerant, no longer available, order 1340490C4 Ref. 11, Includes: Ref. 10A - 10C

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

10a

98370C3

VALVE

expansion, no longer available, order 1990756C2 Ref.11A

1шт.

10b

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

10c

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

11

1340490C4

EVAPORATOR

CORE ASSEMBLY, evaporator, used with HFC 134A refrigerant, replaces 1340490C3, Includes: Ref. 11A - 11C

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

11a

1990756C2

VALVE

expansion, replaces 1990756C1

1шт.

11b

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, replaces 238-5015

1шт.

11c

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide, replaces 238-5013

1шт.

14

R44085

SUPPORT

condensation pan

2шт.

15

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

16

492-11025

LOCK WASHER,1/4"

8шт.

17

D132895

GROMMET

suction hose

1шт.

18

1971366C2

CONTAINER

PAN - condensation, no longer available, order 252628A1 Ref. 19A

1шт.

19

1974623C1

FOAM

used with 1971366C2 pan, no longer available, order 253008A1 Ref. 19B

1шт.

19a

252628A1

PAN

ASSEMBLY, evaporator, replaces 1971366C2, Includes: Ref. 19B

1шт.

19b

253008A1

SEAL

pressure sensitive peel-off backing, replaces 1974623C1

2шт.

20

R51356

HOSE, 508 mm (20 inch) long, cut from F64508X bulk hose, see below

2шт.

21

R44128

HOS, 1524 mm (60 inch) long, cut from F64508X bulk hose, see below

2шт.

22

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable

4шт.

23

F44790

VALVE

check, rubber, rear dram hose

2шт.

24

92153C1

SWITCH

low pressure, used with R-12 refrigerant

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

24a

122579A1

SWITCH, A/C LOW PRES

Low, used with HFC 134A refrigerant

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

26

1999374C1

COVER

hoses

1шт.

27

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

BOLT hex socket button head, 5/16 NC x 1/2 inch

4шт.

28

R49939

CLAMP

drain hose

10шт.

29

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

6шт.

30

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

4шт.

31

86625057

NUT,#10-24, GB

4шт.

32

83822C1

TAPE

610 rnm (24 inch) long, see below

1шт.

33

1975768C1

HOSE

3330 mm (131-1/8 inch) long, discharge, compressor to cab, used with R-12 refrigerant, Includes: Ref. 33A - 34A

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

33a

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

33b

1250594C1

CORE

VALVE

1шт.

34

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45 degree flare

1шт.

34a

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

35

135519A1

HOSE ASSY.

3330 mm (131-1/8 inch) long, discharge, compressor to cab, used with HFC 134A refrigerant, Includes: Ref. 35A - 37

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

35a

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide

1шт.

35b

1250594C1

CORE

VALVE

1шт.

36

122554A1

CAP

Sealing

1шт.

37

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide

1шт.

38

1975769C1

HOSE

3267 mm (128-5/8 inch) long, suction, compressor to cab, used with R-12 refrigerant, Includes: Ref. 38A - 39A

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

38a

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

39

1250594C1

CORE

VALVE

1шт.

39a

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45 degree flare

1шт.

F64508X

LARGE HOSE

HOSE,LARGE bulk, 11 (7/16) ID x 30480 mm (1200 inch) long

1шт.

1954475C1

ROLL

TAPE bulk, 63.5 (2-1/2) x 9150 (360) x 3 mm (1/8 inch) thick

1шт.

40

135520A1

HOSE ASSY.

3267 mm (128-5/8 inch) long, suction, compressor to cab, used with HFC 134A refrigerant, Includes: Ref. 40A - 41A

1шт.

40a

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide

2шт.

41

1250594C1

CORE

VALVE

1шт.

41a

122553A1

CAP

sealing

1шт.

42

234921A1

SENSOR

SWITCH high pressure

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

42a

232948A1

SWITCH, A/C HIGH PRE

400 psi, Used with HFC 134A refrigerant, Replaces 1999925

1шт.

Brown cabs use R-12 refrigerant. Gray cabs use HFC 134A refrigerant

1шт.

43

R58601

HARNESS

cab, air conditioning, high pressure switch and compressor to main cab harness

1шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

45

R54363

CLAMP

double, 23.8 mm, if used

2шт.

46

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

If used

2шт.

47

1999749C1

FOAM

adhesive backed, 80 mm (3-1/4 inch) long, cut from 1999750C1 bulk foam, see below

2шт.

48

252765A1

ORNAMENTAL STRIP

TRIM edge, 65 mm long, used on rear engine lift brackets to protect hoses, not shown

2шт.

1999750C1

SEAL

FOAM adhesive backed, bulk sheet, 38 (1-1/2) wide x 15240 (600) long x 15 mm (1 inch) thick

1шт.
