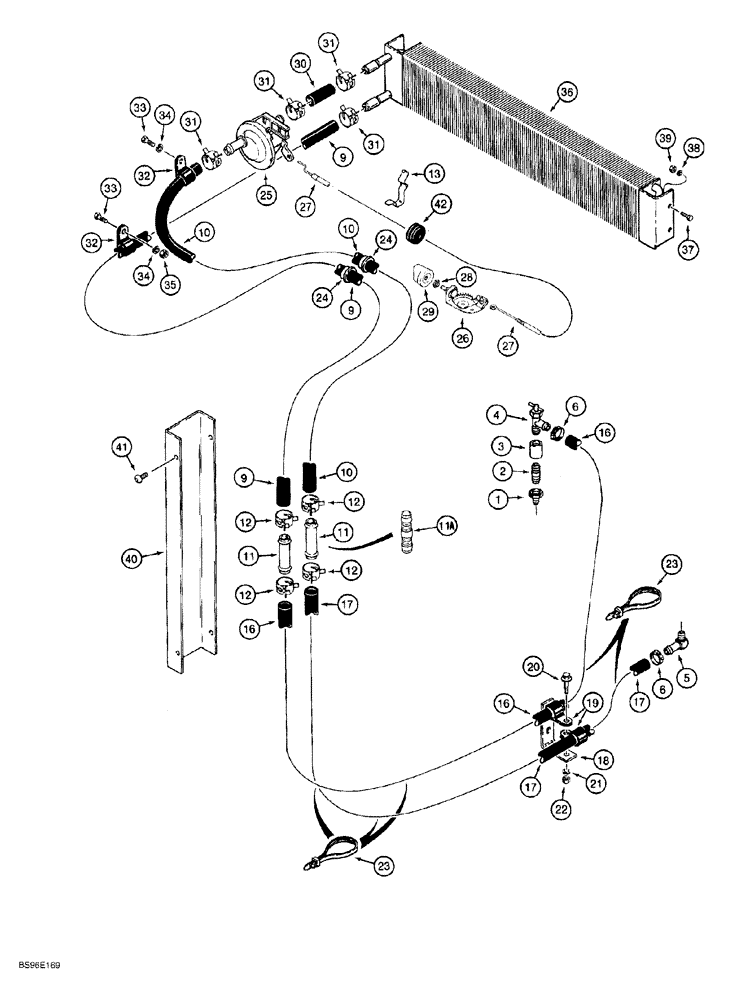

Запчасти Case 650G (9-68) - CAB HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe, 1/2 male x 3/8 inch female

1шт.

2

221-1165

JUNCTION

NIPPLE straight, 3/8 PT x 2-1/2 inch

1шт.

3

221-1337

COUPLING,Pipe, 3/8" NPT

pipe, 3/8 inch

1шт.

4

301803R1

SHUT-OFF VALVE

heater supply hose

1шт.

5

R50454

FITTING

ELBOW special, 90 degree

1шт.

6

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

9

R55243

HEATER HOSE,15.50 mm ID x 2300.00 mm

Cut from 97252CX bulk hose, Inlet, Supply to heater core

1шт.

10

R55242

HEATER HOSE,15.50 mm ID x 2550.00 mm

Cut from 97252CX bulk hose, Outlet, Return from flow control valve

1шт.

11

S104739

TUBE,0.625" OD x 3" L

hose splice, no longer available, order 1301342C1 adapter

2шт.

11a

1301342C1

FITTING

ADAPTER straight, special, hose splice

2шт.

12

1954736C1

HOSE CLAMP,#24

Adjustable

4шт.

13

1954626C1

SPRING CLIP

retaining, heater cable

1шт.

16

R55245

HEATER HOSE,15.50 mm ID x 3700.00 mm

Cut from 97252CX bulk hose, Inlet, Heater supply from engine

1шт.

17

R55244

HEATER HOSE,15.50 mm ID x 4500.00 mm

Cut from 97252CX bulk hose, Outlet, Heater return to engine

1шт.

18

R51414

SUPPORT

heater hoses, use existing mounting hardware

1шт.

19

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type

2шт.

20

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

24

353-482

PLUG

BUSHING snap, 1-3/16 inch ID

2шт.

25

1331087C1

HEATER VALVE

control, flow, heater

1шт.

1999504C1

CONTROL

ASSEMBLY, heater, includes cable, Includes: Ref. 26 - 28

1шт.

26

1999606C1

CONTROL

heater, no longer available, order 1999504C1 control assembly for service

1шт.

27

1999607C1

CABLE

heater control, no longer available, order 1999504C1 control assembly for service

1шт.

28

109311H

JAM NUT

hex, jam, 7/16-28 NF

1шт.

29

1994720C1

KNOB

push on, heater control

1шт.

30

1975733C1

HEATER HOSE,15.50 mm ID x 180.00 mm

Cut from 97252CX bulk hose, Flow Control Valve to Heater Core

1шт.

31

1954736C1

HOSE CLAMP,#24

Adjustable

4шт.

32

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Heater supply and return hoses, Clamp on return hose attaches to tappet block in cab

2шт.

33

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

F45204

HEAT-EXCHANGER

CORE

1шт.

37

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

38

492-11025

LOCK WASHER,1/4"

4шт.

39

425-104

NUT,1/4"-20, Cl 5

4шт.

40

1999374C1

COVER

hoses

1шт.

41

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

hex socket button head, 5/16 NC x 1/2 inch

4шт.

42

248-1336

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

rubber, 3/4 inch groove diameter

1шт.

97252CX

HOSE

bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long

1шт.
