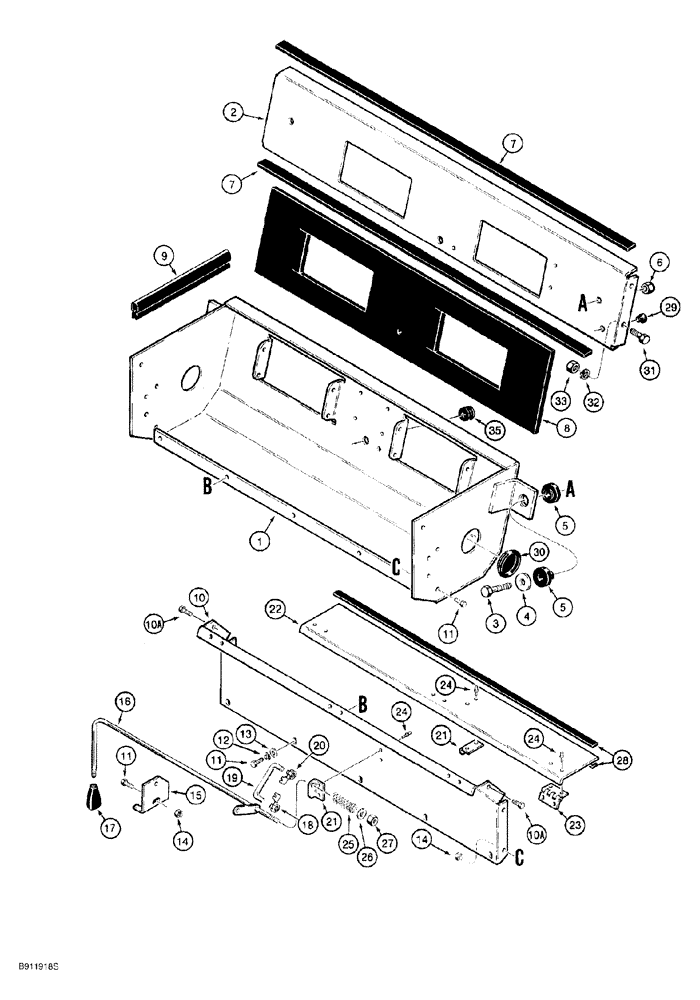

Запчасти Case 650G (9-66) - CAB ASSEMBLY - BLOWER HOUSING AND AIR FLOW CONTROL (09) - CHASSIS/ATTACHMENTS

1

R44079

HOUSING

blower

1шт.

2

R47838

PANEL

blower, front

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

4

195-137

WASHER,13/32" x 1 1/8" x .180"

flat, 13/32 x 1-1/8 x 3/16 inch

2шт.

5

R44084

BUSHING

INSULATOR rubber

4шт.

6

232-1446

NUT,3/8"-16, GC

2шт.

7

R44282

SEAL

800 mm (31-1/2 inch) long, front panel, top and bottom

2шт.

8

R44083

INSTRUCTION

SEAL blower housing, front

1шт.

9

R44801

SEAL, 210 mm (8-1/4 inch) long, cut from F43117X bulk seal

2шт.

10

R44792

PANEL

blower, rear

1шт.

10a

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

12

492-11025

LOCK WASHER,1/4"

5шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

5шт.

14

231-1444

NUT,1/4"-20, GB

7шт.

15

R44799

BRACKET

adjustment lever, airflow control

1шт.

16

R44795

LEVER

adjustment, air flow control

1шт.

17

F64341

KNOB

adjustement lever

1шт.

18

F43349

CLIP

adjustement, Serial Range: lever-rod

1шт.

19

R44798

THREADED ROD

air flow control

1шт.

20

F43350

CLIP

, Serial Range: rod-bracket

1шт.

21

R44794

SUPPORT

BRACKET panel, airflow control

2шт.

22

R44793

PANEL

air flow control

1шт.

23

F64065

HINGE

panel

3шт.

24

151-546

RIVET,Pop, 1/8" x 5/16"

break mandrel, 1/8 x 5/16 inch

16шт.

25

F62245

SPRING

adjustment lever

1шт.

26

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

27

231-1444

NUT,1/4"-20, GB

1шт.

28

R44800

SEAL, 600 mm (23-5/8 inch) long, cut from A42905X bulk seal, see below

2шт.

29

353-700

BUSHING

open/closed, 3/8 inch ID

1шт.

30

353-588

PLUG,1 3/4"

button, 1-3/4 inch

2шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

32

492-11031

LOCK WASHER,5/16"

4шт.

33

425-105

NUT,5/16"-18, G5

4шт.

34

R46825

DECAL

Fresh Air, Recirc. Air, not shown, see Fig. 9-84 for decals

1шт.

35

96901C1

GROMMET

blower motor wire

1шт.

F43117X

SEAL

formed rubber, adhesive-backed, bulk, 15 (9/16) x 31 (1-3/16) x 30480 mm (1200 inch) long

1шт.

A42905X

FOAM

SEAL, bulk, 3 (1/8) x 13 (1/2) x 9144 mm x (360 inch) long

1шт.
