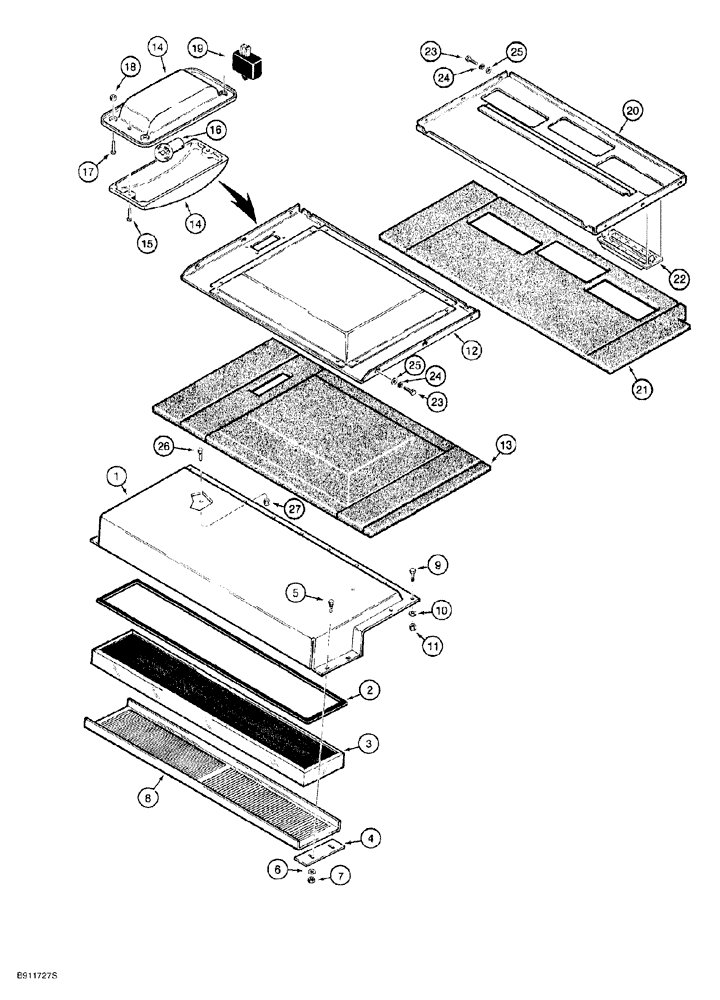

Запчасти Case 650G (9-64) - CAB ASSEMBLY - AIR FILTER AND HEADLINERS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
R44782
HOUSING
filter, air, brown
1шт.
1
189640A1
HOUSING
filter, air, gray
1шт.
2
F63669
SEAL
rubber, housing
1шт.
3
F64318
AIR FILTER
FILTER
1шт.
4
R44783
LARGE PLATE
PLATE, LARGE retainer, air filter, used with R44782 housing
2шт.
4
195544A1
PLATE
retainer, air filter, used with 189640A1 housing
2шт.
5
411-416
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 2
carriage, 1/4 NC x 1 inch, grade 2
4шт.
6
495-21031
WASHER,1/4"
flat, 5/16 x 3/4 x 1/16 inch
4шт.
7
231-1444
NUT,1/4"-20, GB
4шт.
8
R46136
SIEVE
LOUVER filter, brown
1шт.
8
189641A1
PANEL
LOUVER filter, gray
1шт.
9
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
11шт.
10
F42778
WASHER
special
11шт.
11
231-1445
NUT,5/16"-18, GB
11шт.
12
1999844C1
COVER ASSY
rear, heater lines
1шт.
13
1999843C1
PAD
rear cover, brown
1шт.
13
187464A1
PAD
rear cover, gray
1шт.
14
F89772
LAMP
dome, service with R54198, Includes: Ref. 15 and 16
1шт.
15
173-297
SCREW,Phil Rnd Hd, #8 - 32 x 1/4"
machine, round head slotted, No. 8 NC x 1/4 inch
2шт.
16
B50217
BULB
12 volt, No. 93, not used in this application, replace with D71459, 24
1шт.
16
D71459
LAMP
No. 1591, 24 volt, order separately, not included with F89772 dome
1шт.
17
473-10810
SCREW,Slotted Flat Hd, #8-32 x 5/8"
machine, flat head slotted, No. 8 NC x 5/8 inch
4шт.
18
225-14108
NUT,#8-32
hex, No. 8 NC
4шт.
19
F45393
SWITCH
rocker, dome lamp, see Ref. 17, Fig. 4-22
1шт.
20
R47840
COVER
front, for louvers
1шт.
21
R47841
NOISE PROTECTION
PAD front cover, brown
1шт.
21
187465A1
PAD
front cover, gray
1шт.
22
F98149
GUARD
LOUVER air vent
3шт.
24
492-11025
LOCK WASHER,1/4"
6шт.
25
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16")
6шт.
26
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
27
231-1445
NUT,5/16"-18, GB
2шт.
345-44
ADHESIVE
spray can, 3M No. 74, 23 ounce, for attaching foam pads to metal surfaces, buy locally
1шт.
Выбрано товаров: 34
