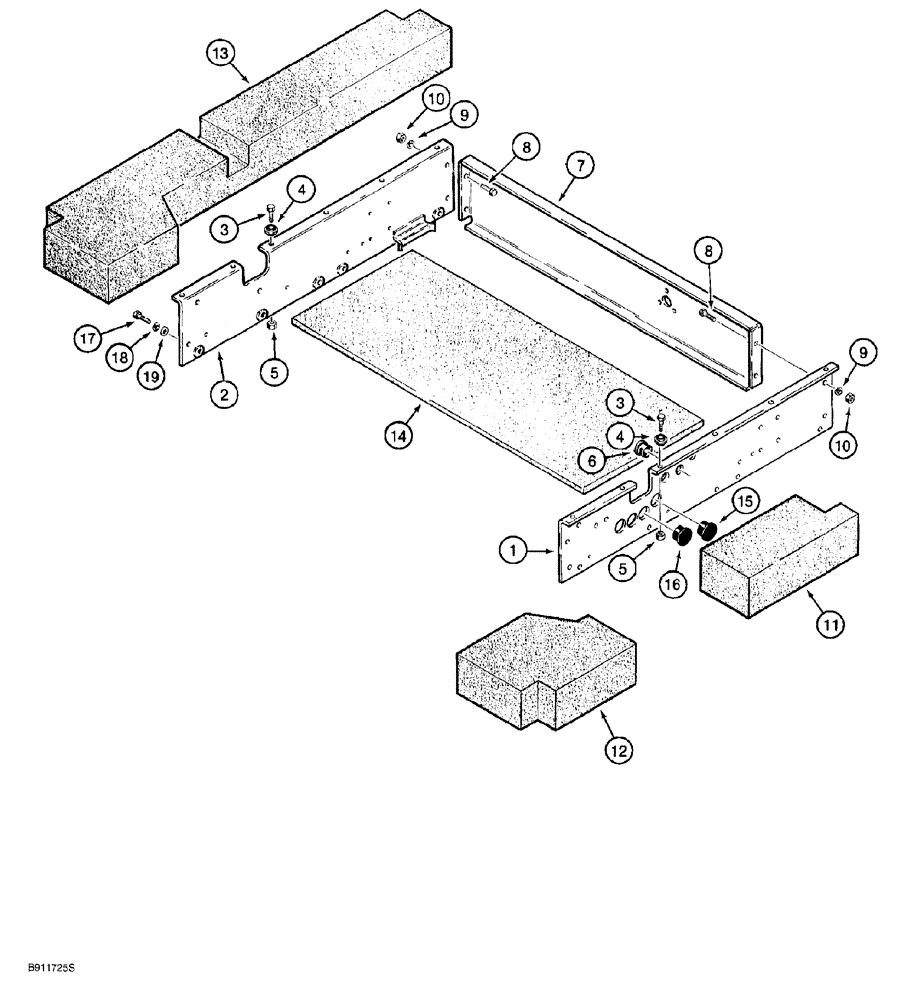

Запчасти Case 650G (9-62) - CAB ASSEMBLY - ROOF PADS AND ACCESSORY MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

1999506C1

BRACKET

mounting, right hand

1шт.

2

R47836

PANEL

BRACKET mounting, left hand

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

4

F42778

WASHER

special

12шт.

5

231-1445

NUT,5/16"-18, GB

12шт.

6

1546466C1

GROMMET

25 mm (1 inch) dia., cab and air conditioner harness

2шт.

7

1999376C1

PANEL

BRACKET windshield wiper mounting, front

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

9

492-11031

LOCK WASHER,5/16"

4шт.

10

425-105

NUT,5/16"-18, G5

4шт.

11

1999821C1

PAD

brown vinyl covered, right hand, front

1шт.

11

187462A1

PAD

gray vinyl covered, right hand, front

1шт.

12

1999822C1

PAD

brown vinyl covered, right hand, rear

1шт.

12

187463A1

PAD

gray vinyl covered, right hand, rear

1шт.

13

R51267

NOISE PROTECTION

PAD brown vinyl covered, left hand

1шт.

13

187466A1

PAD

gray vinyl covered, left hand

1шт.

14

R44171

NOISE PROTECTION

PAD foam, heat barrier, attaches to cab roof above heater and/or air conditioning cores

1шт.

15

353-422

PLUG,Dome, 1.250" hole, Nylon

Hose lines, Used on models without air conditioning, If used

1шт.

16

353-413

PLUG,Dome, 1.187" hole, Nylon

button, 1-3/16 inch, used on models without air conditioning, if used

1шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

18

492-11025

LOCK WASHER,1/4"

10шт.

19

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

10шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, for attaching foam pads to metal surfaces, buy locally

1шт.
