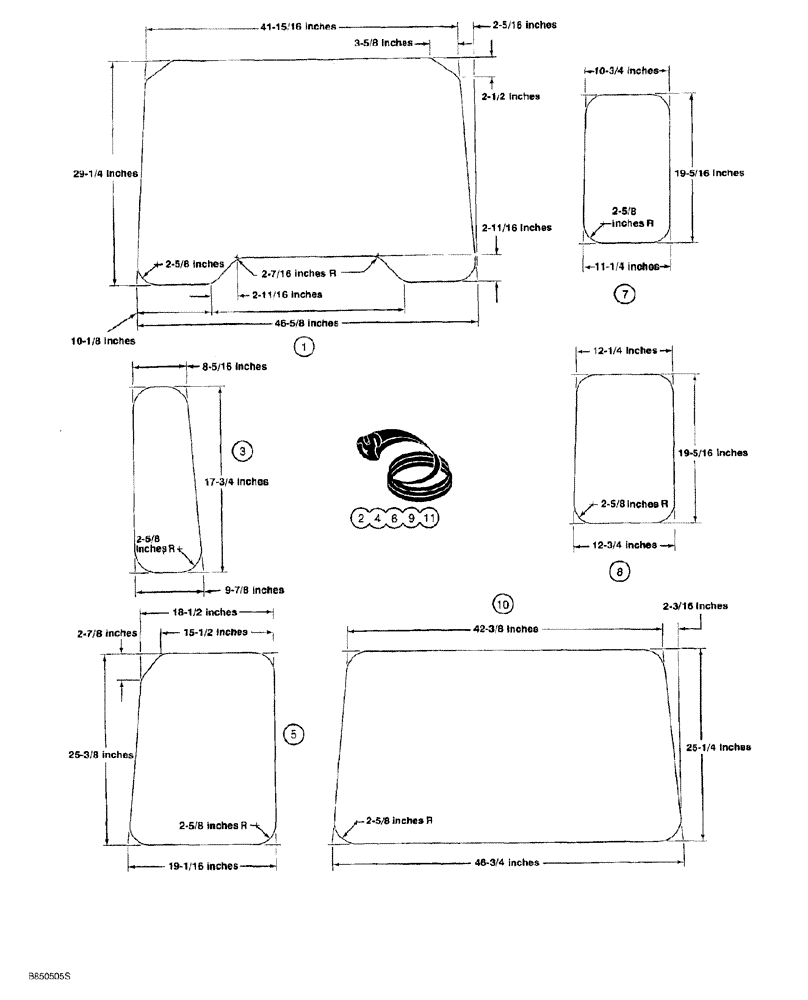

Запчасти Case 650G (9-58) - CAB ASSEMBLY - GLASS - U.S. DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

R51883

GLASS front windshield, see note below

1шт.

2

R51888

SEAL, 3610 mm (142-1/8 inch) long, cut from S118468X bulk seal, front windshield glass, see below

1шт.

3

R51350

GLASS lower front, see note below

2шт.

4

R51351

HOUSING

SEAL, 1270 mm (50 inch) long, cut from S118468X bulk seal, lower front glass, see below

2шт.

5

R51886

GLASS side windows, see note below

4шт.

6

R51889

SEAL, 2135 mm (84-1/16 inch) long, cut from S118468X bulk seal, side window glass, see below

4шт.

7

R51884

GLASS lower door, right-hand, see note below

1шт.

8

R51885

GLASS lower door, left-hand, see note below

1шт.

9

R51707

SEAL, 1565 mm (61-5/8 inch) long, cut from S118468X bulk seal, lower door glass, both sides, see below

2шт.

10

R51887

GLASS rear window, see note below

1шт.

11

R51890

SEAL, 3460 mm (136-1/4 inch) long, cut from S118468X bulk seal, rear window glass, see below

1шт.

S118468X

SEAL

bulk, 15240 mm (600 inch) long, used around all glass

1шт.
