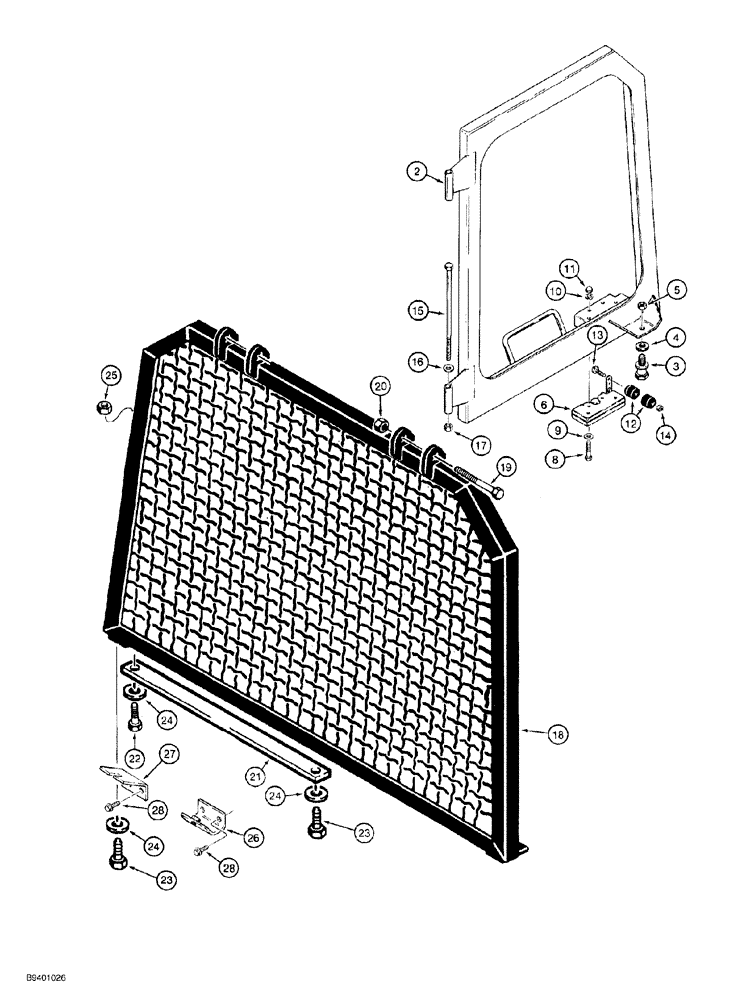

Запчасти Case 650G (9-56) - CAB ASSEMBLY - DOOR WINDOW AND REAR SCREEN (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
R51842
FRAME ASSY
door window, left hand, brown, not shown, no longer available, order 189644A1
1шт.
1
189644A1
FRAME
door window, left hand, gray, not shown
1шт.
2
R51843
FRAME ASSY
door window, right hand, brown, no longer available, order 189645A1
1шт.
2
189645A1
CHASSIS
FRAME door window, right hand, gray
1шт.
3
R51754
STRIKER
STRIKER latch, on window frame, outer
2шт.
4
495-21050
WASHER,7/16"
(Flat, 1/2 x 1-1/4 x 5/64")
2шт.
5
131-595
NUT,7/16"-14
hex, self locking, 7/16 inch NC
2шт.
6
R55002
LATCH
window, right hand
1шт.
7
R55003
LATCH ASSY.
window, left hand, not shown
1шт.
9
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16")
8шт.
10
492-11025
LOCK WASHER,1/4"
8шт.
11
129-884
CROWN NUT,Crown, 1/4"-20
dome, 1/4 inch NC
8шт.
12
L35871
FENDER
rubber, latch release knob
4шт.
13
490-11016
SCREW,Cross Pan Hd, #10-32 x 1"
machine, pan Phillips, No. 10 NF x 1 inch
2шт.
14
225-14110
NUT,#10-24
2шт.
15
424-6160
BOLT,Hex, 3/8" - 16 x 10", Gr 2
4шт.
16
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch)
4шт.
17
231-1446
NUT,3/8" - 16, Gr 5
Replaces 230-4216
4шт.
18
R51844
SCREEN
rear, brown
1шт.
18
183915A1
SCREEN
rear, gray
1шт.
19
413-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
hex, 3/8 NC x 3-3/4 inch
2шт.
20
232-1446
NUT,3/8"-16, GC
2шт.
21
N7662
BAR
screen mounting, lower, brown
1шт.
21
183914A1
BAR
screen mounting, lower, gray
1шт.
22
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
23
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3шт.
24
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch)
4шт.
25
231-1446
NUT,3/8" - 16, Gr 5
2шт.
26
112845A1
BRACKET
screen, hold open, brown
1шт.
26
187999A1
BRACKET
screen, hold open, gray
1шт.
27
1999826C1
SUPPORT
screen, support, brown
2шт.
27
188007A1
BRACKET
screen, support, gray
2шт.
28
121-130
SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
6шт.
8
413-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
8шт.
Выбрано товаров: 34
