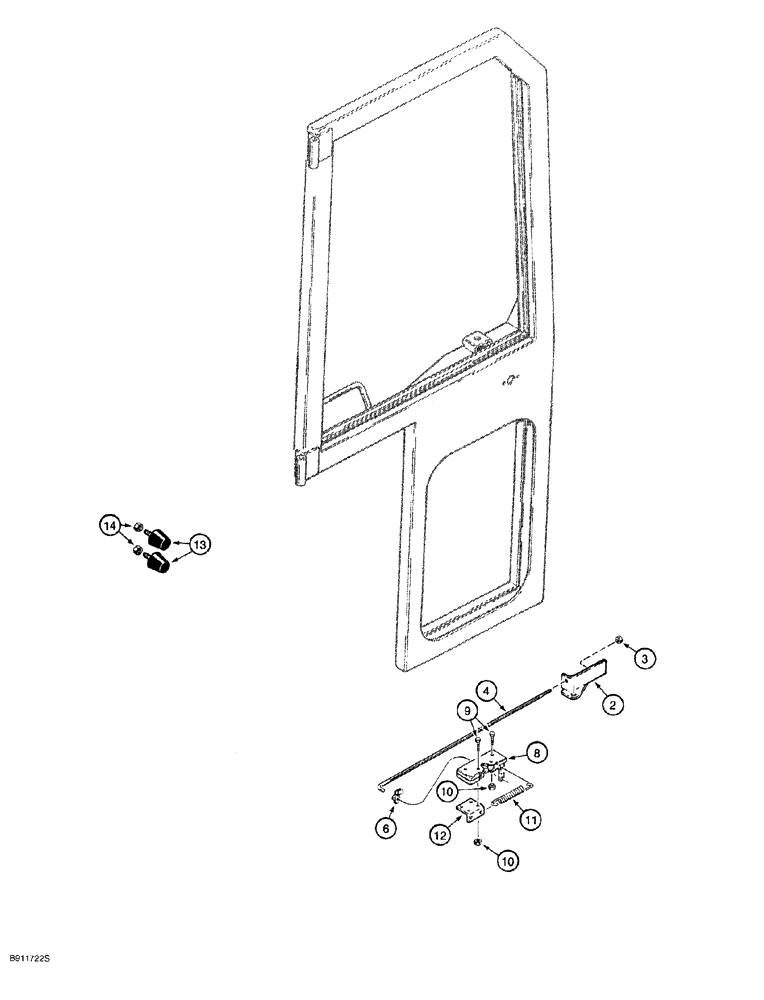

Запчасти Case 650G (9-54) - CAB ASSEMBLY - DOOR LATCHES (09) - CHASSIS/ATTACHMENTS

1

R53915

LEVER

door release, left hand, not shown

1шт.

2

R53916

LEVER

door release, right hand

1шт.

3

231-1444

NUT,1/4"-20, GB

2шт.

4

R54382

ROD

door release

2шт.

5

F43349

CLIP

rod attaching, left hand, not shown

1шт.

6

F43350

CLIP

rod attaching, right hand

1шт.

7

R55003

LATCH ASSY.

door retaining, left hand, not shown

1шт.

8

R55002

LATCH

door retaining, right hand

1шт.

10

231-1444

NUT,1/4"-20, GB

8шт.

11

L35748

SPRING

door latch release

2шт.

12

R54347

SUPPORT

spring retaining

2шт.

13

N7673

BUMPER

4шт.

14

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

9

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.
