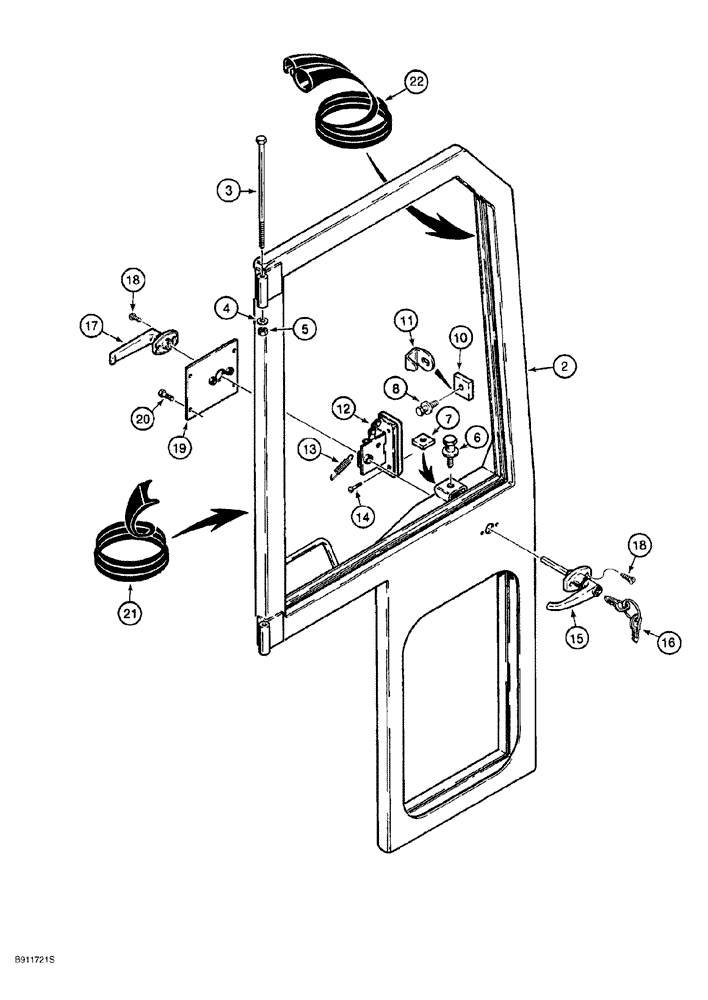

Запчасти Case 650G (9-52) - CAB ASSEMBLY - DOORS (09) - CHASSIS/ATTACHMENTS

1

R51840

DOOR

left hand, brown, not shown, no longer available, order 189642A1

1шт.

1

189642A1

DOOR

left hand, gray, not shown

1шт.

2

R51841

DOOR

right hand, brown, no longer available, order 189643A1

1шт.

2

189643A1

DOOR

right hand, gray

1шт.

3

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

4шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), if used

4шт.

5

231-1446

NUT,3/8" - 16, Gr 5

4шт.

6

R51754

STRIKER

STRIKER latch, window, on door frame

2шт.

7

1340380C1

LARGE PLATE

PLATE, LARGE square, tapped, window latch striker retaining

2шт.

8

R51754

STRIKER

STRIKER latch, door, on cab frame

2шт.

10

1340381C1

LARGE PLATE

PLATE, LARGE square, tapped, door striker retaining

2шт.

11

R51756

PROTECTOR

GUARD door striker

2шт.

R55000

LATCH ASSY.

door, right hand, rotary, Includes: Ref. 12 and 13

1шт.

R55001

LATCH ASSY.

door, left hand, rotary, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

LATCH door

1шт.

13

A180163

SPRING

extension, right hand and left hand latches

1шт.

14

143-101

SCREW,Cross Rec Flat Hd, Csk, 1/4" - 20 x 1", W/ Nylon Insert

8шт.

15

1343909C1

HANDLE

door, includes keys, Includes: Ref. 16

2шт.

16

D88772

KEY

door handle, set of two on a ring

1шт.

17

D88773

HANDLE

door, inner

2шт.

18

442-11010

SCREW,Cross Oval Hd, #10-24 x 5/8"

machine, oval Phillips, No. 10 NC x 5/8 inch

8шт.

19

N8706

LARGE PLATE

PLATE, LARGE COVER inner door latch

2шт.

20

264-2056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

self tapping, pan head slotted, No. 10 NC x 3/8 inch

8шт.

21

R51710

SEAL

SEAL, 4300 mm (169-5/16 inch) long, cut from N6453 bulk seal, around edge of door frame, see below

2шт.

22

R51711

SEAL

SEAL, 3000 mm (118-1/8 inch) long, cut from S118469X bulk seal, window frame, attaches to door frame, see below

2шт.

N6453

SEAL,138 Inches Long

bulk, rubber, 7417 mm (292 inch) long

1шт.

S118469X

SEAL

bulk, 29.5 x (1-5/32) x 18 (11/16) x 7620 mm (300 inch) long

1шт.

B504266

ADHESIVE

5 fluid ounces

1шт.
