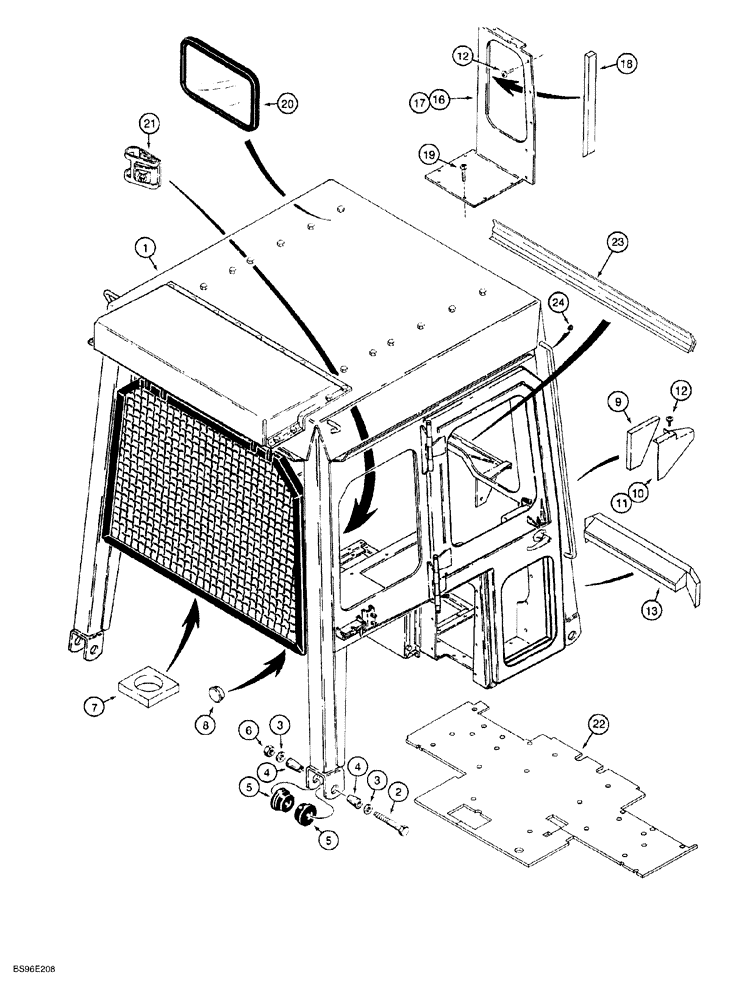

Запчасти Case 650G (9-50) - CAB ASSEMBLY - MOUNTING, FRONT CLOSURE PANELS, AND FLOORMAT (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB, ROPS, order from Machinery Price List, brown

1шт.

1

REF

INSTRUCTION

CAB, ROPS, order from Machinery Price List, gray

1шт.

2

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4 NC x 6 inch

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, hardened, special

8шт.

4

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

insert, steel

8шт.

5

F44212

MOUNTING PARTS

INSULATOR rubber, mounting

8шт.

6

232-41112

NUT,3/4"-10, GC

4шт.

7

R50587

SEAL

foam, on cab frame panel over fuel sight gauge

1шт.

8

353-407

PLUG,Dome, .687" hole, Nylon

button, 11/16 inch, rear cab frame below screen

2шт.

9

1999577C1

SEAL

foam, front, upper, between cab frame and tractor main frame, both sides

2шт.

10

1999552C1

PANEL

front closure, filler, left hand, not shown

1шт.

11

1999553C1

PANEL

front closure, filler, right hand

1шт.

12

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

hex socket button head, 5/16 NC x 1/2 inch

22шт.

13

1999371C1

SEAL

cowl, brown vinyl, dozer models

1шт.

13

187459A1

PAD

SEAL cowl, gray vinyl, dozer models

1шт.

16

1999333C1

PANEL ASSY.

front closure, left hand, brown

1шт.

16

189637A1

DEFLECTOR

PANEL front closure, left-hand, gray

1шт.

17

1999336C1

PANEL ASSY.

front closure, right hand, brown, not shown

1шт.

17

189638A1

PANEL

front closure, right hand, gray, not shown

1шт.

18

1999589C1

PAD

SEAL foam strip, between closure panel and main frame, both sides

2шт.

19

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

hex socket button head, 5/16 NC x 3/4 inch

8шт.

20

L74714

MIRROR

rear view, includes mounting hardware

1шт.

21

A36042

CLIP

RETAINER quarter turn (on heel plate) and battery cover plate (under seat)

3шт.

22

1999308C1

MAT

FLOOR one piece, brown vinyl

1шт.

22

183913A1

FLOOR MAT

one piece, black vinyl

1шт.

23

R51362

SEAL

26-3/4 inch long, cover

1шт.

24

353-62

PLUG,Cap, .302" OD

tapered, 5/16 inch, hand rail

16шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, for attaching foam pads to metal surfaces, buy locally

1шт.
