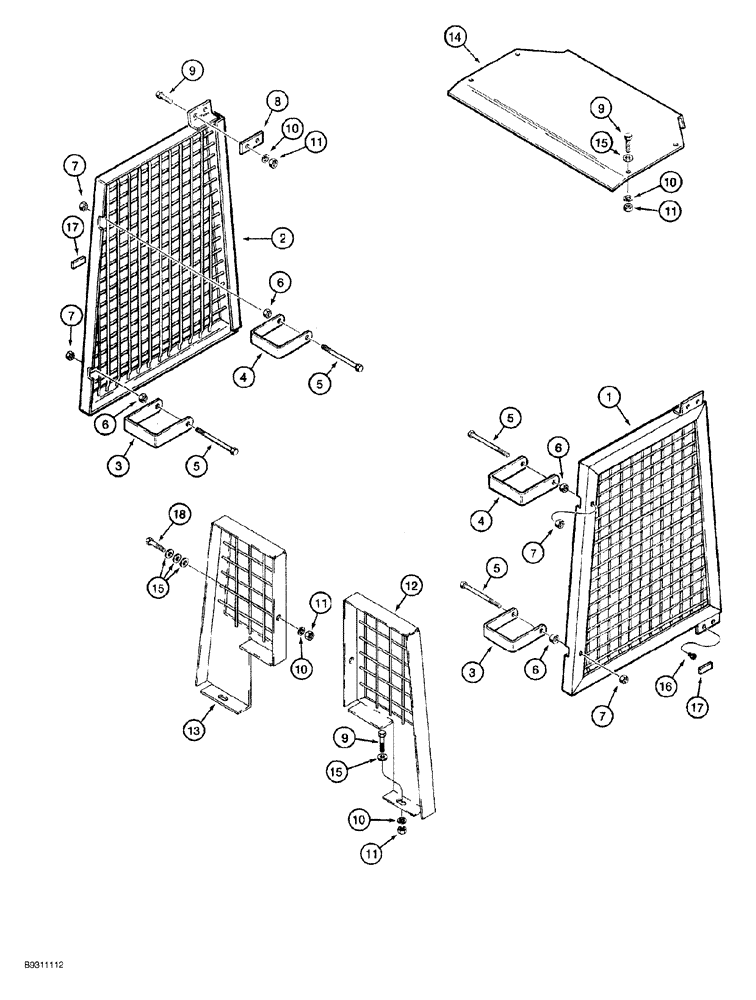

Запчасти Case 650G (9-48) - ROPS CANOPY BRUSH SCREENS AND EXTENSION (09) - CHASSIS/ATTACHMENTS

1

R58827

SCREEN

side, right hand, brown

1шт.

1

181832A1

SCREEN

side, right hand, gray

1шт.

2

R58826

SCREEN

side, left hand, brown

1шт.

2

181831A1

SCREEN

side, left hand, gray

1шт.

3

F43755

CLAMP

screen, lower rear, brown

2шт.

3

181733A1

CLAMP

screen, lower rear, gray

2шт.

4

F44447

CLAMP

screen, upper rear, brown

2шт.

4

181747A1

CLAMP

screen, upper rear, gray

2шт.

5

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

4шт.

7

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

4шт.

8

F44446

NOZZLE HOLDER

SPACER upper, side screen, front, brown

2шт.

8

177383A1

CLAMP

SPACER upper, side screen, front, gray

2шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

10шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

11

425-108

NUT,1/2" - 13, Gr 5

12шт.

12

128793A1

SCREEN

front, right hand, brown

1шт.

12

181731A1

SCREEN

front, right hand, gray

1шт.

13

128933A1

SCREEN

front, left hand, brown

1шт.

13

181732A1

SCREEN

front, left hand, gray

1шт.

14

F44448

CABLE EXTENSION

canopy, brown

1шт.

14

181749A1

DEFLECTOR

EXTENSION canopy, gray

1шт.

15

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

14шт.

16

R38089

CUSHION ASSY.

BUMPER rubber, side screens, lower

4шт.

17

R58828

PAD

rubber, screen, if used

2шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.
