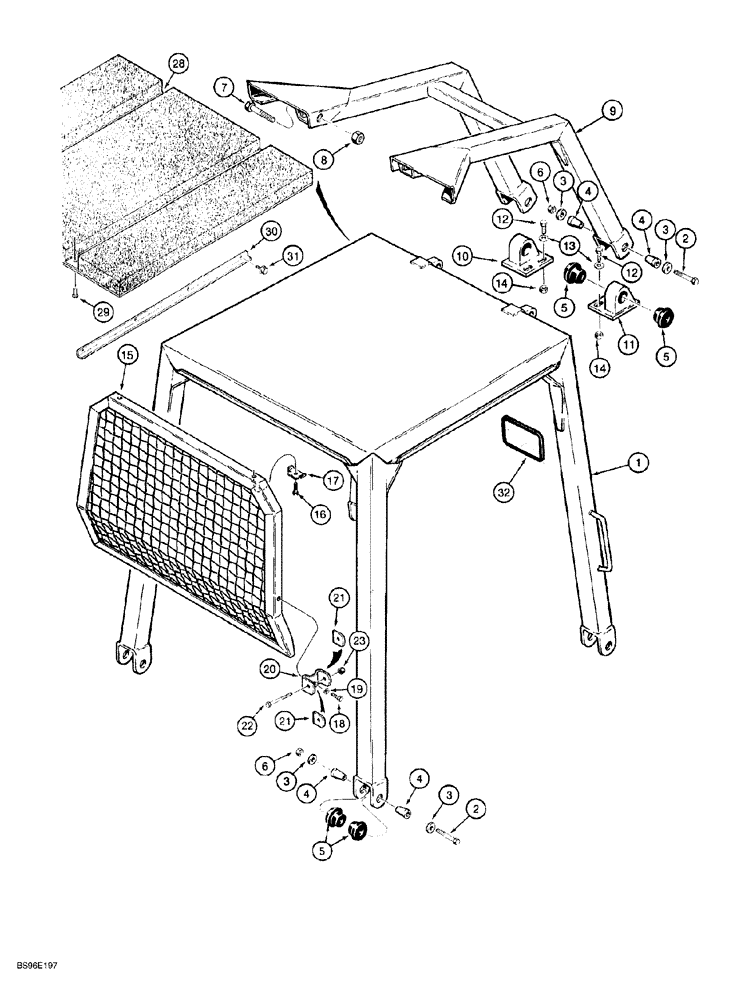

Запчасти Case 650G (9-46) - ROLL OVER PROTECTIVE STRUCTURE - CANOPY AND BRUSH GUARDS (09) - CHASSIS/ATTACHMENTS

1

R58394

ARCH

CANOPY, ROPS, order from Machinery Price List, brown

1шт.

1

180588A1

ROPS

ASSEMBLY CANOPY, order from Machinery Price List, gray

1шт.

2

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4 NC x 6 inch

6шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, hardened, special

12шт.

4

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

insert

12шт.

5

F44212

MOUNTING PARTS

INSULATOR rubber, mounting

12шт.

6

232-41112

NUT,3/4"-10, GC

6шт.

7

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

hex, 1 NC x 4-1/2 inch

2шт.

8

231-14416

LOCK NUT,1"-8, GB

hex, self locking, 1 inch NC

2шт.

9

R57170

PROTECTOR

GUARD brush, brown

1шт.

9

181901A1

GUARD ASSY.

brush, gray

1шт.

10

F93983

BRACKET

brush guard mounting, left hand

1шт.

11

F93982

BRACKET

brush guard mounting, right hand

1шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch, hardened

4шт.

14

425-1012

NUT,3/4"-10, G5

4шт.

15

R48510

BAFFLE

SCREEN rear, brown

1шт.

15

182020A1

SCREEN

rear, gray

1шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

17

R38226

LOCK WASHER

special tab locking, upper, used on models with brown trim

2шт.

17

182651A1

LOCK WASHER

special tab locking, upper, used on models with gray trim

2шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

20

R56543

CLAMP

mounting, screen, used on models with brown trim

2шт.

20

182034A1

SPECIAL CLAMP

mounting, screen, used on models with gray trim

2шт.

21

R40074

CUSHION ASSY.

rubber, screen mounting

4шт.

22

413-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

hex, 1/2 NC x 5-1/4 inch

2шт.

23

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

2шт.

28

R48895

NOISE PROTECTION

HEADLINER, ROPS canopy, vinyl covered, brown

1шт.

28

180576A1

FOAM

HEADLINER, ROPS canopy, vinyl covered, gray

1шт.

29

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

black, plastic, 1/4 hole size x 7/8 inch head dia.

6шт.

30

R58402

ANGLE BAR

BRACKET headliner retaining, brown

2шт.

30

180589A1

ANGLE

BRACKET headliner retaining, gray

2шт.

31

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

8шт.

32

L74714

MIRROR

rear view, includes mounting hardware

1шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, for attaching foam pads to metal surfaces, buy locally

1шт.
