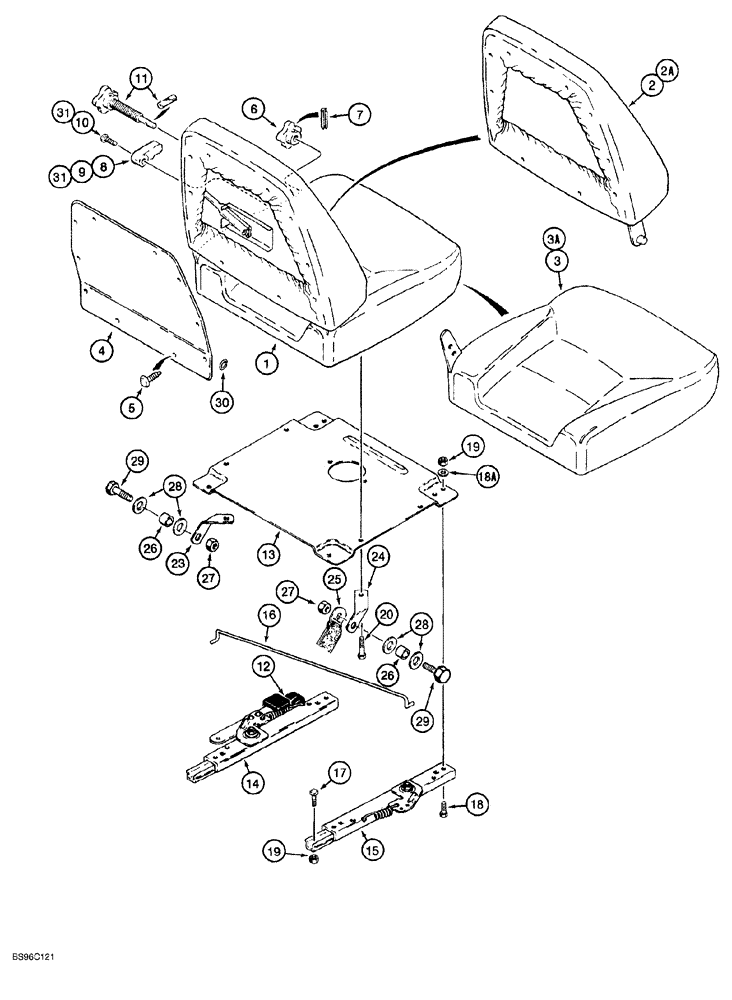

Запчасти Case 650G (9-40) - STANDARD SEAT ASSEMBLY - WITHOUT SUSPENSION (09) - CHASSIS/ATTACHMENTS

1990984C1

SEAT

ASEMBLY, standard, service replacement, contains additional parts not included in production seat, brown vinyl, Includes: Ref. 1 - 31

1шт.

175763A1

SEAT ASSY.

standard, gray vinyl, with forward and aft adjustment, Includes: Ref. 1 - 31

1шт.

1

1999727C3

SEAT ASSY.

KIT, complete, without arm rests, seat slides or tether, brown (includes Refs. 1-11)

1шт.

1

185361A1

SEAT ASSY.

KIT, complete, without arm rests, seat slides or tether, gray (includes Refs. 1-11)

1шт.

2

138365A1

FRAME ASSY

KIT backrest cushion, complete with frame, without backrest cover, includes knob, brown

1шт.

2

185362A1

BACKREST

KIT cushion, complete with frame, without backrest cover, includes knob, gray

1шт.

2a

1999729C1

BACKREST COVER

PAD cushion, with brown vinyl cover, includes hog rings

1шт.

2a

185364A1

PAD

backrest cushion, with gray vinyl cover, includes hog rings

1шт.

3

138366A1

FRAME ASSY

KIT seat cushion, complete, with frame, includes knob, brown, Includes: Ref. 3A

1шт.

3

185363A1

CUSHION ASSY.

KIT seat cushion, complete with frame, includes knob, gray, Includes: Ref. 3A

1шт.

3a

1999728C2

CUSHION

PAD seat cushion, with brown vinyl cover, no frame, includes hog rings

1шт.

3a

185365A2

PAD

seat cushion, with gray vinyl cover, no frame, includes hog rings, replaces 185365A1

1шт.

3b

141566A1

LARGE PLATE

PLATE, LARGE reinforcement, seat frame to backrest frame, left hand, if used, not shown

1шт.

1981820C2

PACKAGE, REPAIR

KIT backrest cover and retainers, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

COVER backrest plate

1шт.

5

1999693C1

KIT

CLIP christmas tree, package of 14

1шт.

1999691C1

PACKAGE,SERVICE

KIT seat knob, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

KNOB seat tilt

1шт.

7

38-31016

PIN,5/32" x 1", Coiled

2шт.

8

NSS

NOT SOLD SEPARAT

KNOB back tilt cover

1шт.

9

NSS

NOT SOLD SEPARAT

HANDLE recliner

1шт.

10

NSS

NOT SOLD SEPARAT

SCREW special

1шт.

11

NSS

NOT SOLD SEPARAT

KNOB lumbar

1шт.

12

NSS

NOT SOLD SEPARAT

KNOB fore/aft

1шт.

13

182991A1

LARGE PLATE

PLATE, LARGE adapter, replaces 136316A1

1шт.

1344248C1

SLIDE

KIT double locking slide, Includes: Ref. 14 - 19

1шт.

14

NSS

NOT SOLD SEPARAT

SLIDE locking seat, with handle

1шт.

15

NSS

NOT SOLD SEPARAT

SLIDE locking

1шт.

16

NSS

NOT SOLD SEPARAT

WIRE slide latch

1шт.

17

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

18a

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

19

231-4115

NUT,5/16"-18, GB

8шт.

20

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

1999806C1

KIT

tether, Includes: Ref. 23 - 29

1шт.

23

NSS

NOT SOLD SEPARAT

BRACKET mounting, left hand

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET mounting, right hand

1шт.

25

R57317

SAFETY BELT ,1.80" W x 10.50" L

Strap

2шт.

26

NSS

NOT SOLD SEPARAT

SPACER tether

2шт.

27

231-4117

LOCK NUT,7/16"-14, GB

hex, self locking, 7/16 inch NC

2шт.

28

495-21063

WASHER,9/16"

flat, 5/8 x 1-15/32 x 7/64 inch

4шт.

29

328-732

BOLT,Hex, 7/16" - 20 x 2", Gr 8

2шт.

30

176091A1

PACKAGE,SERVICE

KIT retaining, hog ring, package of 48 rings for cushions

2шт.

31

1987212C1

PACKAGE

KIT seat cushion back tilt knob, includes knob, recliner handle and (1) screw

1шт.
