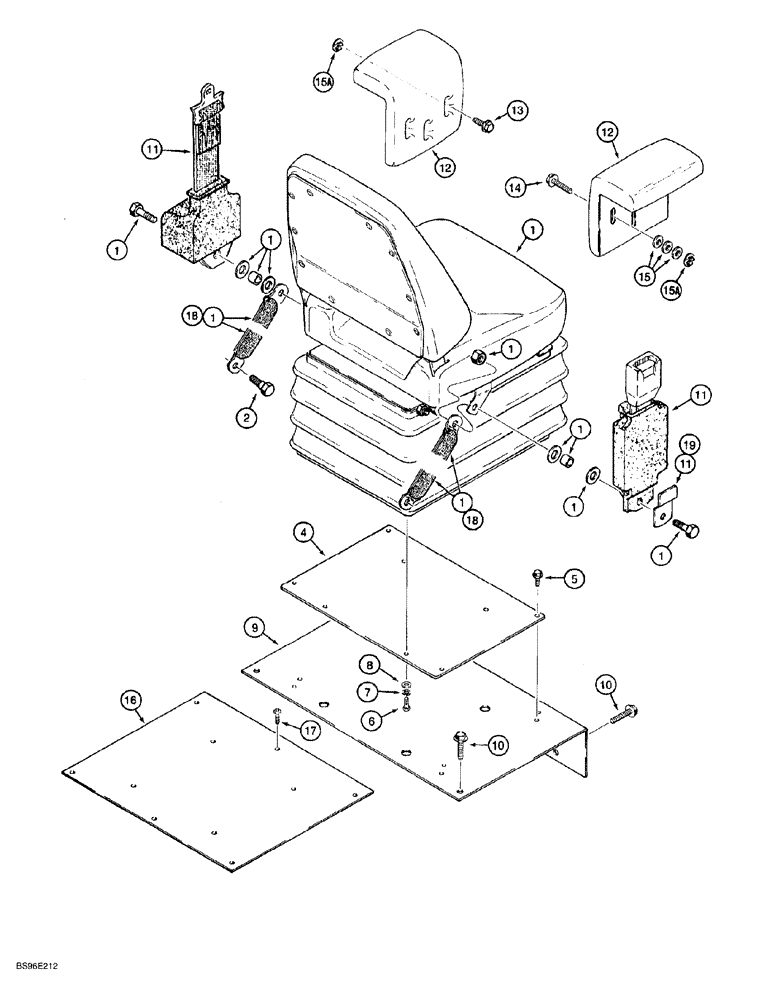

Запчасти Case 650G (9-38) - SUSPENSION SEAT MOUNTING, ARMRESTS, AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

1340220C2

SEAT ASSY.

suspension, brown, parts list Figs. 9-42 - 9-45A

1шт.

1

175764A1

SEAT ASSY.

suspension, gray, parts list Figs. 9-42 - 9-45A

1шт.

2

F42236

STEP BOLT

shoulder, special

2шт.

4

R58675

LARGE PLATE

PLATE, LARGE seat mounting, models without cab

1шт.

5

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

7

892-11008

LOCK WASHER,8mm ID

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

R58423

SUPPORT

seat mounting plate, at seat and tank frame

1шт.

10

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

11

R58339

SAFETY BELT ,2.00" W

Retractable

1шт.

11

R58418

SAFETY BELT ,3.00" W

Retractable, Includes reinforcing bracket at mounting, If used

1шт.

11

D150377

SAFETY BELT ,2.00" W

Retractable, Without reinforcing bracket at mounting, Must purchase separately, Used with D150393 belt reinforcing bracket, Ref. 19, If used

1шт.

12

R58336

ARMREST

cushion, brown

2шт.

12

194738A1

ARMREST

cushion, gray

2шт.

13

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3шт.

14

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

3шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Used with Ref. 14 bolt only, 3 used between armrest and each mounting location on hydraulic tank

9шт.

15a

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

6шт.

16

1999356C1

LARGE PLATE

PLATE, LARGE seat mounting, models with cab

1шт.

17

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

hex socket button head, 5/16 NC x 1/2 inch

6шт.

18

R57317

SAFETY BELT ,1.80" W x 10.50" L

Strap

2шт.

19

D150393

BRACKET

reinforcing, seat belt, if used

1шт.
