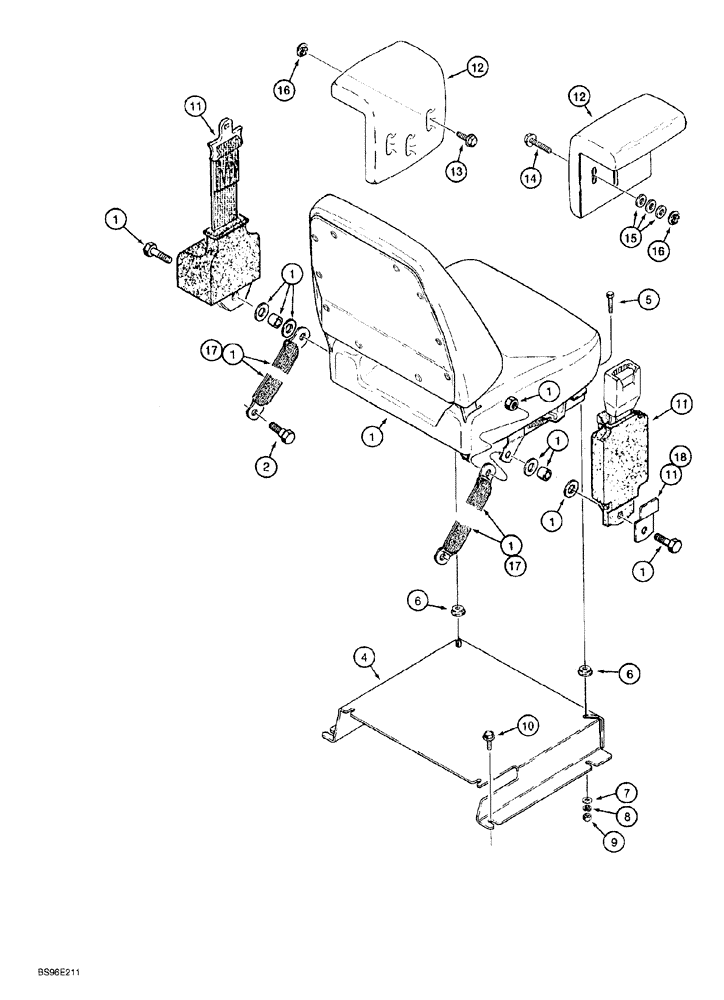

Запчасти Case 650G (9-36) - STANDARD SEAT MOUNTING, ARMRESTS, AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

1990984C1

SEAT

standard, service replacement, contains additional parts not included in production seat, brown vinyl, parts list Fig. 9-40, 9-41A

1шт.

1

175763A1

SEAT ASSY.

standard, gray vinyl, parts list Fig. 9-40, 9-41A

1шт.

2

F42236

STEP BOLT

shoulder, special

2шт.

4

R58831

SUPPORT

seat mounting

1шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

4шт.

6

700711545

CUP WASHER

SPACER, front only

2шт.

7

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

8

492-11031

LOCK WASHER,5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

4шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

11

R58339

SAFETY BELT ,2.00" W

Retractable, Includes reinforcing bracket at mounting, If used

1шт.

11

R58418

SAFETY BELT ,3.00" W

Retractable, Includes reinforcing bracket at mounting, If used

1шт.

11

D150377

SAFETY BELT ,2.00" W

Retractable, Without reinforcing bracket at mounting, Must purchase bracket separately, Used with D150393 belt reinforcing bracket, Ref. 18, If used

1шт.

12

R58336

ARMREST

cushion, brown

2шт.

12

194738A1

ARMREST

cushion, gray

2шт.

13

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3шт.

14

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

3шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Used with Ref. 14 bolt only, 3 used between armrest and each mounting location on hydraulic tank

9шт.

16

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

6шт.

17

R57317

SAFETY BELT ,1.80" W x 10.50" L

Strap

2шт.

18

D150393

BRACKET

reinforcing, seat belt, if used

1шт.
