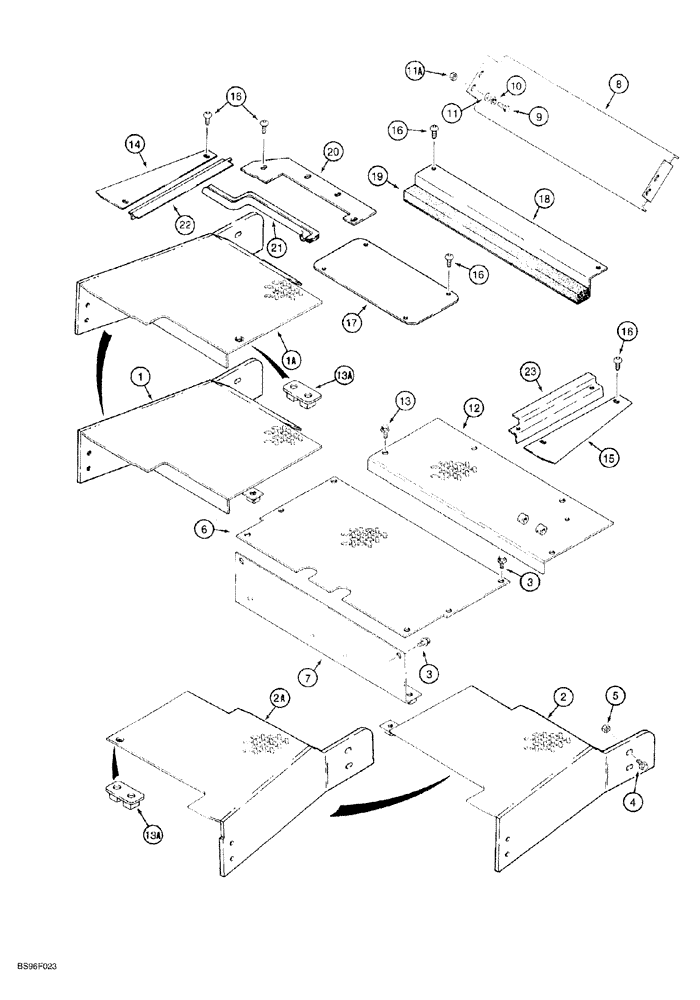

Запчасти Case 650G (9-34) - FLOOR AND STEP PLATES (09) - CHASSIS/ATTACHMENTS

1

121207A1

PLATE ASSY.

step, left hand, no longer available, order Ref. 1A, 226089A1 plate and Ref. 13A, 224313A1 tab plate, models without cab

1шт.

1a

226089A1

PLATE

step, left hand, models without cab

1шт.

2

108059A1

PLATE

step, right hand, no longer available, for service order 2A, 226088A1 and Ref. 13A, 224313A1 tab plate, models without cab

1шт.

2a

226088A1

PLATE

step, right hand, models without cab

1шт.

3

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Models without cab

12шт.

4

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

hex flange, 1/2 NC x 1-1/2 inch, grade 8, models without cab

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

Models without cab

8шт.

6

R57960

LARGE PLATE

PLATE, LARGE floor, models without cab

1шт.

7

R57970

PLATE

heel, models without cab

1шт.

8

R57957

LARGE PLATE

PLATE, LARGE foot rest, models without cab

1шт.

9

33-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

carriage, 3/8 NC x 1 -1/4 inch, models without cab

4шт.

10

492-11038

LOCK WASHER,3/8"

Models without cab

4шт.

11

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Models without cab

4шт.

11a

425-106

NUT,3/8"-16, Cl 5

Models without cab

4шт.

12

R57958

LARGE PLATE

PLATE, LARGE throttle, models without cab

1шт.

13

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Models without cab

4шт.

13a

224313A1

PLATE ASSY.

tab, used with 226089A1 and 226088A1, Refs. 1 A and 2A, models without cab

2шт.

14

1999343C1

PLATE

filler, step, left hand, part used on cab models only

1шт.

15

1999345C1

PLATE

filler, step, right hand, part used on cab models only

1шт.

16

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

hex socket button head, 5/16 NC x 3/4 inch, part used on cab models only

16шт.

17

1999358C1

PLATE

floor, cover, part used on cab models only

1шт.

18

1999583C1

SUPPORT ASSY.

floor, part used on cab models only, Includes: Ref. 19

1шт.

19

1999823C1

SEAL

25 x 38 x 675 mm long, floor support, part used on cab models only

1шт.

20

1999349C1

PLATE ASSY.

seal, fuel tank, part used on cab models only, Includes: Ref. 21

1шт.

21

1999824C1

SEAL

460 mm (18-1/8 inch) long, cut from 1999833C1, shown below, part used on cab models only

1шт.

22

1999368C1

BRACKET

angle, trim, floormat, left hand, part used on cab models only

1шт.

23

1999367C1

BRACKET

angle, trim, floormat, right hand, part used on cab models only

1шт.

1999833C1

SEAL

740 mm (29-1/8 inch) long, part used on cab models only

1шт.
