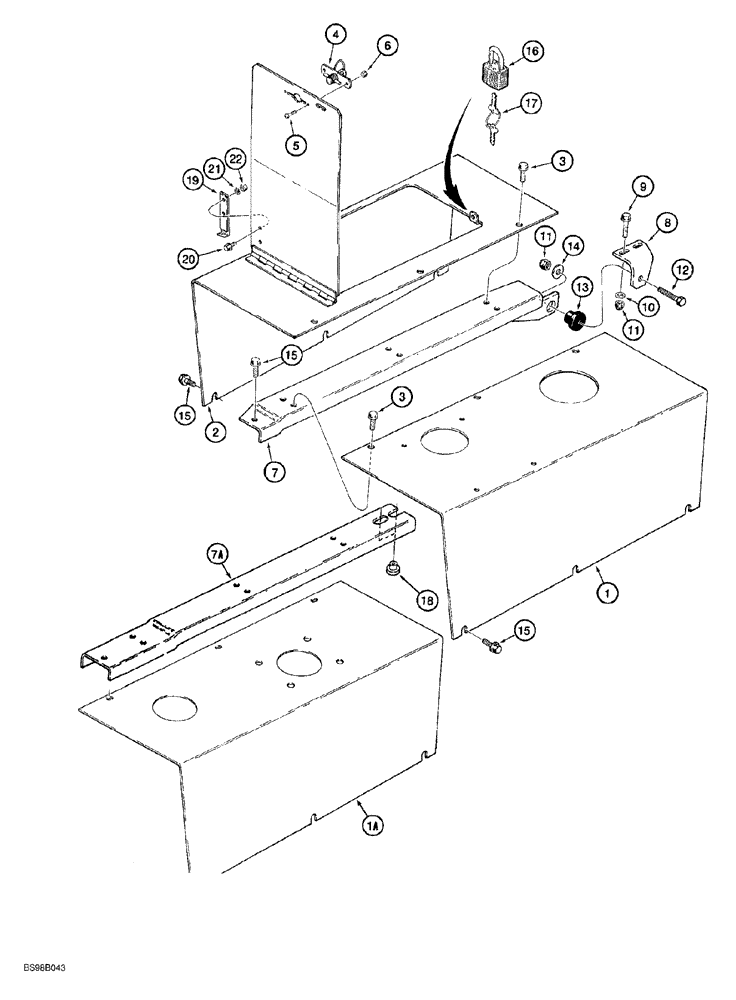

Запчасти Case 650G (9-28) - HOOD (09) - CHASSIS/ATTACHMENTS

1

R57491

HOOD

right hand, Prior to Crawler P.I.N. JJG0216449

1шт.

1a

301838A1

HOOD

right hand, Crawler P.I.N. JJG0216449 and after, if used

1шт.

1a

317094A1

HOOD

right hand, if used

1шт.

2

R51671

HOOD

left hand

1шт.

3

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

12шт.

4

L102515

LATCH

air cleaner access door, replaces R51672

1шт.

5

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

6

F45165

SPECIAL NUT,#10-24

hex, self locking, special, No. 10 NC

2шт.

7

R51760

SUPPORT

center, hood mounting, Prior to Crawler P.I.N. JJG0216449

1шт.

7a

281879A1

ANGLE

BRACKET center, hood mounting, Crawler P.I.N. JJG0216449 and after

1шт.

8

R53987

SUPPORT

angle, hood retainer, front, bolts to radiator top cover

1шт.

9

160-109

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

hex flange, 1/2 NC x 1-3/4 inch, grade 8

2шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

11

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

3шт.

12

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

13

L13142

BUSHING

MOUNT isolator, rubber

1шт.

14

D25022

WASHER

flat, special, 17/32 x 1-3/4 x 3/16 inch

1шт.

15

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

1шт.

16

D93753

PADLOCK

includes keys, Includes: Ref. 17

1шт.

17

R29555

KEY

for Master padlock only

2шт.

17

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

18

R54996

SPACER

center mounting holes, used with Ref. 7A

1шт.

19

R50492

SUPPORT

stop, air cleaner access door, used on models with a cab only

1шт.

20

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used on models with a cab only

2шт.

21

492-11031

LOCK WASHER,5/16"

Used on models with a cab only

2шт.

22

425-105

NUT,5/16"-18, G5

Used on models with a cab only

2шт.
