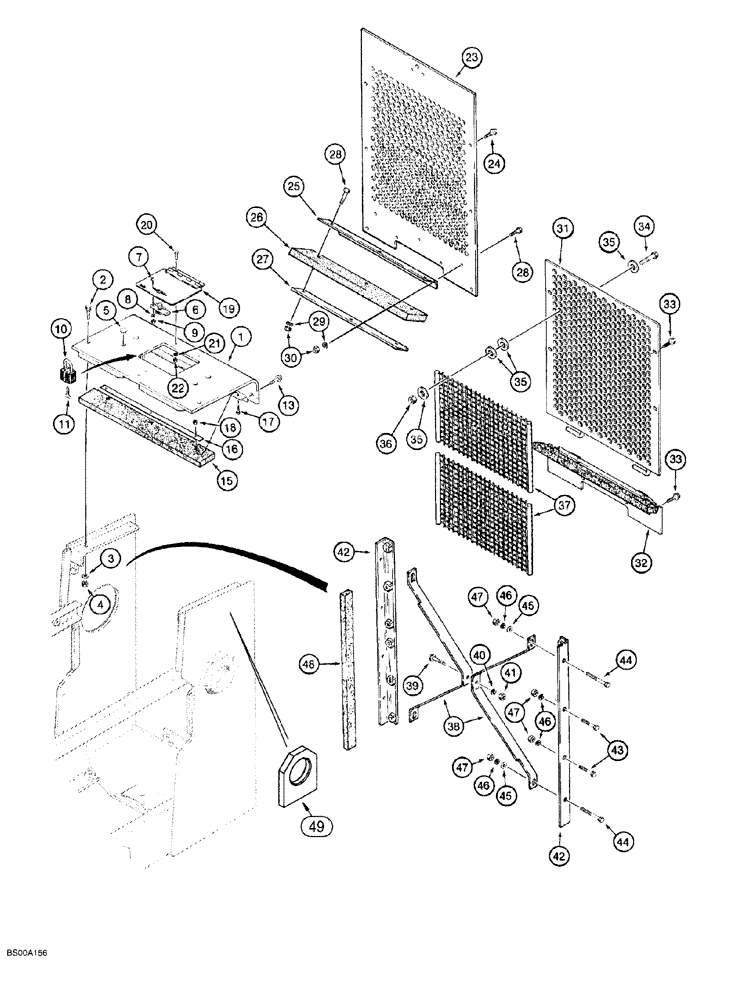

Запчасти Case 650G (9-24) - RADIATOR GUARDS, GRILLE, AND SCREENS (09) - CHASSIS/ATTACHMENTS

1

R58023

PLATE ASSY.

radiator access

1шт.

2

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

hex flange, 1/2 NC x 1-1/2 inch, grade 8

2шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

2шт.

5

353-409

PLUG,Dome, .812" hole, Nylon

button, used when ROPS brush guard is not used

4шт.

6

L102515

LATCH

radiator access door, replaces R51672

1шт.

7

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

8

492-11010

LOCK WASHER,#10

2шт.

9

225-14110

NUT,#10-24

2шт.

10

D93753

PADLOCK

includes keys, radiator access, Includes: Ref. 11

1шт.

11

R29555

KEY

for Master padlock only

2шт.

11

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

13

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

hex flange, 1/2 NC x 1-1/2 inch, grade 8

2шт.

15

R57429

PAD

90 (3-1/2) x 690 mm (27-5/32 inch), cut from R30870 bulk pad, see below, radiator access plate, attaches to plate with adhesive

1шт.

16

R50238

LARGE PLATE

PLATE, LARGE STRIP backing, upper radiator baffle pad

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

18

231-1445

NUT,5/16"-18, GB

3шт.

19

R58131

COVER

radiator access

1шт.

20

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

21

492-11025

LOCK WASHER,1/4"

2шт.

22

425-104

NUT,1/4"-20, Cl 5

2шт.

23

R58076

GRILLE

radiator, standard, brown, if used

1шт.

23

180334A1

GRILLE

radiator, standard, black, if used

1шт.

24

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

8шт.

25

R56959

SUPPORT

lower radiator baffle, used with R58076 grille

1шт.

25

180333A1

BAFFLE

BRACKET lower radiator baffle, used with 180334A1 grille

1шт.

26

R57429

PAD

90 (3-1/2) x 690 mm (27-5/32 inch), cut from R30870 bulk pad, see below, attaches to bracket with adhesive

1шт.

27

R50238

LARGE PLATE

PLATE, LARGE STRIP backing, lower radiator baffle pad

1шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

29

492-11031

LOCK WASHER,5/16"

6шт.

30

425-105

NUT,5/16"-18, G5

6шт.

31

R58077

GRILLE

radiator, heavy duty, brown, if used

1шт.

31

180335A1

GRILLE ASSY

radiator, heavy duty, black, if used

1шт.

32

R51622

LARGE PLATE

PLATE, LARGE mounting, grille, front

1шт.

33

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

8шт.

34

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

12шт.

35

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

flat, special, 3/8 inch

48шт.

36

231-1446

NUT,3/8" - 16, Gr 5

12шт.

37

R45984

SCREW

brush, bolts to inside of grille, brown, used with R58077 grille, if used

2шт.

37

185918A1

SCREEN

brush, bolts to inside of grille, black, used with 180335A1 grille, if used

2шт.

R30870

PAD

bulk, 1372 (54) x 1829 (72) x 25 mm (1 inch) thick

1шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, for attaching foam pads to metal surfaces, buy locally

1шт.

38

R48076

BRACE

radiator shroud, used on models with brown trim

2шт.

38

180327A1

BRACE

radiator shroud, used on models with gray trim

2шт.

39

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

hex flange, 1/2 NC x 1-1/2 inch, grade 8

1шт.

40

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

41

425-108

NUT,1/2" - 13, Gr 5

1шт.

42

R32443

SUPPORT

grille mounting, used on models with brown trim

2шт.

42

180326A1

ANGLE

BRACKET grille mounting, used on models with gray trim

2шт.

43

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.

44

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2 NC x 1-3/4 inch

4шт.

45

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

46

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

47

425-108

NUT,1/2" - 13, Gr 5

8шт.

48

R53624

PAD

non-recirculating, 2 x 31-5/16 inch, if used

2шт.

48

352485A1

SEAL

PAD non-recirculating, 1 x 31-1/2 inch, if used

2шт.

49

R40957

BRACKET lift, part is welded on

2шт.
