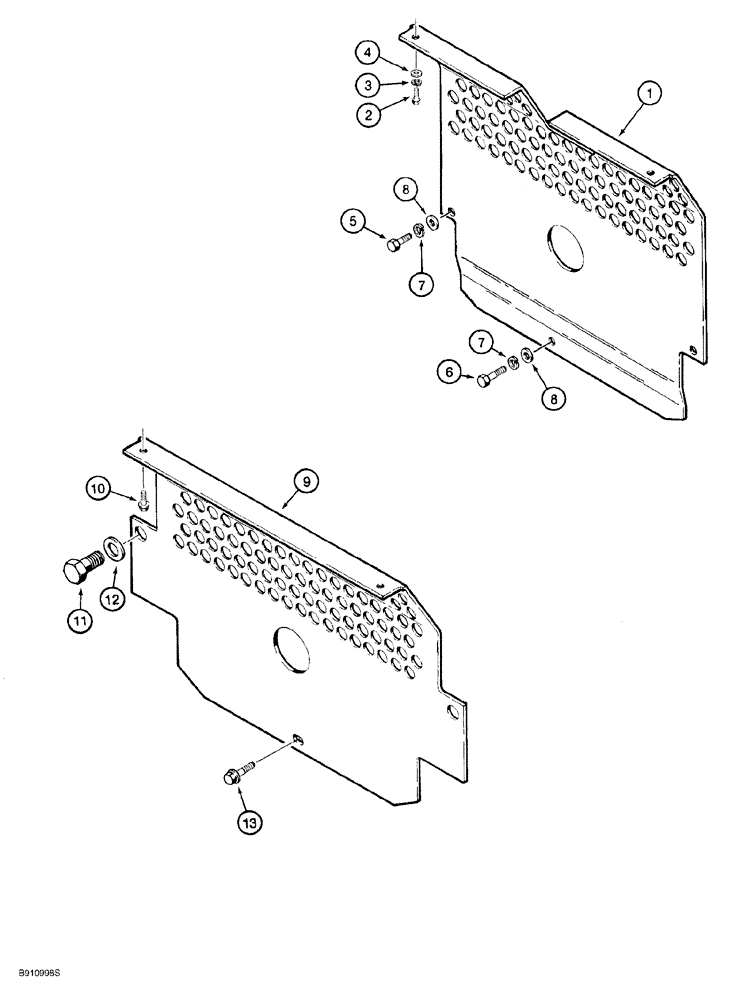

Запчасти Case 650G (9-18) - REAR TRANSMISSION GUARDS (09) - CHASSIS/ATTACHMENTS

1

R51764

GUARD

rear transmission, used on models with a ripper

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used on models with a ripper

2шт.

3

492-11038

LOCK WASHER,3/8"

Used on models with a ripper

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), Used on models with a ripper

2шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Used on models with a ripper

2шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Used on models with a ripper

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

Used on models with a ripper

3шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Used on models with a ripper

3шт.

9

R51773

GUARD

rear transmission, drawbar models with no rear equipment

1шт.

10

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8, drawbar models with no rear equipment

2шт.

11

413-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5

hex, 1 NC x 1-1/2 inch, drawbar models with no rear equipment

2шт.

12

495-11106

WASHER,1", SAE

(flat, 1-1/16 x 2 x 1/8"), Drawbar models with no rear equipment

2шт.

13

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

hex flange, 1/2 NC x 1-1/2 inch, grade 8, drawbar models with no rear equipment

1шт.
