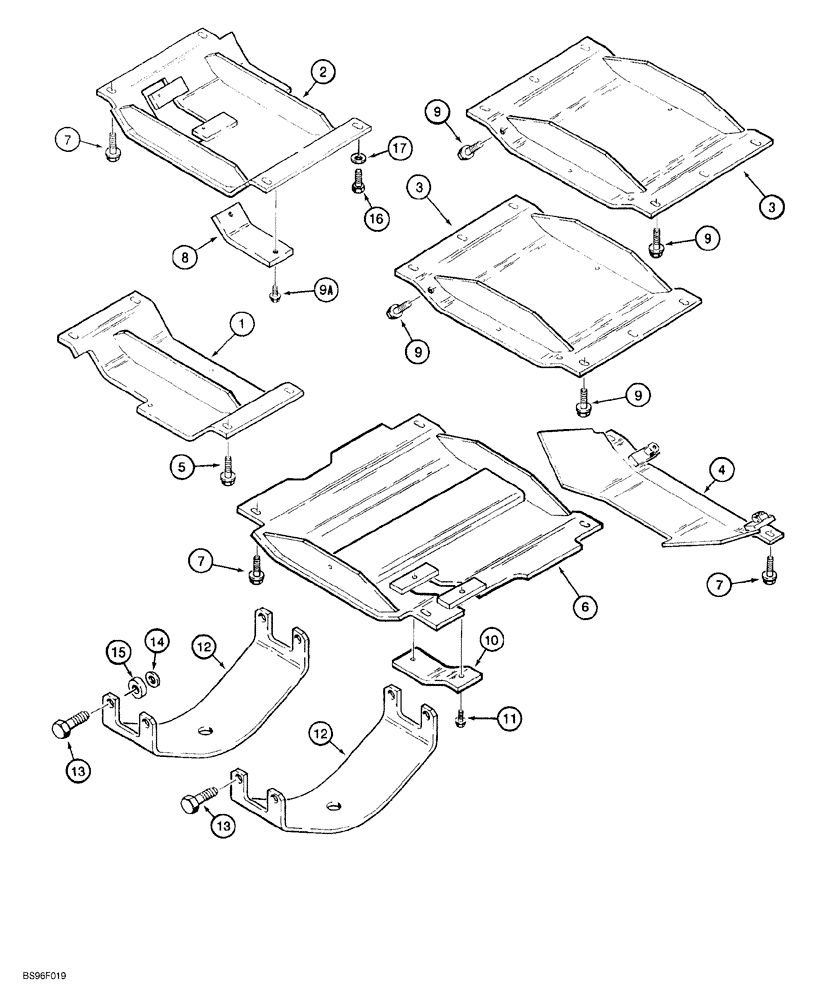

Запчасти Case 650G (9-16) - UNDERCARRIAGE GUARDS (09) - CHASSIS/ATTACHMENTS

1

R50231

RUNNER

engine oil pan, front

1шт.

2

R57020

GUARD

engine oil pan, rear

1шт.

3

128709A1

GUARD ASSY.

power train, front and rear

2шт.

4

R36235

GUARD

transmission, standard, if used

1шт.

5

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

hex flange, 5/8 NC x 2 inch, grade 8

4шт.

6

R46834

GUARD

transmission, heavy-duty, if used

1шт.

7

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

hex flange, 5/8 NC x 2 inch, grade 8

8шт.

8

R48345

COVER

engine oil drain

1шт.

9

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

hex flange, 5/8 NC x 2 inch, grade 8

10шт.

9a

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

10

R49641

COVER

transmission oil drain

1шт.

11

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

12

R57673

GUARD

final drive

2шт.

13

326-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

Use with blue Loctite No. 242, see below

8шт.

14

D30196

WASHER

flat, special, 1 inch

8шт.

15

R57674

SPACER

mounting, final drive guard

2-4шт.

16

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

2шт.

17

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

2шт.

B17577

LOCTITE

No. 242, blue, 6 ml tube

1шт.
