(9-14) - SEAT AND TANK FRAME

Запчасти Case 650G (9-14) - SEAT AND TANK FRAME (09) - CHASSIS/ATTACHMENTS

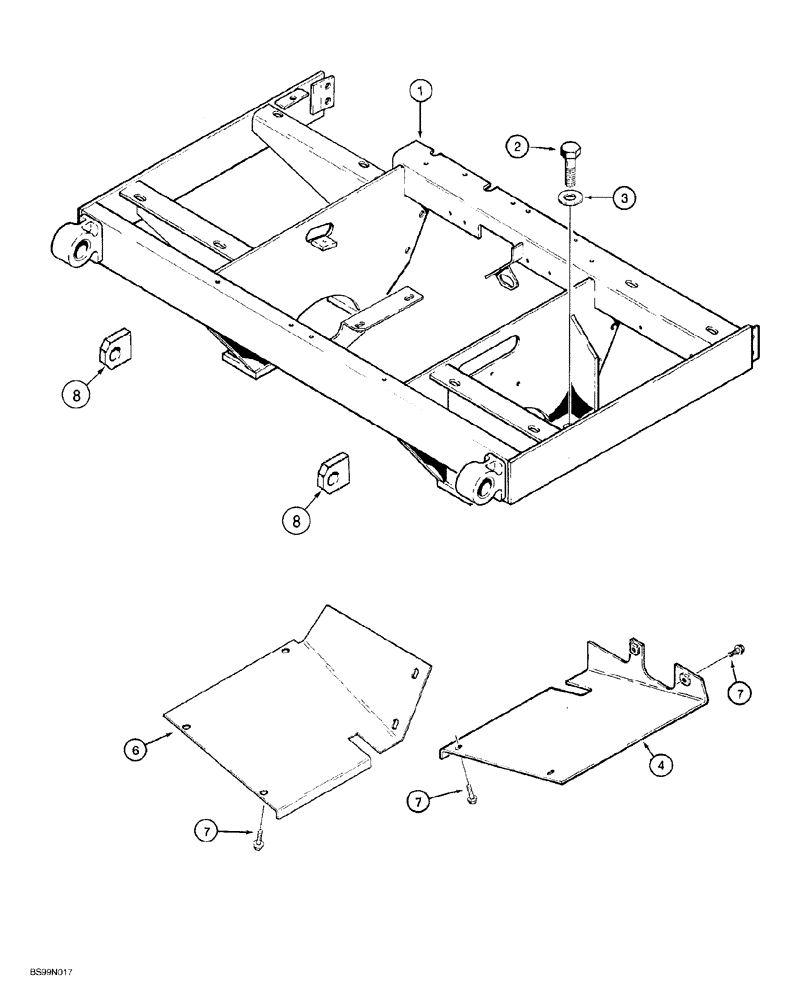

Схема запчастей Case 650G - (9-14) - SEAT AND TANK FRAME (09) - CHASSIS/ATTACHMENTS
8
4
7
2
7
1
7
6
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R57836

FRAME ASSY

seat and tank

1шт.

2

113-941

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

4шт.

3

D30196

WASHER

flat, special, 1 inch

4шт.

4

R58110

GUARD ASSY.

hydraulic lines, right hand

1шт.

6

R58113

GUARD

hydraulic lines, left hand

1шт.

7

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

9шт.

8

R40957

BRACKET lift, part is welded on

2шт.

Выбрано товаров: 7
