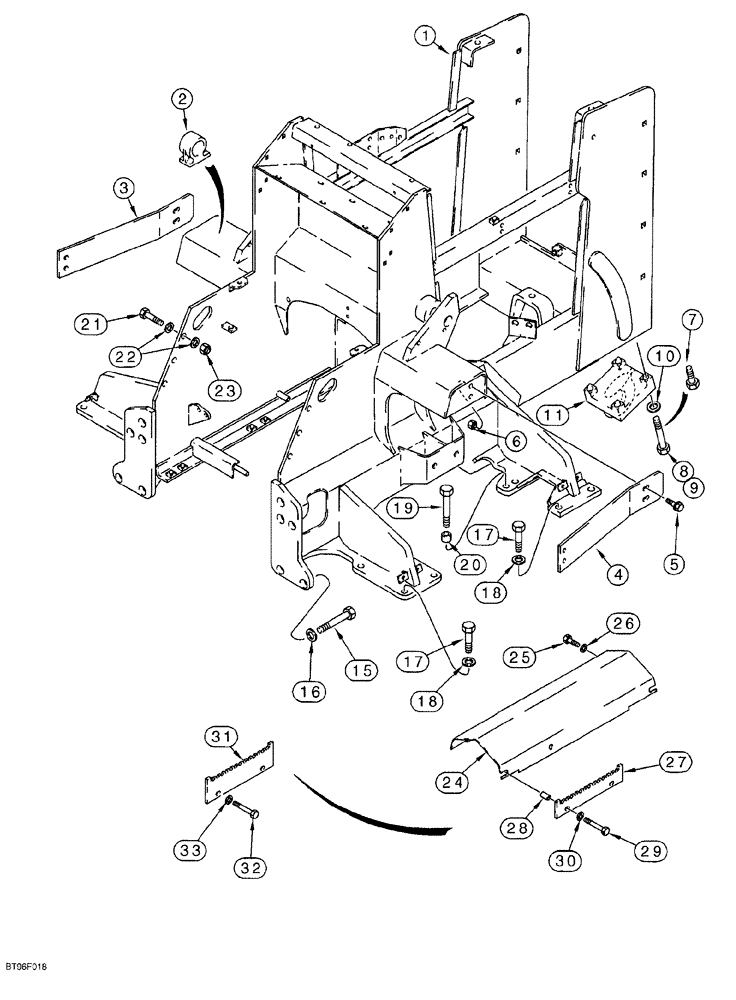

Запчасти Case 650G (9-12) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

116449A3

FRAME ASSY

main, 1524 mm (60 inch) gauge models, replaces 116449A2 frame assembly, no longer available, order 116777A1 kit

1шт.

2

R39922

BASE

MOUNT, ROPS mounting, welded on

2шт.

3

R57977

PLATE

left hand, cab models only

1шт.

4

R57978

PLATE

right hand, cab models only

1шт.

5

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

hex flange, 1/2 NC x 1-1/2 inch, grade 8, cab models only

8шт.

6

425-108

NUT,1/2" - 13, Gr 5

Cab models only

8шт.

7

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

hex, 3/4 NC x 1-1/4 inch, used on models without Ref. 11 pull hook

4шт.

8

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Used on models with Ref. 11 pull hook but without front counterweight shown on Fig. 9-10

4шт.

9

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

Used on models with Ref. 11 pull hook and with front counterweight shown on Fig. 9-10

4шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch, if used

4шт.

11

71671

PLATE ASSY.

HOOK pull, if used

1шт.

15

113-941

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

10шт.

16

D30196

WASHER

flat, special, 1 inch

10шт.

17

113-2714

LOCK BOLT,Locking, 3/4"-10 x 2", G8

12шт.

18

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

12шт.

19

113-2719

LOCK BOLT,Locking, 3/4"-10 x 3", G8

8шт.

20

R30398

SPACER

bolt

8шт.

21

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

22

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

12шт.

23

425-1010

NUT,5/8"-11, G5

6шт.

24

123529A1

COVER ASSY

recoil housing

2шт.

25

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

27

123526A1

PLATE

step, no longer used, order Ref. 31, 225590A1 plate

2шт.

28

D33403

BUSHING

step plate mounting, used with Ref. 27, 123526A1 plate only

6шт.

29

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch, used to mount Ref. 27, 123526A1 plate

6шт.

30

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Used to mount Ref. 27, 123526A1 plate

6шт.

31

225590A1

PLATE

step

2шт.

32

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Used to mount Ref. 31, 225590A1 plate

4шт.

33

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Used to mount Ref. 31, 225590A1 plate

4шт.
