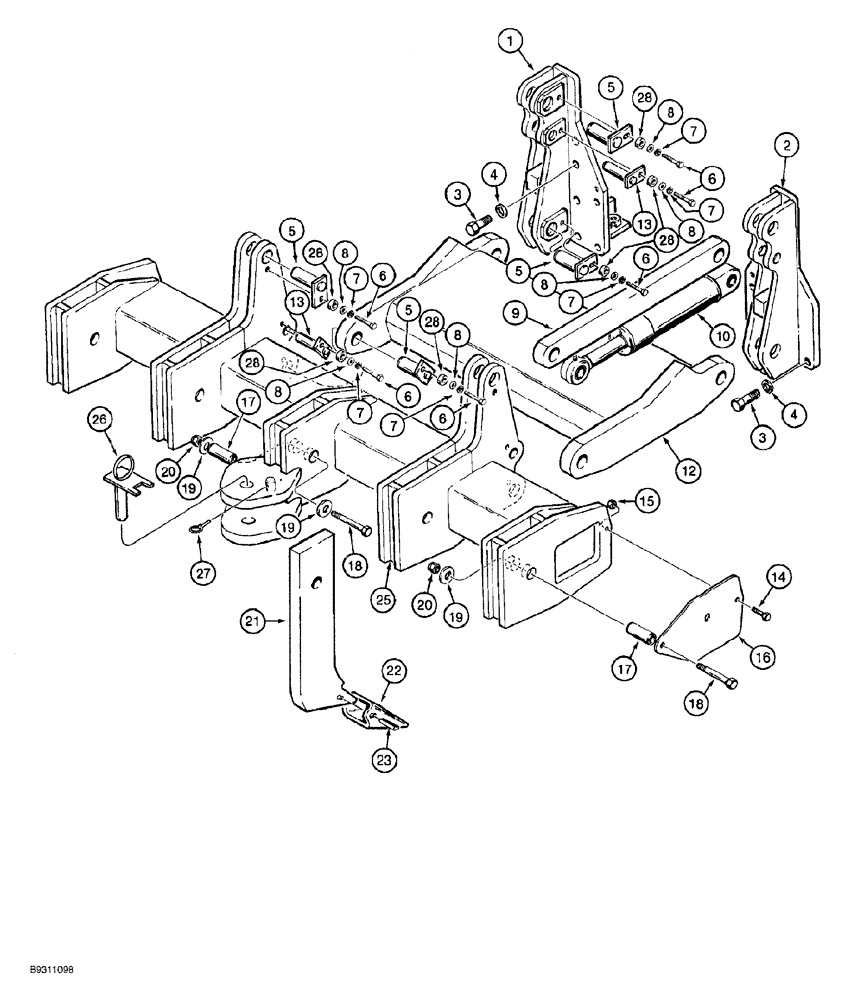

Запчасти Case 650G (9-08) - RIPPER (09) - CHASSIS/ATTACHMENTS

1

R38874

SUPPORT

mounting, left hand

1шт.

2

R38875

SUPPORT

mounting, right hand

1шт.

3

326-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

10шт.

4

D30196

WASHER

flat, special, 1 inch

10шт.

5

R43990

PIN

mounting, upper arms and lower frame

8шт.

6

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

12шт.

7

492-11062

BEARING WASHER,5/8"

12шт.

8

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch, replaces 95-11066

12шт.

9

R33779

ARM

upper

2шт.

10

G101214

CYLINDER ASSY.

83 (3-1/4) ID x 214 mm (8-13/32 inch) stroke, ripper, right hand, parts list Fig. 8-30

1шт.

11

G101215

CYLINDER ASSY.

83 (3-1/4) ID x 214 mm (8-13/32 inch) stroke, ripper, left hand, parts list Fig. 8-30, not shown

1шт.

12

197899A1

ARM

FRAME lower, replaces R38877

1шт.

13

R43991

LARGE PIN

PIN, LARGE mounting, ripper cylinder

4шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

15

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

2шт.

16

R35460

LARGE PLATE

PLATE, LARGE COVER end

2шт.

17

R33773

PIN

drilled, shank mounting

3шт.

18

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

3шт.

19

95-31069

WASHER,0.69" ID x 2.38" OD x 0.17" Thk

flat, 11/16 x 2-3/8 x 5/32 inch

4шт.

20

231-14410

NUT,5/8"-11, GB

3шт.

R46215

SHANK ASSEMBLY, tooth, ripper, no longer available, order components and 8-79763 instruction sheet, Includes: Ref. 21 - 23

3шт.

21

122236A1

SHANK, BUCKET TOOTH

1шт.

22

R55608

TOOTH ripper

1шт.

23

D39448

PIN

flex, replaces 258720A1

1шт.

258722A1

SHANK ASSEMBLY, tooth, ripper, no longer available, order components and 8-79763 instruction sheet, Includes: Ref. 21 - 23

3шт.

21

258723A1

SHANK

ripper

1шт.

22

258719A1

TOOTH

ripper

1шт.

23

D39448

PIN

flex, replaces 258720A1

1шт.

25

R51734

BAR ASSY.

tool, includes drawbar

1шт.

26

R33340

PIN

drawbar

1шт.

27

A30338

PIN

lock

1шт.

28

R43759

WASHER

SPACER pin mounting

12шт.
