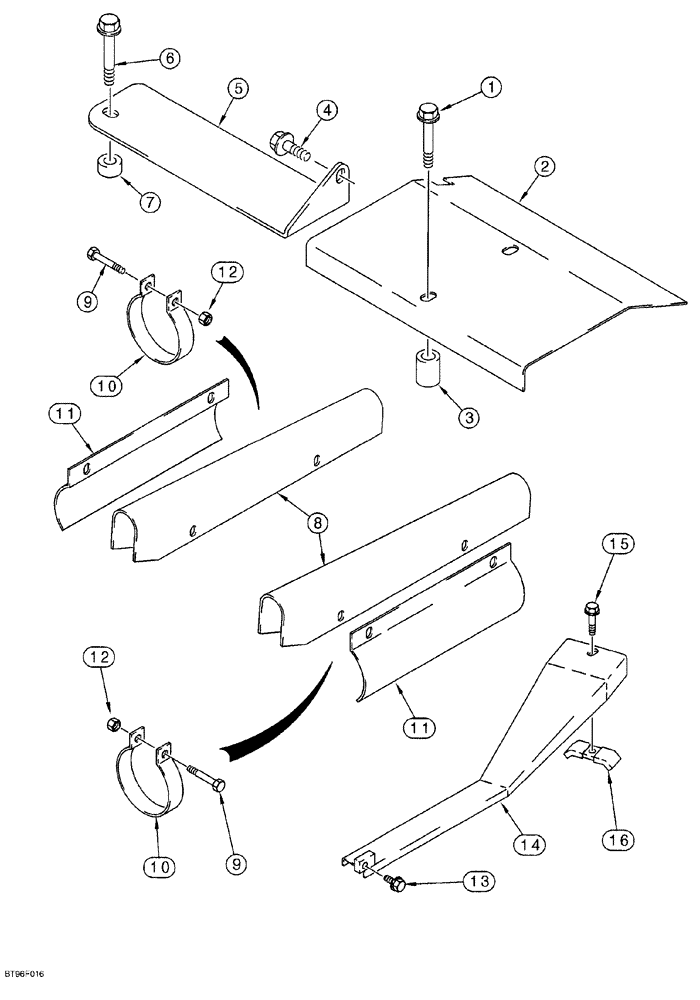

Запчасти Case 650G (9-06) - DOZER HYDRAULIC GUARDS (09) - CHASSIS/ATTACHMENTS

1

360-1040

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

hex flange, 5/8 NC x 2-1/2 inch, grade 8

2шт.

2

120898A1

GUARD

slider block

1шт.

3

120929A1

SPACER

guard, slider block

2шт.

4

360-1020

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

hex flange, 5/8 NC x 1-1/4 inch, grade 8

1шт.

5

121046A1

GUARD

tilt cylinder

1шт.

6

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

hex flange, 5/8 NC x 2 inch, grade 8

1шт.

7

123577A1

SPACER

guard mounting, tilt cylinder

1шт.

8

123602A1

GUARD

hose, angle cylinder

2шт.

9

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

10

132115A1

CLAMP

guard retaining, at angle cylinder

4шт.

11

123603A1

GUARD

side, angle cylinder

2шт.

12

231-1446

NUT,3/8" - 16, Gr 5

4шт.

13

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

1шт.

14

124806A1

GUARD ASSY.

tube, tilt cylinder

1шт.

15

160-104

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

hex flange, 1/2 NC x 1 -1 /4 inch

1шт.

16

D40236

CLAMP

hose, tilt cylinder

1шт.
