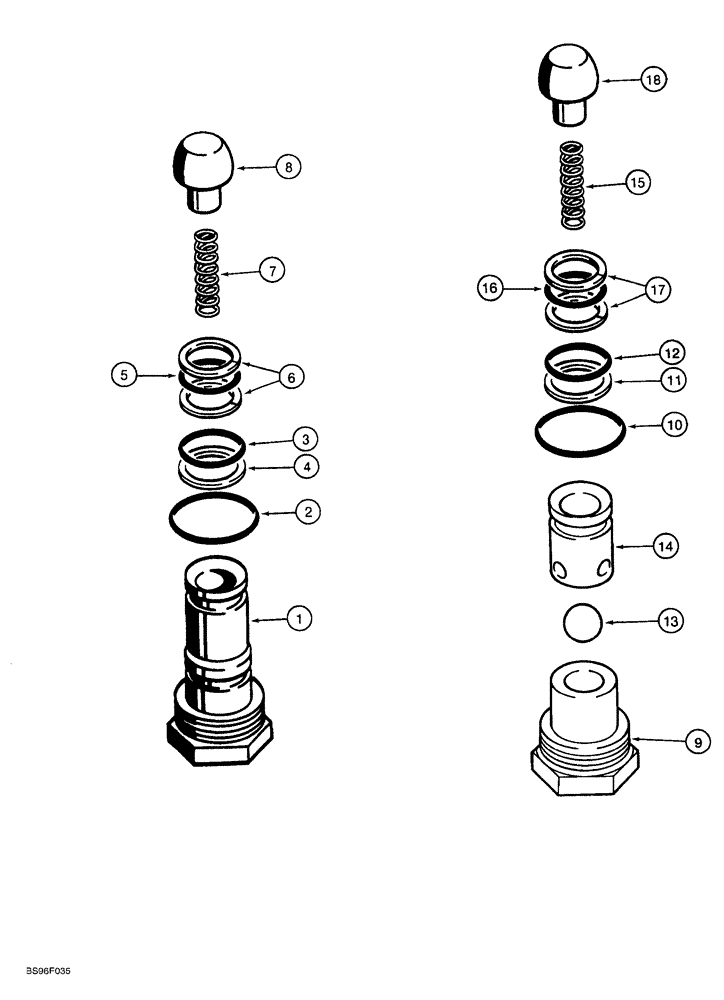

Запчасти Case 650G (8-48) - CHECK VALVE ASSEMBLIES (08) - HYDRAULICS

D87307

VALVE

ASSEMBLY, load check, lift, tilt and angle sections, Includes: Ref. 1 - 8

6шт.

1

NSS

NOT SOLD SEPARAT

BODY load check valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Load check valve

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center, load check valve

1шт.

4

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup, center O-ring, load check valve

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Inner, Load check valve

1шт.

6

D88725

BACK-UP RING

inner O-ring, load check valve

2шт.

7

H268730

SPRING

poppet, load check valve

1шт.

8

D28576

VALVE POPPET

load check, load check valve

1шт.

122119A1

KIT

ASSY, anti-cavitation, check, lift section lower port, used on models w/optional field installed 235418A1 low pressure regeneration kit; refer to Fig. 8-8 or 8-9A for hyd. line routing to determine if unit is equipped w/235418A1 kit, Includes Ref. 9 - 18

1шт.

9

NSS

NOT SOLD SEPARAT

BODY anti-cavitation check valve, models with low pressure regeneration kit

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Anti-cavitation check valve, models with low pressure regeneration kit

1шт.

11

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup, center O-ring, anti-cavitation check valve, models with low pressure regeneration kit

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center, anti-cavitation check valve, models with low pressure regeneration kit

1шт.

13

211-1014

BALL,7/16" Dia

chrome alloy steel, grade 24, check, anti-cavitation check valve, models with low pressure regeneration kit

1шт.

14

N7902

RETAINER

ball, anti-cavitation check valve, models with low pressure regeneration kit

1шт.

15

H268730

SPRING

poppet, anti-cavitation check valve, models with low pressure regeneration kit

1шт.

16

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Inner, Anti-cavitation check valve, Models with low pressure regeneration kit

1шт.

17

D88725

BACK-UP RING

inner O-ring, anti-cavitation check valve, models with low pressure regeneration kit

2шт.

18

D28576

VALVE POPPET

load check, anti-cavitation check valve, models with low pressure regeneration kit

1шт.
