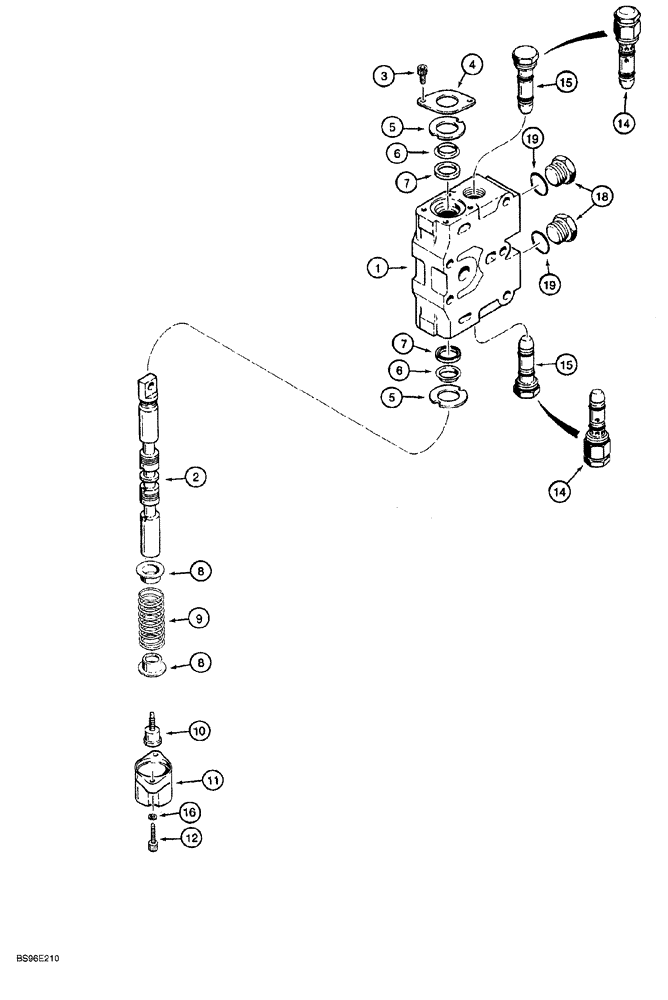

Запчасти Case 650G (8-46) - TILT, ANGLE AND RIPPER SECTIONS (08) - HYDRAULICS

136662A1

VALVE

SECTION ASSEMBLY, ripper, if used, Includes: Ref. 1 - 16

1шт.

136668A1

VALVE

SECTION ASSEMBLY, tilt and angle, if used, Includes: Ref. 1 - 16

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL section

1шт.

3

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

hex socket, 1/4 NC x 1/2 inch

2шт.

4

N8194

LARGE PLATE

PLATE, LARGE retainer, outer

1шт.

5

136898A1

RETAINER

spool seal

2шт.

6

136900A1

WIPER SEAL

WIPER spool

2шт.

7

136902A1

SEAL

lip, spool

2шт.

8

H267591

SPRING SEAT

2шт.

9

100854A1

SPRING

centering, spool

1шт.

10

N14593

STEP BOLT

BOLT special

1шт.

11

S301092

FLANGE COVER CAP

spool, lower

1шт.

12

61-32514

HEX SOC SCREW,1/4"-20 x 7/8"

hex socket, 1/4 NC x 7/8 inch

2шт.

14

N8950

VALVE

ASSEMBLY circuit relief, ripper section only, parts list Fig. 8-50

2шт.

15

D87307

VALVE

ASSEMBLY load check, tilt or angle sections only, parts list Fig. 8-48

2шт.

16

492-11025

LOCK WASHER,1/4"

2шт.

18

86512512

PLUG,7/8" - 14 ORB

To convert four spool valve to three spool valve, if used, Incl. Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
