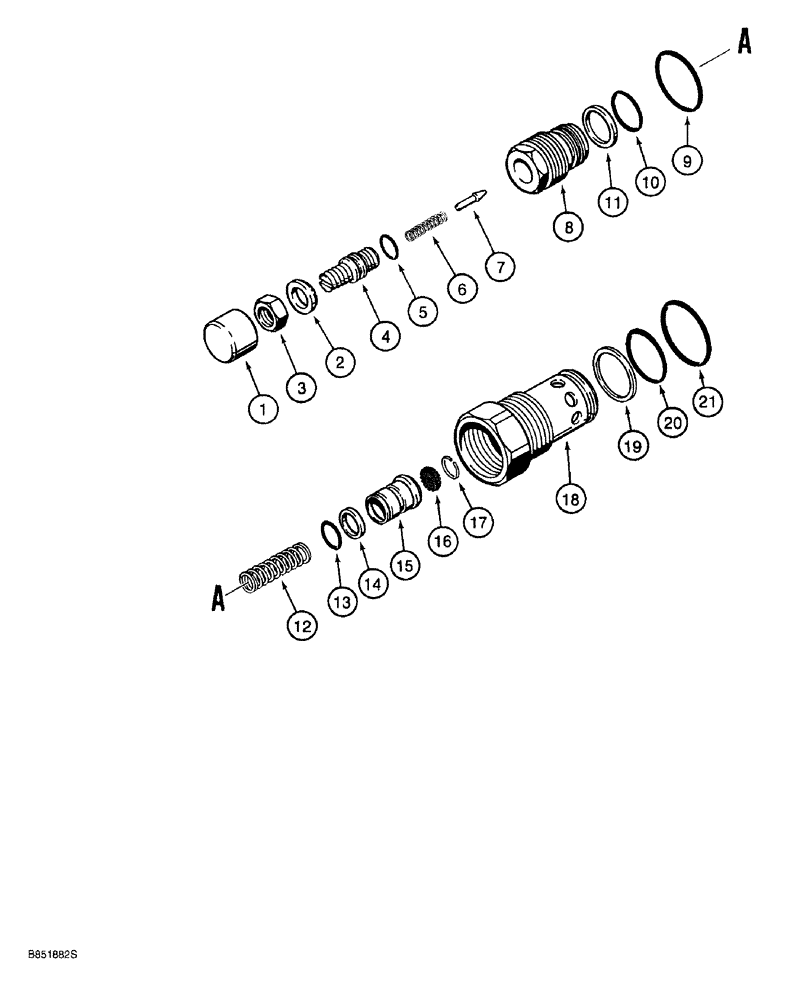

Запчасти Case 650G (8-42) - MAIN RELIEF VALVE (08) - HYDRAULICS

N8191

VALVE

ASSEMBLY, main relief, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

COVER tamper proof

1шт.

2

N9475

WASHER

special, if used

1шт.

2

1978295C1

WASHER

special, if used

1шт.

3

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

4

N9463

ADJUSTMENT SCREW

adjusting

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Part of seal kit 106721A1

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

6

N9465

SPRING

poppet

1шт.

7

N9464

PLUNGER

POPPET relief valve

1шт.

8

N9769

BODY

pilot plunger

1шт.

9

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

Pilot body, large

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

10

A55911

O-RING,0.807" ID

pilot body, small

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

11

N9768

BACK-UP RING,0.831mm ID x 0.939mm OD x 0.052mm

RING backup, small O-ring

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

12

S300250

SPRING

poppet

1шт.

13

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

Poppet

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

14

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

backup, poppet O-ring

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

15

S300249

VALVE POPPET

relief, replaces N9466, if used

1шт.

16

S300248

VALVE POPPET

SCREEN, if used

1шт.

17

N9473

RING, SNAP

RING SNAP retaining, screen, if used

1шт.

18

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

19

N8197

O-RING,1.006" ID x 1.116" OD x 0.055"

RING backup, small O-ring, valve body

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

20

238-6022

O-RING,0.07" Thk x 0.989" ID, -22, Cl 6, 90 Duro

Valve body

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

21

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

Valve body

1шт.

Part of Seal Kit, P/N 106721A1

1шт.

106721A1

SEAL KIT

KIT includes Refs. 5, 9, 10, 11, 13, 14, 19, 20, and 21

1шт.
