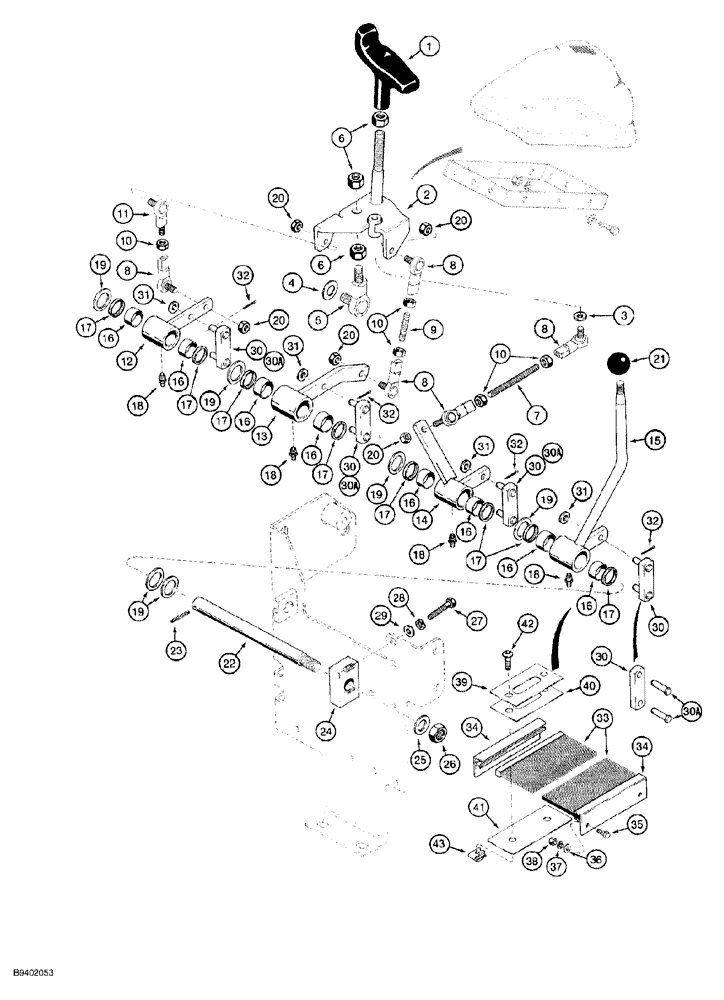

Запчасти Case 650G (8-36) - EQUIPMENT CONTROL LEVERS AND LINKAGE - TWO CONTROL LEVERS - FOUR SPOOL VALVE (08) - HYDRAULICS

130558A1

VALVE

ASSEMBLY equipment control, four spool, part list Fig. 8-40, for mounting see Fig. 8-32, if used

1шт.

336348A1

VALVE

ASSEMBLY equipment control, four spool, parts list Fig. 8-41A, for mounting see Fig. 8-32, if used

1шт.

1

R58490

HANDLE

equipment control, T-grip

1шт.

2

106400A1

HANDLED SHAFT

LEVER equipment control, lift, tilt and angle, see Fig. 8-35A for boot

1шт.

3

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

5

A55558

BALL JOINT

rod end, replaces H434450

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

3шт.

7

R58258

ROD

threaded, 5/16 NF x 3-3/4 inch

1шт.

8

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT, female, 5/16 inch NF

5шт.

9

R56432

ROD,THREADED

THREADED ROD 5/16 NF x 1-1/2 inch

1шт.

10

425-115

NUT,5/16"-24, G5

5шт.

11

R47939

ROD

JOINT ball, male, 5/16 inch NF

1шт.

12

R58255

ROCKER

LEVER ASSEMBLY lift, spool to shaft, includes Ref. 16-18, Includes: Ref. 16 - 18

1шт.

13

R58252

ROCKER

LEVER ASSEMBLY tilt, spool to shaft, includes Ref. 16-18, Includes: Ref. 16 - 18

1шт.

14

R58246

ROCKER

ASSEMBLY angle, spool to shaft, includes Ref. 16-18, Includes: Ref. 16 - 18

1шт.

15

R58249

LEVER

ASSEMBLY auxiliary control, includes Ref. 16-18, Includes: Ref. 16 - 18

1шт.

16

L31166

NEEDLE BEARING

roller

2шт.

17

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

19

R58209

SPACER

nylon, 19 (49/64) x 29 (1-1/8) x 3 mm (1/8 inch) thick, if used

6шт.

19

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

wear, nylon, used as a spacer, 20 (51/64) x 35 (1-3/8) x 16 mm (1/16 inch) thick, if used

10шт.

20

232-4605

LOCK NUT,5/16"-24, GC

5шт.

21

70213

KNOB

control lever, auxiliary

1шт.

22

R58256

SHAFT

control linkage

1шт.

23

438-11224

LOCK PIN,3/16" x 1 1/2", Slotted

3/16" x 1 1/2", Slotted

1шт.

24

R58257

BLOCK

shaft mounting

1шт.

25

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

26

231-24410

LOCK NUT,5/8"-18, GB

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

30

139345A1

POWER ARM

LINK control valve spools to levers, Includes: Ref. 30A

4шт.

30a

139219A1

CLEVIS

PIN

2шт.

31

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

32

432-612

COTTER PIN,3/32" x 3/4"

8шт.

33

1999590C1

SEAL

brush, auxiliary control lever, cab models

2шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

34

1999591C1

RETAINER

brush seal, cab models

2шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

35

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

4шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

36

495-31022

WASHER,#10

4шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

37

492-11010

LOCK WASHER,#10

4шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

38

225-14110

NUT,#10-24

4шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

1999837C1

COVER ASSY

auxiliary control lever, cab models, Includes: Ref. 39 and 40

1шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

39

1999587C1

COVER

slotted, upper, auxiliary control lever, no longer available, order 1999837C1 assembly

1шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

40

1999838C1

SEAL

cover, slotted, upper

1шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

41

1999588C1

RETAINER

cover, lower, cab models

1шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

42

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

hex socket button head, 5/16 NC x 3/4 inch

2шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

43

131-369

LOCK NUT,7/8"-14, GA

hex, self locking, 7/8 inch NF

2шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.
