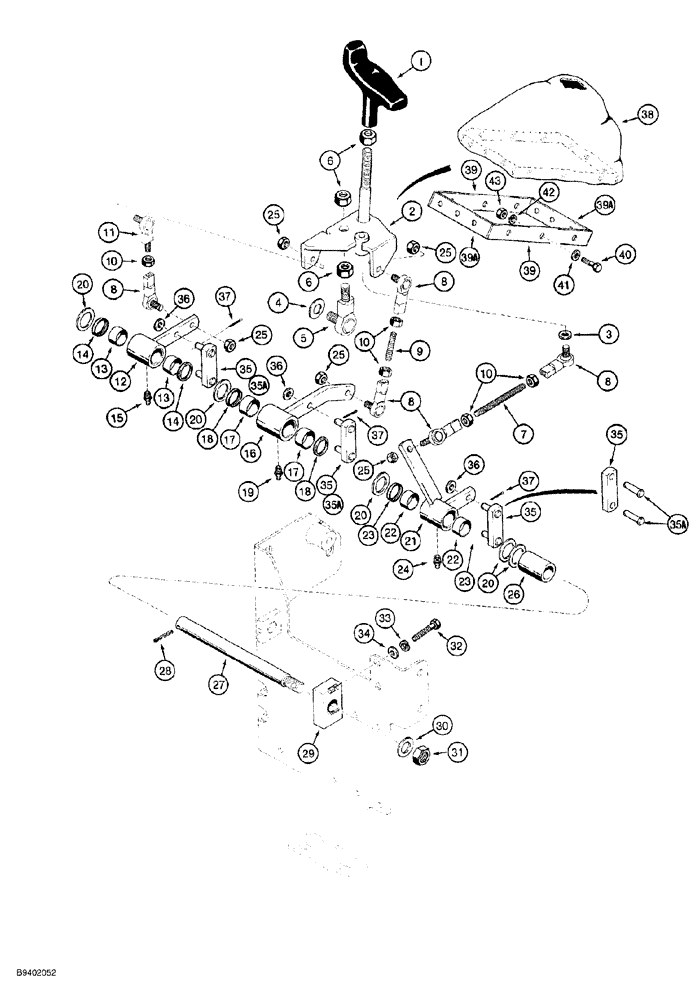

Запчасти Case 650G (8-34) - EQUIPMENT CONTROL LEVER AND LINKAGE - ONE CONTROL LEVER - THREE SPOOL VALVE (08) - HYDRAULICS

130557A1

VALVE

ASSEMBLY equipment control, three spool, part list Fig. 8-38, for mounting see Fig. 8-32, no longer available, order 336347A1

1шт.

336347A1

VALVE

ASSEMBLY equipment control, three spool, parts list Fig. 8-39A, for mounting see Fig. 8-32, replaces 130557A1

1шт.

1

R58490

HANDLE

equipment control, T-grip

1шт.

2

106400A1

HANDLED SHAFT

LEVER equipment control, lift, tilt, and angle

1шт.

3

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

5

A55558

BALL JOINT

rod end, replaces H434450

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

3шт.

7

R58258

ROD

threaded, 5/16 NF x 3-3/4 inch

1шт.

8

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT, female, 5/16 inch NF

5шт.

9

R56432

ROD,THREADED

THREADED ROD 5/16 NF x 1-1/2 inch

1шт.

10

425-115

NUT,5/16"-24, G5

5шт.

11

R47939

ROD

JOINTball, male, 5/16 inch NF

1шт.

R58255

ROCKER

LEVER ASSEMBLY lift, spool to shaft, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

LEVER lift

1шт.

13

L31166

NEEDLE BEARING

roller

2шт.

14

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

R58252

ROCKER

LEVER ASSEMBLY tilt, spool to shaft, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

LEVER tilt

1шт.

17

L31166

NEEDLE BEARING

roller

2шт.

18

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

20

R58209

SPACER

nylon, 19 (49/64) x 29 (1-1/8) x 3mm (1/8 inch) thick, if used

5шт.

20

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

wear, nylon, used as a spacer, 20 (51/64) x 35 (1-3/8) x16 mm (1/16 inch) thick, if used

8шт.

R58246

ROCKER

LEVER ASSEMBLY angle, spool to shaft, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

LEVER angle

1шт.

22

L31166

NEEDLE BEARING

roller

2шт.

23

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

25

232-4605

LOCK NUT,5/16"-24, GC

5шт.

26

R58344

SPACER

shaft

1шт.

27

R58256

SHAFT

control linkage

1шт.

28

438-11224

LOCK PIN,3/16" x 1 1/2", Slotted

3/16" x 1 1/2", Slotted

1шт.

29

R58257

BLOCK

shaft mounting

1шт.

30

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

31

231-24410

LOCK NUT,5/8"-18, GB

1шт.

32

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

35

139345A1

POWER ARM

LINK control valve spools to levers, Includes: Ref. 35A

3шт.

35a

139219A1

CLEVIS

PIN

2шт.

36

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

37

432-612

COTTER PIN,3/32" x 3/4"

6шт.

38

1999592C1

BOOT

vinyl, control lever, cab models

1шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

39

1999828C1

RETAINER

long, boot, cab models

2шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

39a

1999827C1

RETAINER

short, boot, cab models

2шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

40

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

12шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

41

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

12шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

42

492-11025

LOCK WASHER,1/4"

12шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.

43

425-104

NUT,1/4"-20, Cl 5

12шт.

Included with 1999551C1 hydraulic reservoir upper cover, see Fig. 8-4 for cover

1шт.
