Артикул
Название
Примечание
Количество

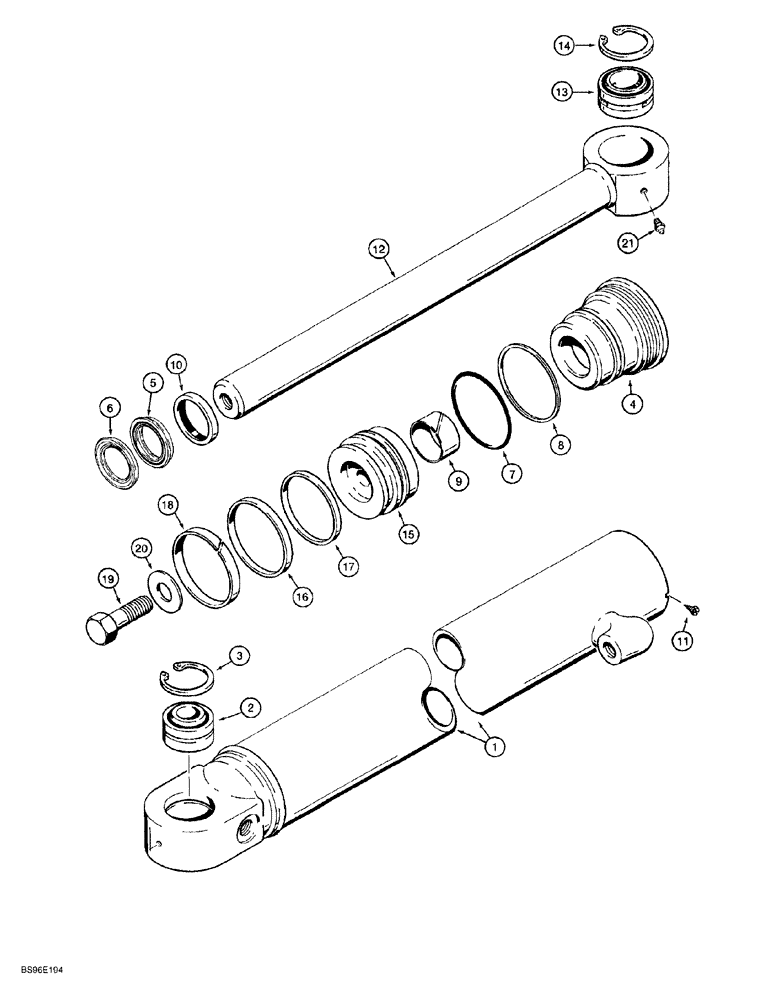

116969A1
CYLINDER ASSY.
89 (3-1/2) ID x 396 mm (15-19/32 inch) stroke, angle, no longer available, order 190595A2 cylinder on Fig. 8-29A, Includes: Ref. 1 - 21
2шт.
84135900R
REMAN-HYD CYLINDER
Reman for New PN 116969A1
2шт.
84135900C
CORE-HYD CYLINDER
Return Number
2шт.
1
116968A1
HYD TUBE
cylinder, no longer available, order 355751A1 tube on Fig. 8-29A, Includes: Ref. 2 and 3
1шт.
2
613524C91
SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W
self aligning
1шт.
3
103-21281
SNAP RING,66.92mm ID x 2.36mm W, Int
2шт.
NSS
NOT SOLD SEPARAT
GLAND ASSEMBLY cylinder, Includes: Ref. 4 - 10
1шт.
4
G110108
GLAND
cylinder, no longer available, order 355529A1
1шт.
4
355529A1
GLAND
cylinder, replaces G110108
1шт.
Part of Seal Kit, P/N 1543266C1
1шт.
5
1542999C1
SEAL
rod, NSS, order 1543266C1 kit, see below
1шт.
6
1542998C1
SEALING RING
buffer, NSS, order 1543266C1 kit, see below
1шт.
Part of Seal Kit, P/N 1543266C1
1шт.
8
D38858
BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk
RING backup
1шт.
Part of Seal Kit, P/N 1543266C1
1шт.
9
G102425
BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk
center
1шт.
Part of Seal Kit, P/N 1543266C1
1шт.
10
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
WIPER dust
1шт.
Part of Seal Kit, P/N 1543266C1
1шт.
11
276-2446
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
1шт.
12
116965A2
PISTON ROD
45 mm (1-3/4 inch) diameter, replaces 116965A1, Includes: Ref. 13 and 14
1шт.
13
613524C91
SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W
self aligning
1шт.
14
103-21281
SNAP RING,66.92mm ID x 2.36mm W, Int
2шт.
15
1986982C1
PISTON
cylinder
1шт.
16
G102286
SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk
Piston
1шт.
Part of Seal Kit, P/N 1543266C1
1шт.
17
G100710
RING,Square, 5.28mm Thk x 75.31mm ID
backup
1шт.
Part of Seal Kit, P/N 1543266C1
1шт.
18
G100711
SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk
1шт.
Part of Seal Kit, P/N 1543266C1
1шт.
19
25974R1
BOLT,Hex, 1" - 14 x 2 1/2", Gr 8
1шт.
20
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
flat, special
1шт.
21
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
1543266C1
SEAL KIT
seal, includes Refs. 7, 8, 9, 10, 16, 17, 18, and part number 1542875C1 and an instruction sheet
1шт.
Выбрано товаров: 36
