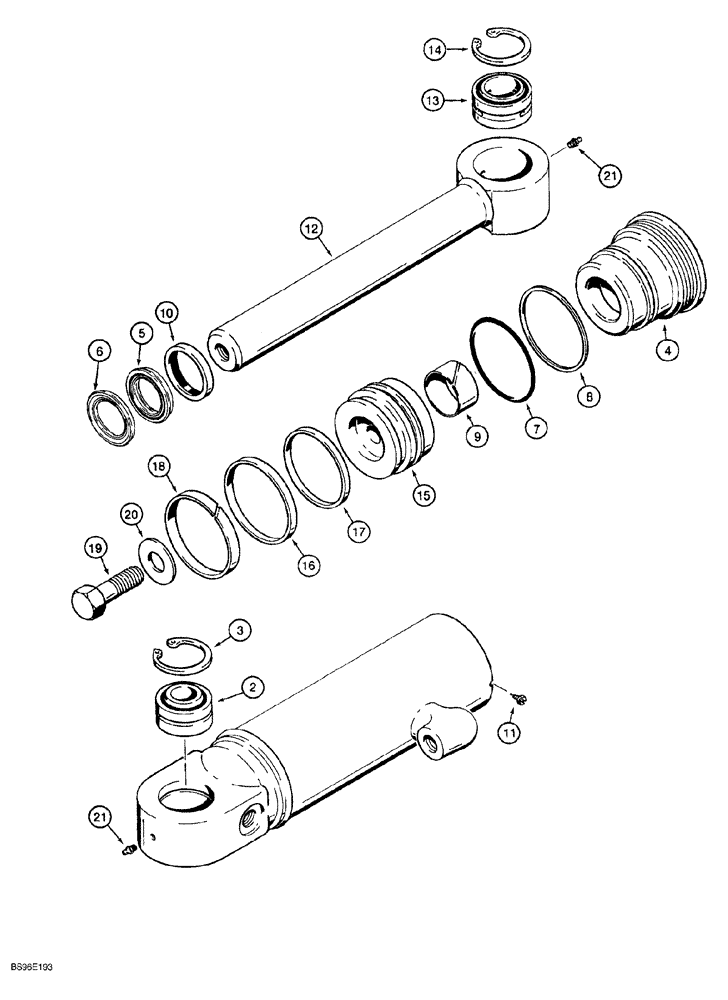

Запчасти Case 650G (8-26) - 117511A1 TILT CYLINDER (08) - HYDRAULICS

117511A1

CYLINDER ASSY.

89 (3-1/2) ID x 148 mm (5-7/8 inch) stroke, tilt, Includes: Ref. 1 - 21

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

412357A1R

REMAN-HYD CYLINDER

650G (4/94-), Reman for New PN 117511A1

1шт.

412357A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

117510A1

TUBE,86.77 mm ID, 380.9 mm Length

cylinder, Includes: Ref. 2 and 3

1шт.

2

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

self aligning

1шт.

3

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY cylinder, part of seal kit 1543266C1, Includes: Ref. 4 - 10

1шт.

4

G110108

GLAND

cylinder, no longer available, order 355529A1

1шт.

4

355529A1

GLAND

cylinder, replaces G110108

1шт.

1542875C1

SEAL KIT,44.4mm Rod

NSS, Incl Ref 5 and 6

1шт.

Part of Seal Kit, P/N 1543266C1

1шт.

5

1542999C1

SEAL

rod, NSS, order 1543266C1 kit, see below

1шт.

6

1542998C1

SEALING RING

buffer, NSS, order 1543266C1 kit, see below

1шт.

7

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 1543266C1

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup

1шт.

Part of Seal Kit, P/N 1543266C1

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of Seal Kit, P/N 1543266C1

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER dust

1шт.

Part of Seal Kit, P/N 1543266C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

117507A2

ROD ASSY.

piston, 45 mm (1-3/4 inch) diameter, replaces 117507A1, Includes: Ref. 13 and 14

1шт.

13

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

self aligning

1шт.

14

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

15

1986982C1

PISTON

cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

Piston

1шт.

Part of Seal Kit, P/N 1543266C1

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup

1шт.

Part of Seal Kit, P/N 1543266C1

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

Part of Seal Kit, P/N 1543266C1

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, special

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1543266C1

SEAL KIT

seal, includes Refs. 7, 8, 9, 10, 16, 17, 18, and part number 1542875C1 and an instruction sheet

1шт.
