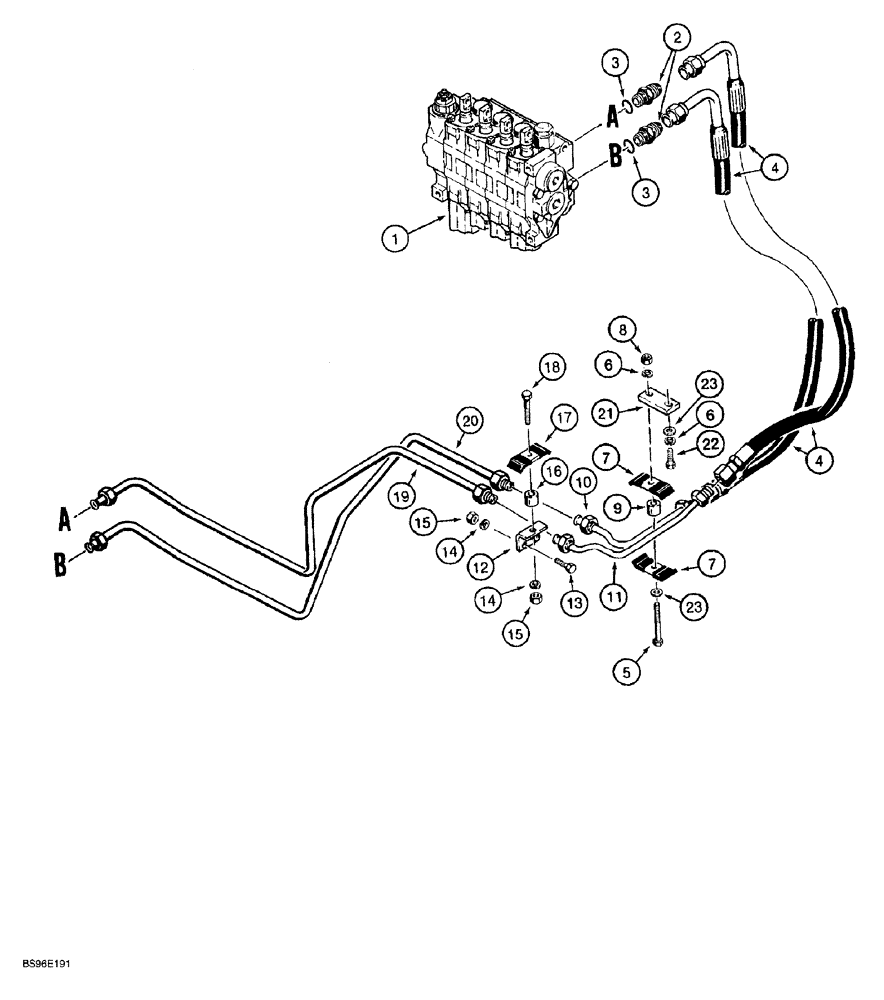

Запчасти Case 650G (8-20) - RIPPER HYDRAULIC CIRCUIT - CONTROL VALVE TO REAR OF TRACTOR (08) - HYDRAULICS

1

130558A1

VALVE

ASSEMBLY equipment control, four spool, parts list Fig. 8-40, if used

1шт.

1

336348A1

VALVE

ASSEMBLY equipment control, four spool, parts list Fig. 8-40 E5, not shown, if used

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

102889A1

HOSE ASSY.

480 mm (18-15/16 inch) long, at control valve

2шт.

5

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

R36022

CLAMP

tubes, to hydraulic reservoir frame

2шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.

9

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

tube, replaces D76209

1шт.

10

R38888

TUBE,0.625" OD

lower port

1шт.

11

R38886

TUBE,0.625" OD

upper port

1шт.

12

R36023

BRACKET

support, attaches to seat and tank frame

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

14

492-11038

LOCK WASHER,3/8"

3шт.

15

425-106

NUT,3/8"-16, Cl 5

3шт.

16

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

5/8 inch long, clamp, replaces D76209

1шт.

17

R36022

CLAMP

tubes

1шт.

18

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

19

R48413

TUBE,0.625" OD

upper port

1шт.

See Fig. 8-22 cor a continuation of the ripper hydraulic lines to the cylinders.

1шт.

20

R48415

TUBE,0.625" OD

lower port

1шт.

See Fig. 8-22 cor a continuation of the ripper hydraulic lines to the cylinders.

1шт.

21

L74730

PLATE

clamp mounting

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.
