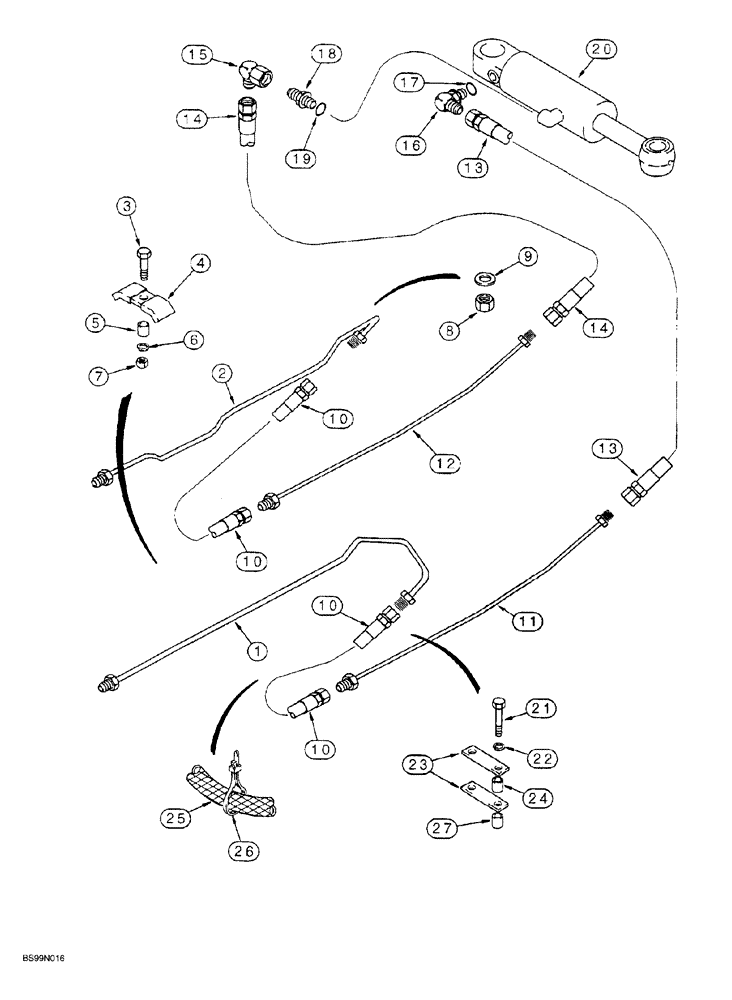

Запчасти Case 650G (8-16) - TILT HYDRAULIC CIRCUIT - DESCENDING TUBES TO CYLINDERS (08) - HYDRAULICS

1

119719A1

TUBE,12.7 mm OD, 1107, 265 mm Length

lower port tilt circuit to closed end of tilt cylinder

1шт.

2

119721A1

TUBE,12.7 mm OD, 1004, 199 mm Length

upper port tilt circuit to rod end of tilt cylinder

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

4

D138055

CLAMP

tubes

1шт.

5

D76208

SPACER

480 inch thick

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

If used

1шт.

8

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

9

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD), Special thin

2шт.

10

36443

HOSE

635 mm (25 inch) long, at engine side frame

2шт.

11

133674A1

TUBE

to closed end of tilt cylinder

1шт.

12

133673A1

TUBE

to rod end of tilt cylinder

1шт.

13

31-1253

HOSE ASSY.,12.7mm ID x 1193.8mm L, SAE 100R2

1194 mm (47 inch) long, at tilt cylinder closed end

1шт.

14

31-3032

HOSE ASSY.,12.7mm ID x 1257.3mm L

1257 mm (49-1/2 inch) long, at tilt cylinder rod end

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

16

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

D48030

CONNECTOR, ELEC

CONNECTOR ADAPTER straight, 3/4-16 flare x 7/8-14 inch O-ring boss, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

117511A1

CYLINDER ASSY.

89 (3-1/2) ID x 148 mm (5-7/8 inch) stroke, tilt, parts list Fig. 8-26

1шт.

20

412357A1R

REMAN-HYD CYLINDER

650G (4/94-), Reman for New PN 117511A1

1шт.

20

412357A1C

CORE-HYD CYLINDER

Return Number

1шт.

21

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

123171A1

LARGE PLATE

PLATE, LARGE hose clamping, tilt and angle

2шт.

24

D36040

BUSHING

SPACER clamp, 3/4 inch long

2шт.

25

142306A1

SLEEVE

four hose protection, tilt and angle hoses

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

27

123172A1

SPACER

7/8 inch long

2шт.
