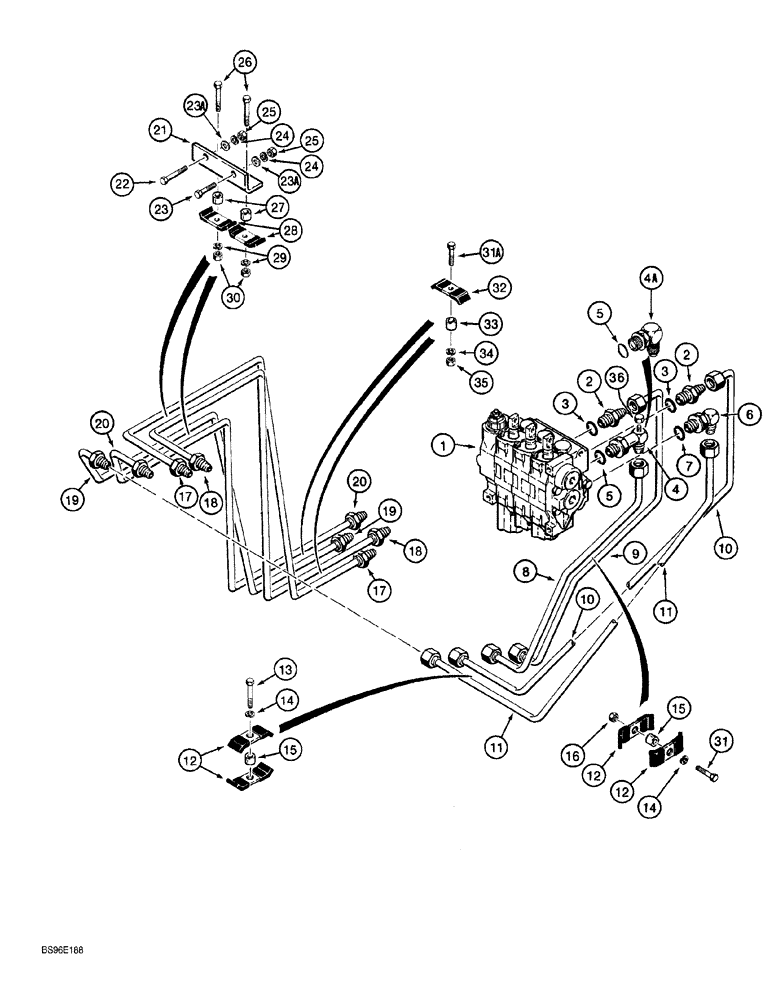

Запчасти Case 650G (8-14) - TILT AND ANGLE HYDRAULIC CIRCUITS - CONTROL VALVE AND DESCENDING TUBES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY control, for correct assembly and components, see Fig. 8-38, 9-39A, 9-40 or 8-41A

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, upper ports, Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

127370A1

TEE

ELBOW, 90 degree, special, at valve tilt circuit lower port, no longer available, order D36934, Ref. 4A

1шт.

4a

D36934

FITTING

ELBOW, 90 degree, special, at valve tilt circuit lower port, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Ref 4 or 4A elbow

1шт.

6

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

At valve angle circuit lower port, Includes Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

R58095

TUBE,0.5" OD

tilt circuit lower port

1шт.

9

R58093

TUBE,0.5" OD

tilt circuit upper port

1шт.

10

R58101

TUBE ASSY.,0.5" OD

angle circuit upper port

1шт.

11

R58103

TUBE ASSY.,0.5" OD

angle circuit lower port

1шт.

12

D138055

CLAMP

tubes

4шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

D76208

SPACER

480 inch thick

2шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

101374A1

TUBE,12.7 mm OD, 552, 490 mm Length

tilt circuit lower port

1шт.

18

101370A1

TUBE,12.7 mm OD, 571, 490 mm Length

tilt circuit upper port

1шт.

19

101378A1

TUBE,12.7 mm OD, 621, 620 mm Length

angle circuit lower port

1шт.

20

101376A1

TUBE,12.7 mm OD, 354, 640 mm Length

angle circuit upper port

1шт.

21

R58842

BRACKET

tube support

1шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Bracket mounting, left hand

1шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Bracket mounting, RH

1шт.

23a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Clamp mounting

2шт.

27

D76208

SPACER

480 inch thick

2шт.

28

D138055

CLAMP

tubes

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

425-106

NUT,3/8"-16, Cl 5

2шт.

31

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

31a

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

32

D138055

CLAMP

tubes

2шт.

33

D76208

SPACER

480 inch thick

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

36

218-752

CAP,37 Degree, 7/16"-20

Hex, Used with Ref. 4, if used

1шт.
