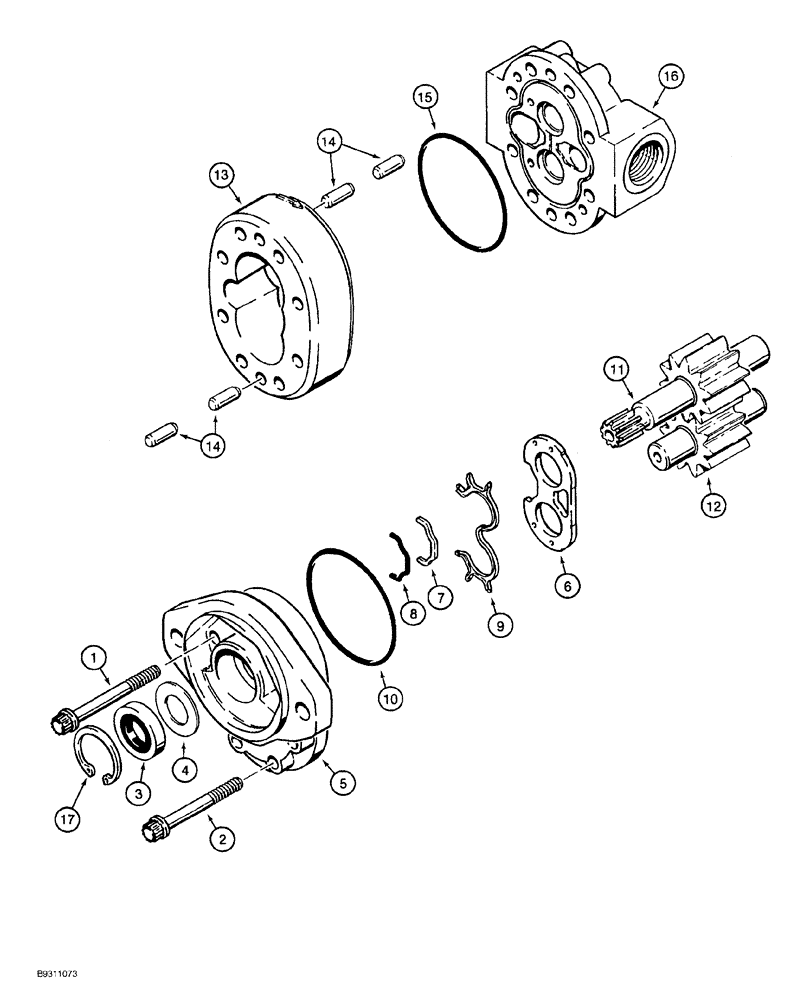

Запчасти Case 650G (8-10) - EQUIPMENT PUMP ASSEMBLY (08) - HYDRAULICS

R57348

PUMP, HYDRAULIC

ASSEMBLY, equipment, prior to Crawler P.I.N. JJG0216060, no longer available, order 186352A1, Includes: Ref. 1 - 17

1шт.

396801A2R

REMAN-HYD PUMP

650G P.I.N JJG0216060 (4/94-); Reman for New P/N R57348

1шт.

396801A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

186352A1

PUMP, HYDRAULIC

ASSEMBLY equipment, Crawler P.I.N. JJG0216060 and after, also service replacement for R57348, Includes: Ref. 1 - 17

1шт.

396801A2R

REMAN-HYD PUMP

650G Crawler P.I.N. JJG0216060 and after (4/94-); Reman for New P/N 186352A1

1шт.

396801A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

12 point flange, 3/8 NC x 3-3/4 inch, grade 8

4шт.

2

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

12 point flange, 3/8 NC x 3-1/2 inch, grade 8

4шт.

3

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

shaft

1шт.

Part of pump repair kits S301061 and 191088A1

1шт.

4

H104117

WASHER

seal

1шт.

Part of pump repair kits S301061 and 191088A1

1шт.

5

S301060

LARGE PLATE

PLATE, LARGE COVER shaft end

1шт.

6

1971509C1

PLATE

wear

1шт.

Part of pump repair kits S301061 and 191088A1

1шт.

7

1971506C1

SEAL

bearing

1шт.

Part of pump repair kits S301061 and 191088A1

1шт.

8

1971507C1

O-RING

moulded, bearing seal

1шт.

Part of pump repair kits S301061 and 191088A1

1шт.

9

S301059

GASKET

wear plate

1шт.

Part of pump repair kits S301061 and 191088A1

1шт.

10

238-6159

O-RING,0.103" Thk x 4.977" ID, -159, Cl 6, 90 Duro

Shaft end cover to gear housing

1шт.

Part of pump repair kits S301061 and 191088A1

1шт.

11

S301057

GEAR

drive

1шт.

12

S301058

GEAR-SET

driven

1шт.

S301056

GEAR

HOUSING ASSEMBLY, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING gear

1шт.

14

NSS

NOT SOLD SEPARAT

PIN dowel, cover locating

4шт.

15

238-6159

O-RING,0.103" Thk x 4.977" ID, -159, Cl 6, 90 Duro

Port end cover to gear housing

1шт.

Part of pump repair kits S301061 and 191088A1

1шт.

16

S301055

COVER

port end

1шт.

17

100-21137

SNAP RING,1.375", Int, #137

Shaft seal, if used (Replaces A32181)

1шт.

Part of pump repair kit 191088A1

1шт.

S301061

WEB

KIT pump repair, includes Refs. 3, 4, 6, 7, 8, 9, 10, 15, no longer includes Ref. 17 ring, R57348 pump assembly only, kit no longer available, order individual components

1шт.

191088A1

SEAL KIT

KIT pump repair, includes Refs. 3, 4, 6, 7, 8, 9, 10, 15 and 17, 186352A1 pump assembly

1шт.
