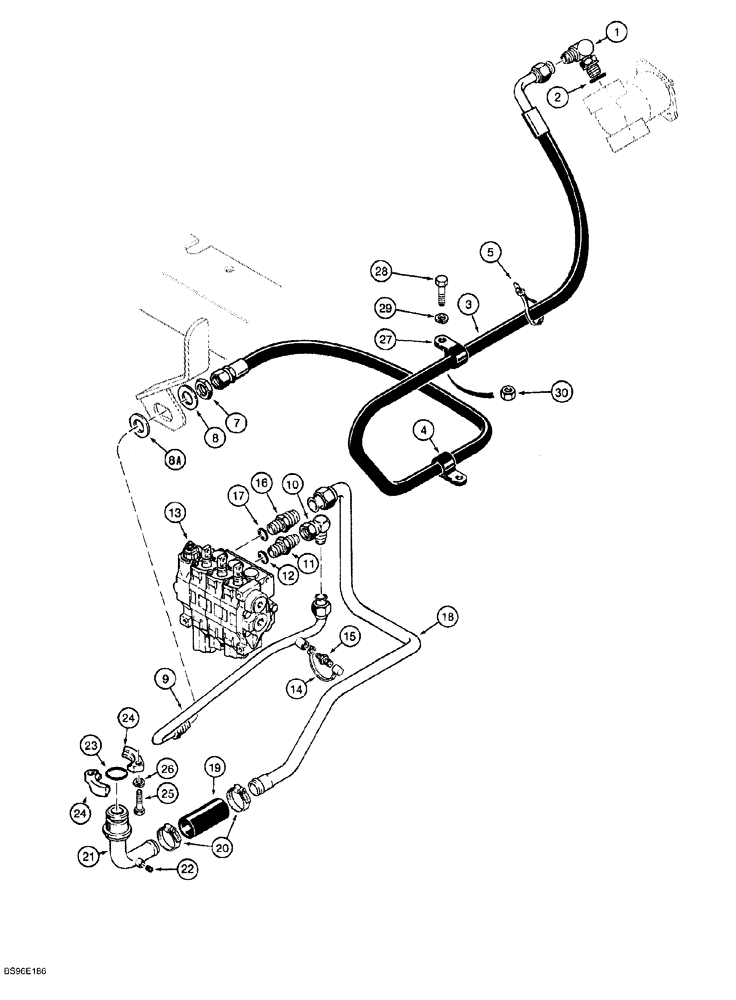

Запчасти Case 650G (8-08) - EQUIPMENT HYDRAULIC CIRCUIT - PUMP TO CONTROL VALVE AND RESERVOIR (08) - HYDRAULICS

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

131935A1

HOSE

1920 mm (75-5/8 inch) long, Serial Range: pump-tube

1шт.

4

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

P-type, Uses existing hardware, Refs. 25 - 27 on Fig. 8-6

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

7

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

8

195-2116

WASHER,1.19" ID x 2" OD x 0.08" Thk

flat, 1-3/16 x 2 x 1/16 inch

1шт.

8a

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special, 1-1/16 x 1-7/8 x 9/64 inch

1шт.

9

R58083

TUBE ASSY.,0.75" OD

to control valve inlet port, from hose

1шт.

10

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Incl. Ref. 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY equipment control, for correct assembly and components see Fig. 8-38, 8-39A, 8-40

1шт.

14

H434163

DUST CAP

Coupler

1шт.

15

R55912

NIPPLE

quick disconnect, diagnostic check

1шт.

16

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

120138A1

TUBE

control valve outlet port to hydraulic reservoir

1шт.

19

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

cut from S118465X bulk hose, from reservoir, see below

1шт.

20

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

adj., 1-1-7/8 inch dia.

2шт.

21

R33400

TUBE,1.25" OD x 4.2, 3.64" L

to hydraulic reservoir

1шт.

22

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

23

238-5325

O-RING,0.21" Thk x 1.475" ID, -325, Cl 5, 75 Duro

Gland, tube, at hydraulic reservoir

1шт.

24

R27612

CLAMP

split flange

2шт.

25

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

27

D40471

CLAMP

P-type

1шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

425-106

NUT,3/8"-16, Cl 5

1шт.

S118465X

LARGE HOSE

HOSE,LARGE bulk, 32 (1-1/4) x 45 (1-3/4) x 4572 mm (180 inch) long

1шт.
