(8-06) - EQUIPMENT HYDRAULIC CIRCUIT - RESERVOIR TO PUMP

Запчасти Case 650G (8-06) - EQUIPMENT HYDRAULIC CIRCUIT - RESERVOIR TO PUMP (08) - HYDRAULICS

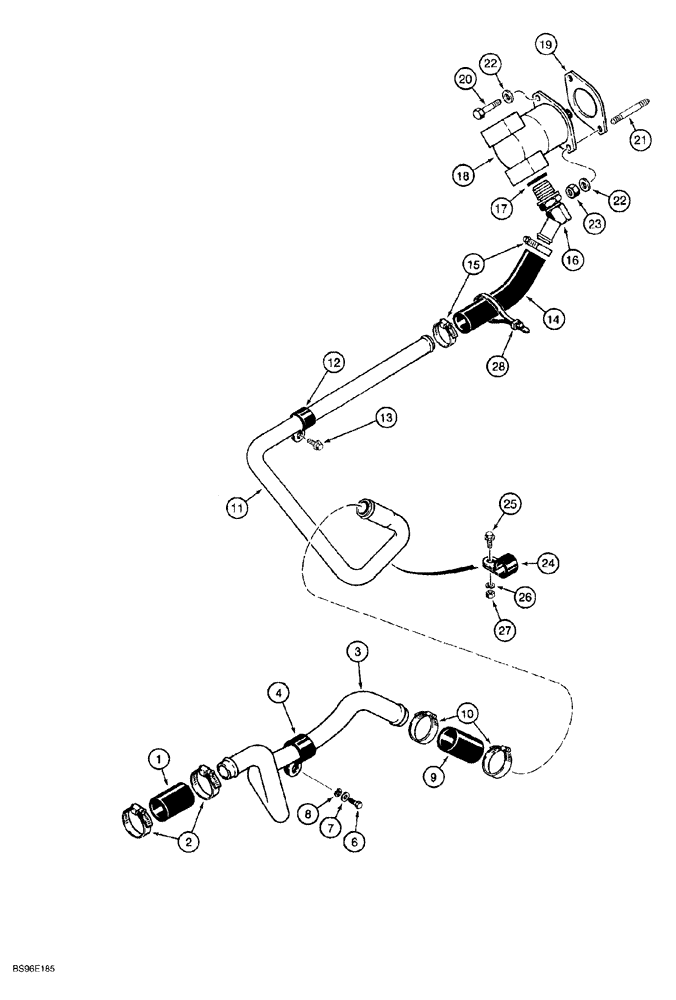

Схема запчастей Case 650G - (8-06) - EQUIPMENT HYDRAULIC CIRCUIT - RESERVOIR TO PUMP (08) - HYDRAULICS
21
16
6
14
8
4
12
23
26
3
18
27
10
28
19
7
22
11
13
24
9
1
2
17
22
25
15
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R43918

HOSE

114 mm (4-1/2 inch) long, cut from R45924 bulk hose, hydraulic reservoir to tube, see below

1шт.

2

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

Adj.

2шт.

3

R56439

TUBE,1.5" OD

from hydraulic reservoir hose

1шт.

4

49773

CLAMP

P-type, reservoir end

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

9

R43918

HOSE

114 mm (4-1/2 inch) long, cut from R45924 bulk hose, hydraulic reservoir, Serial Range: tube-equipment

1шт.

10

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

Adj.

2шт.

11

R57340

TUBE,31.75 mm OD

to pump supply hose

1шт.

12

D40471

CLAMP

P-type

1шт.

13

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

1шт.

14

D35463

HOSE

343 mm (13-1/2 inch) long, cut from S118465 bulk hose, tube to equipment pump, see below

1шт.

15

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

adj., 1-1-7/8 inch dia.

2шт.

16

139110A1

ELBOW

45 degree, special, 1-1/4 stem end x 1-5/8-12 inch O-ring boss, pump inlet, Includes: Ref. 17

1шт.

17

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

18

REF

INSTRUCTION

PUMP ASSEMBLY equipment, for correct assembly, see Fig. 8-10

1шт.

19

J931608

GASKET

access cover plate, replaces A77441 and J919601

1шт.

20

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

1шт.

21

R57506

STUD

pump mounting

1шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

23

829-1412

NUT,M12, Cl 10.9

1шт.

24

D40471

CLAMP

P-type, see Fig. 8-8, Ref. 4 for attaching clamp

1шт.

25

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

R45924

HOSE

38 (1-1/2) ID x 241 mm (9-1/2 inch) long

1шт.

S118465X

LARGE HOSE

HOSE,LARGE bulk, 32 (1-1/4) x 45 (1-3/4) x 4572 mm (180 inch) long

1шт.
