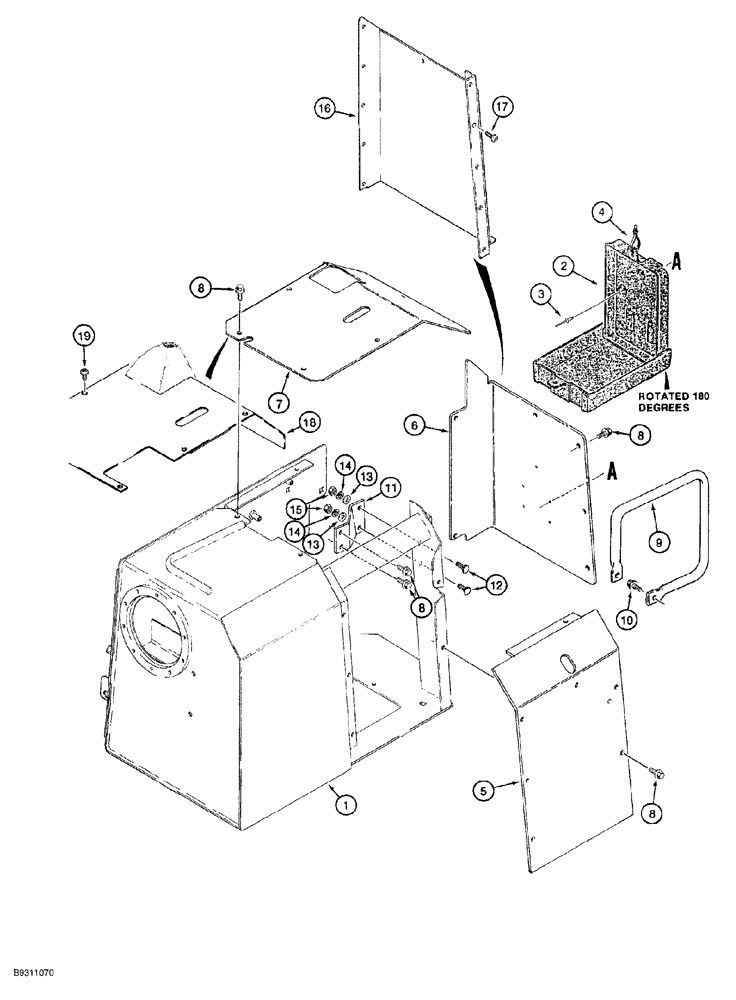

Запчасти Case 650G (8-04) - HYDRAULIC RESERVOIR COVERS AND OPERATORS MANUAL BOX (08) - HYDRAULICS

1

124177A1

TANK

RESERVOIR hydraulic, see Fig. 8-2 for reservoir related parts

1шт.

2

R46464

CASE

BOX operators manual

1шт.

3

151-522

RIVET,Pop, 3/16" x .575"

Break mandrel

3шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, manual box

1шт.

5

R58146

COVER ASSY

outer side, models without cab

1шт.

6

R58147

COVER

front, models without cab

1шт.

7

R58148

COVER

top, models without cab

1шт.

8

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

10-17шт.

9

R58161

HANDLE

grab

1шт.

10

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

11

R58786

PLATE

brace

1шт.

12

411-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 2

carriage, 3/8 NC x 1 inch, grade 2

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

1999581C1

COVER

front, cab models, brown, parts used on models with cab only

1шт.

16

189639A1

COVER

front, cab models, gray, parts used on models with cab only

1шт.

17

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

hex socket button head, 5/16 NC x 3/4 inch, parts used on models with cab only

14шт.

18

1999551C1

COVER

upper, cab models, includes Refs. 38-43 on Fig. 8-35A and Refs. 33-43 on Fig. 8-37A, parts used on models with cab only

1шт.

19

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

hex socket button head, 5/16 NC x 1/2 inch, parts used on models with cab only

7шт.
