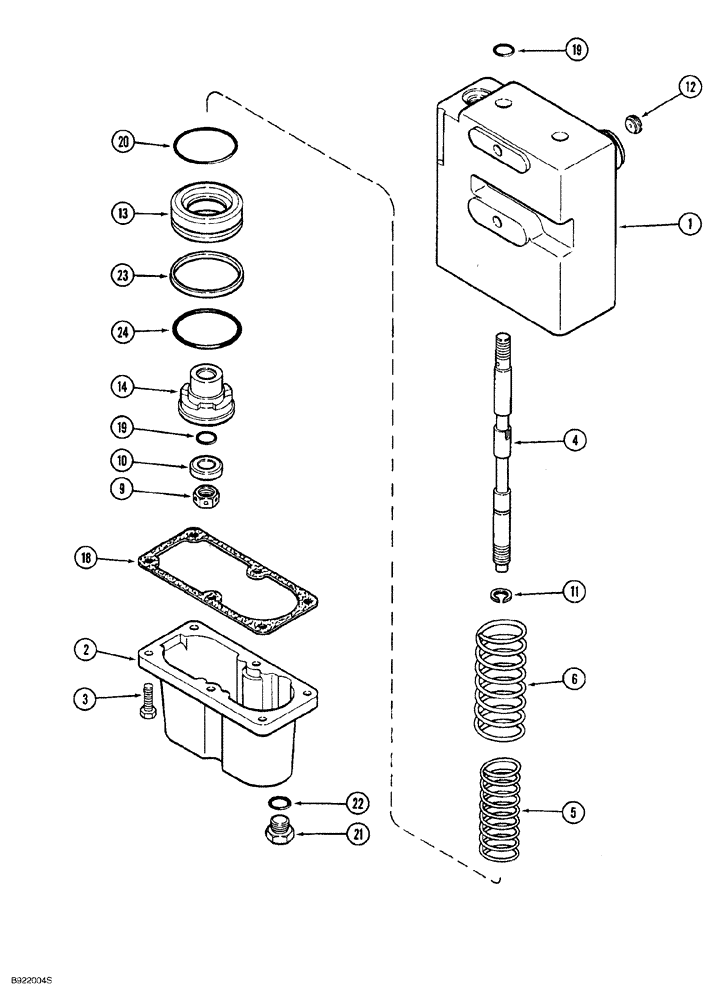

Запчасти Case 650G (7-08) - 1272218C1 BRAKE VALVE (07) - BRAKES

1272218C1

VALVE

ASSEMBLY, brake, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

384495R1

CAP

body

1шт.

3

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex, 1/4 NC x 7/8 inch

6шт.

4

NSS

NOT SOLD SEPARAT

SPOOL valve

2шт.

5

1263125C1

SPRING

piston, small

2шт.

6

1263124C1

SPRING

piston, large

2шт.

9

9411648

LOCK NUT,1/2"-20, GC

2шт.

10

69158C1

WASHER,12.78mm ID x 25.4mm OD x 6.35mm Thk

piston

2шт.

11

A27020

RING

retaining

2шт.

12

140720C1

PLATE

orifice

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON large

2шт.

14

NSS

NOT SOLD SEPARAT

PISTON small

2шт.

71487C92

GASKET KIT

KIT, valve, Includes: Ref. 18 - 24

1шт.

18

384503R2

GASKET,0.38mm Thk

body

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING spool

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING, 2-1/16 ID x 3/32 inch

2шт.

21

76349

PLUG,9/16" - 18 ORB

1шт.

23

NSS

NOT SOLD SEPARAT

RING slipper

2шт.

24

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2-1/16 ID x 3/32 inch wide

2шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
