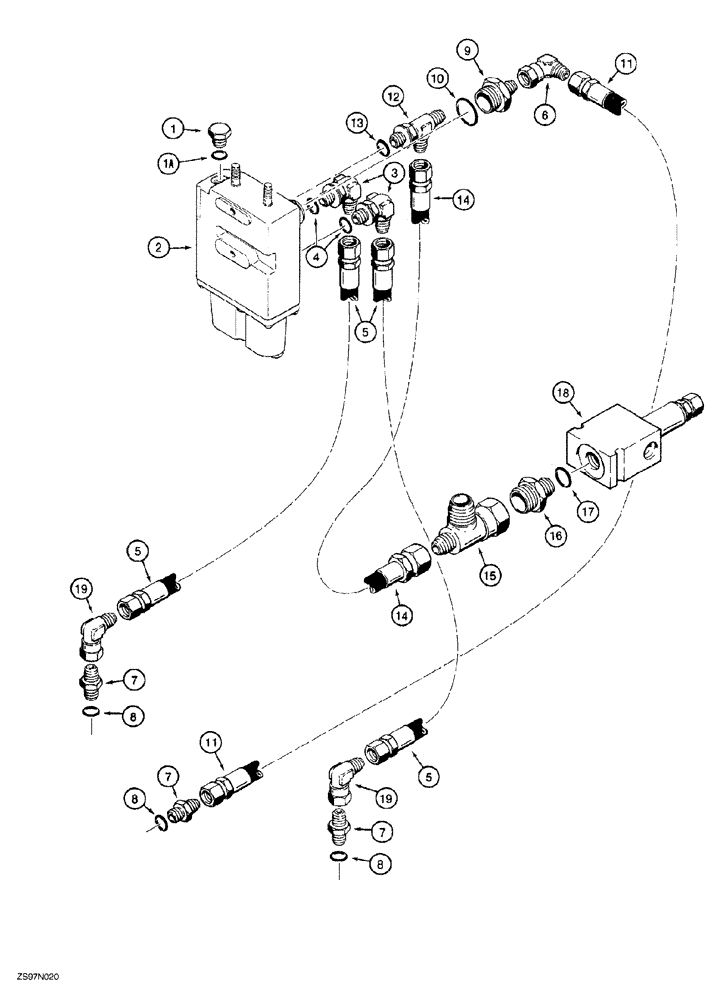

Запчасти Case 650G (7-04) - POWER BRAKE HYDRAULIC LINES - VALVE TO TRANSMISSION (07) - BRAKES

1

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 1A

1шт.

2

1272218C1

VALVE

ASSEMBLY brake, parts list Fig. 7-8, see Fig. 7-2 for mounting hardware and linkage

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 4

2шт.

5

R58723

HOSE

1163 mm (45-7/8 inch) long, Serial Range: valve-transmission

2шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 8

3шт.

9

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

straight, 9/16-18 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Pedal linkage

1шт.

11

R58725

HOSE

1451 mm (57-1/8 inch) long, Serial Range: valve-transmission

1шт.

12

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 13

1шт.

14

R58726

HOSE

1041 mm (41 inch) long, brake valve to relief valve

1шт.

15

218-5488

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1-1/16-12 flare branch x swivel x 3/4-16 inch flare

1шт.

16

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Straight, Includes Ref 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

R57582

VALVE

ASSEMBLY relief, component parts not serviced separately, see Fig. 6-26 for related parts

1шт.

19

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

If used

2шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
