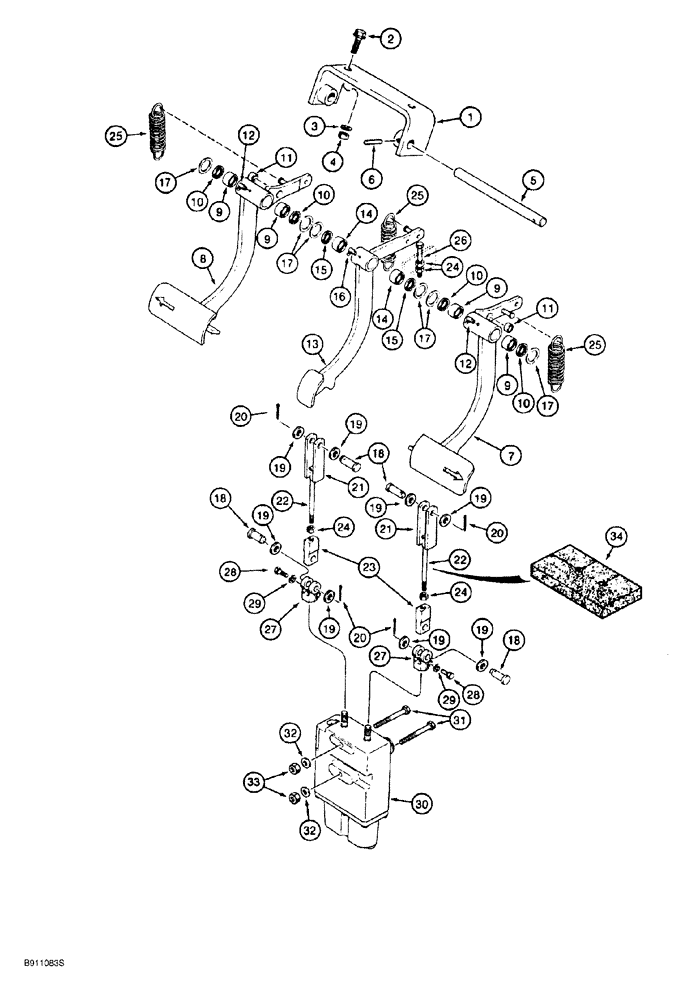

Запчасти Case 650G (7-02) - BRAKE PEDALS AND LINKAGE (07) - BRAKES

1

R58227

BRACKET

mounting, brake pedals

1шт.

2

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

2шт.

5

R58225

SHAFT

mounting

1шт.

6

38-11622

LOCK PIN,1/4" x 1 3/8", Slotted

1/4" x 1 3/8", Slotted

1шт.

7

R58357

PEDAL

ASSEMBLY brake, right hand, includes Refs. 9 - 12

1шт.

8

R58358

PEDAL

ASSEMBLY brake, left hand, includes Refs. 9 - 12

1шт.

9

L31166

NEEDLE BEARING

roller

2шт.

10

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

11

L13071

BUSHING

pedal linkage

1шт.

12

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

13

R58360

PEDAL

ASSEMBLY brake, center, Includes: Ref. 14 - 16

1шт.

14

L31166

NEEDLE BEARING

roller

2шт.

15

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

16

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

17

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD), Adjustment, brake pedal

1шт.

18

427-8168

CLEVIS PIN,12.7mm OD x 42.88mm L

Hardened, Replaces 141-63

4шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

8шт.

20

432-816

COTTER PIN,1/8" x 1"

4шт.

21

R58362

FORK

YOKE clevis, pedal to valve, at pedal

2шт.

22

17-696

BOLT,Sq Hd, 3/8" - 16 x 6", Gr 2

square head, 3/8 NC x 6 inch, grade 2, yoke to valve

2шт.

23

R58461

LINK

adjustable, brake pedal bolt

2шт.

24

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

25

R36912

SPRING

return

3шт.

26

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

Pedal adjustment

1шт.

27

384083R2

YOKE

YOKE brake pedal to valve, at valve

2шт.

28

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

hex, 5/16 NC x 1-1/8 inch, yoke retaining

2шт.

29

492-11031

LOCK WASHER,5/16"

2шт.

30

1272218C1

VALVE

ASSEMBLY brake, parts list Fig. 7-8

1шт.

31

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

hex, 3/8 NC x 3-3/4 inch

2шт.

32

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

2шт.

33

231-1406

LOCK NUT,3/8"-16, GB

2шт.

34

103583A1

LARGE PLATE

PLATE, LARGE PAD noise reduction, at brake valve, cab models only

1шт.
