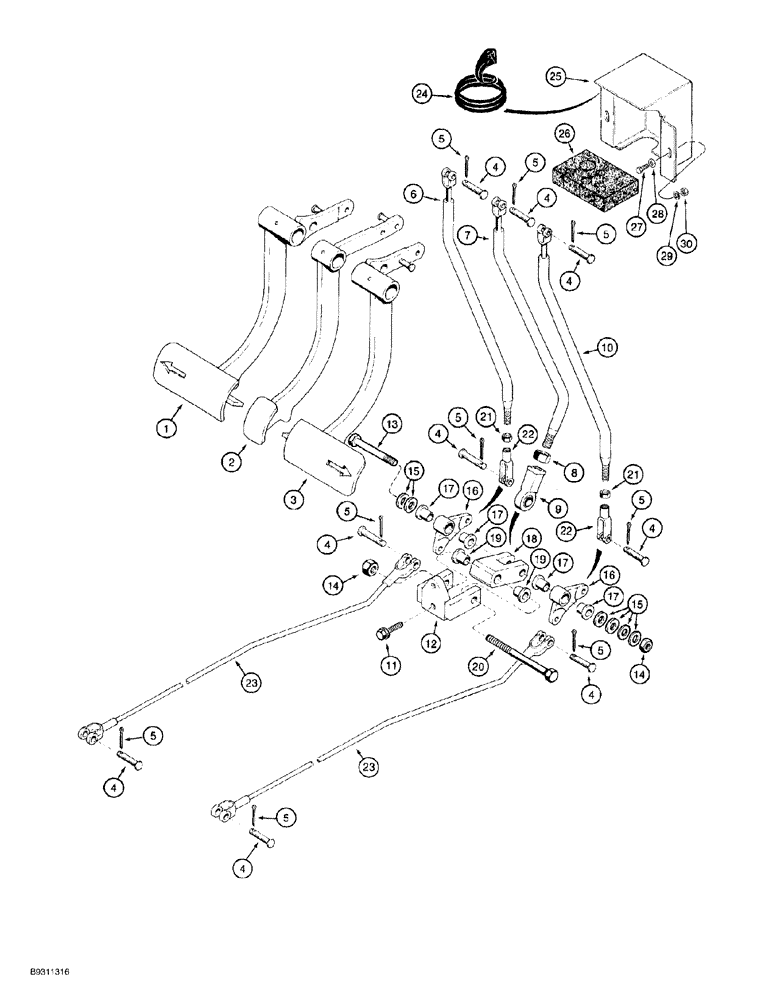

Запчасти Case 650G (6-40) - TRANSMISSION CLUTCH CUTOUT (06) - POWER TRAIN

1

R58358

PEDAL

ASSEMBLY brake, left hand, see Fig. 7-2 for components and related parts

1шт.

2

R58360

PEDAL

ASSEMBLY brake, center, see Fig. 7-2 for components and related parts

1шт.

3

R58357

PEDAL

ASSEMBLY brake, right hand, see Fig. 7-2 for components and related parts

1шт.

4

D149287

PIN,7.9mm OD x 26.72mm L

Clevis, Special, 5/16 x 15/16 inch, hardened

9шт.

5

432-612

COTTER PIN,3/32" x 3/4"

9шт.

6

R58681

ROD

left hand connecting, Serial Range: pedal-bellcrank

1шт.

R58705

ROD

ASSEMBLY center pedal, to clutch cutout block, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

ROD center pedal to clutch cutout block

1шт.

8

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

9

L115782

BALL JOINT

female, center, Serial Range: rod-block

1шт.

10

R58685

ROD

right hand connecting, Serial Range: pedal-bellcrank

1шт.

11

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

12

R58688

BRACKET

block mounting

1шт.

13

426-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

hex, 1/2 NC x 4 inch, grade 8

1шт.

14

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

2шт.

15

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

R58374

CRANK LEVER

BELLCRANK ASSEMBLY clutch cutout, Includes: Ref. 16 and 17

2шт.

16

NSS

NOT SOLD SEPARAT

BELLCRANK clutch cutout

1шт.

17

R58311

BRONZE BUSHING

BUSHING bronze

2шт.

R58375

BLOCK

ASSEMBLY connection, clutch cutout, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

BLOCK connection, clutch cutout

1шт.

19

R58311

BRONZE BUSHING

BUSHING bronze

2шт.

20

426-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

hex, 1/2 NC x 5-1/2 inch, grade 8

1шт.

21

425-115

NUT,5/16"-24, G5

2шт.

22

213-125

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

23

R58677

ROD

connecting, Serial Range: bellcrank-transmission

2шт.

24

D49094

LINING

TRIM edge, 268 mm (10-1/2 inch) long, cut from F42827 bulk trim, cut from F42827, see below, cab models only

1шт.

25

103233A1

COVER

linkage, cab models only

1шт.

26

103232A1

SEAL

PAD noise reduction, at cover, cab models only

1шт.

27

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Cab models only

2шт.

28

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch, cab models only

2шт.

29

492-11025

LOCK WASHER,1/4"

Cab models only

2шт.

30

425-104

NUT,1/4"-20, Cl 5

Cab models only

2шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm (116 inch) long, cab models only

1шт.
