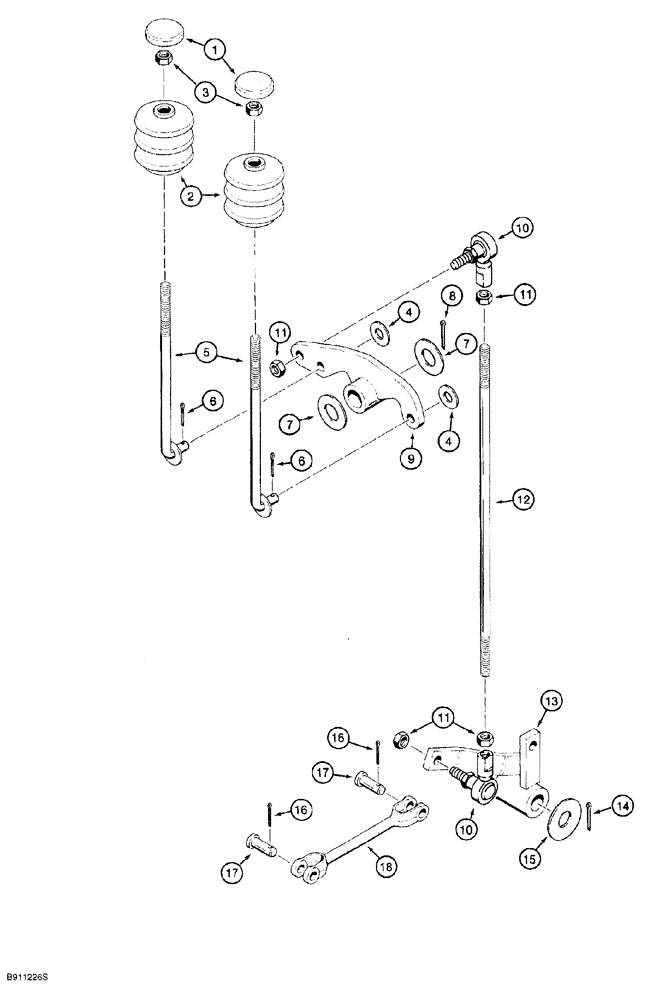

Запчасти Case 650G (6-38) - TRANSMISSION RANGE SHIFT CONTROL (06) - POWER TRAIN

1

R57963

PEDAL

range shift control

2шт.

2

D141049

BOOT

pedal

2шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

5

R58198

ROD ASSY.

pedal

2шт.

6

432-612

COTTER PIN,3/32" x 3/4"

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

2шт.

8

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

9

R58012

LEVER

BELLCRANK range shift control

1шт.

10

R47940

BALL JOINT

3/8 inch NF

2шт.

11

425-116

NUT,3/8" - 24, Gr 5

Hex

4шт.

12

D68441

ROD

bellcrank, to range shift lever

1шт.

13

R58193

LEVER ASSY.

range shift control

1шт.

14

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

15

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

1шт.

16

432-612

COTTER PIN,3/32" x 3/4"

2шт.

17

D149288

PIN,8.33mm OD x 30.66mm L

Clevis

2шт.

18

D30319

ROD

range control

1шт.
