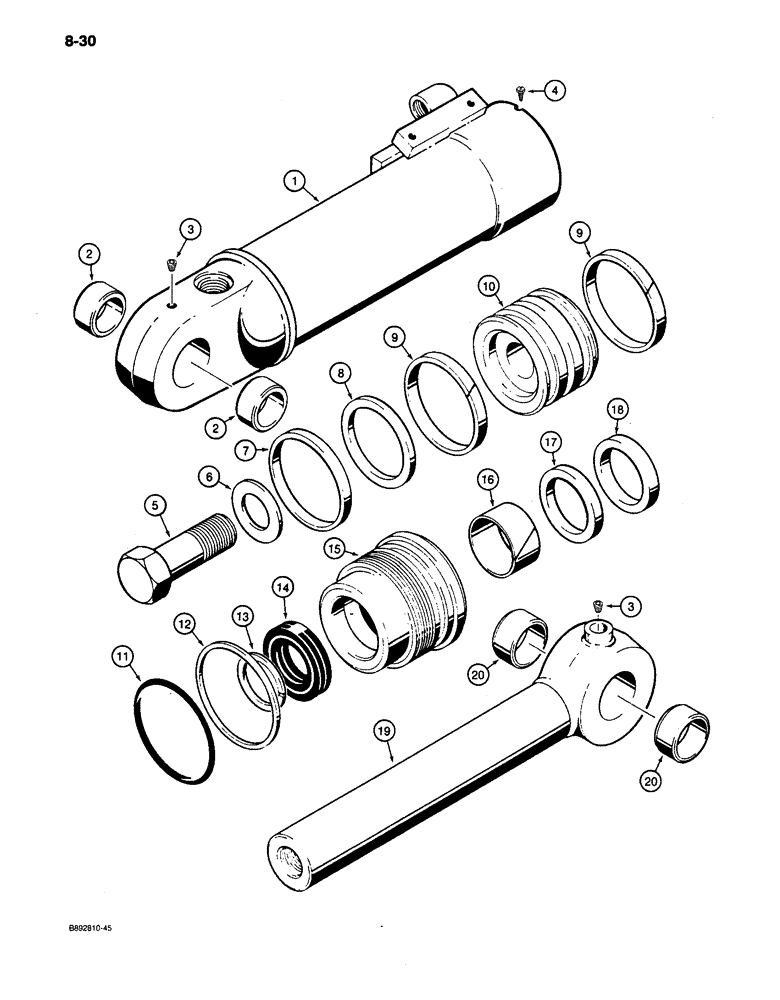

Запчасти Case 650 (8-30) - DOZER TILT CYLINDER - G109485 (08) - HYDRAULICS

G109485

CYLINDER ASSY.

CYLINDER ASSEMBLY - dozer tilt, 4 inch ID x 9-29/32 inch stroke, Includes: Ref. 1 - 20

1шт.

1

G109486

TUBE,3.995" ID x 4" DIA x 18.86" L

- cylinder, Includes: Ref. 2

1шт.

2

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

3

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

2шт.

4

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted, No. 8 NC x 3/8 inch

1шт.

5

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

6

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened

1шт.

7

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109423.

1шт.

8

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of seal kit P/N G109423.

1шт.

9

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of seal kit P/N G109423.

1шт.

10

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

G107524

GLAND

ASSEMBLY - cylinder, Includes: Ref. 11 - 18

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G109423.

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N G109423.

1шт.

13

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of seal kit P/N G109423.

1шт.

14

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109423.

1шт.

15

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

16

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of seal kit P/N G109423.

1шт.

17

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

18

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod

1шт.

Part of seal kit P/N G109423.

1шт.

19

G109488

JACK HEAD

ROD - piston, 2 inch diameter, Includes: Ref. 20

1шт.

20

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

G109423

GASKET KIT

KIT - seal, Includes: Ref. 7 - 9, 11 - 14, 16 and 18

1шт.
