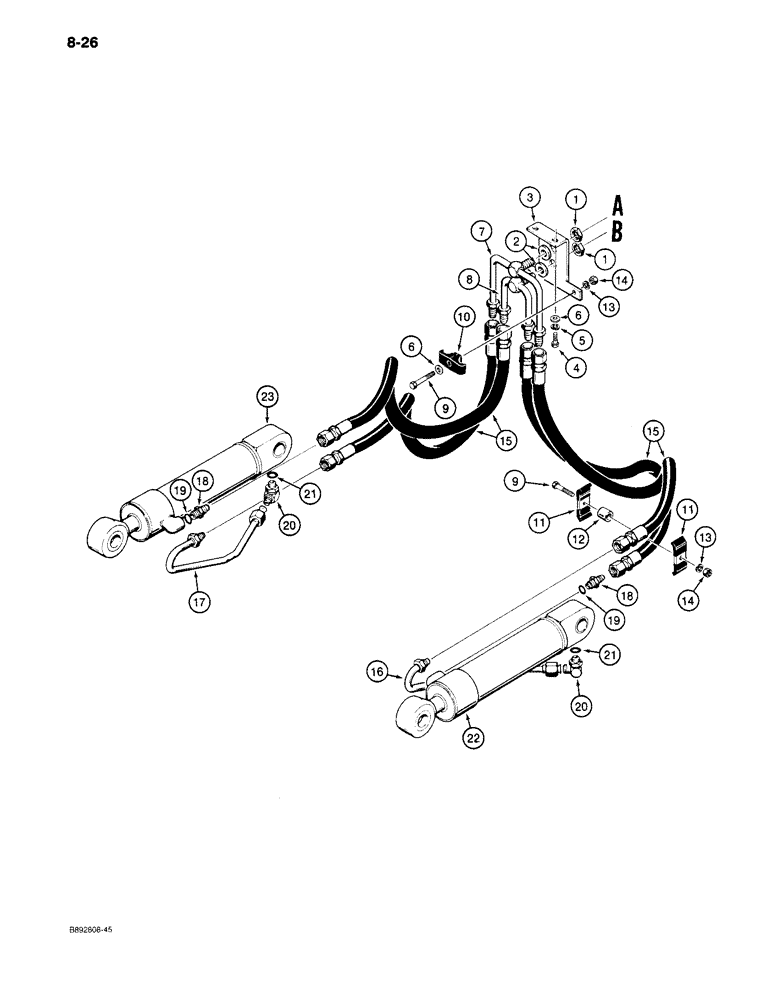

Запчасти Case 650 (8-26) - RIPPER HYDRAULIC CIRCUIT, REAR OF TRACTOR TO CYLINDERS (08) - HYDRAULICS

1

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

2

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch

2шт.

3

R35545

BRACKET

- tubes, attaches to rear of seat and tank frame

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

7

R35549

TUBE,0.625" OD x 6.2, 3.75" L

- A port, upper

1шт.

8

R46492

TUBE,0.625" OD x 4, 2.1" L

- B port, lower, with restrictor fitting

1шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

10

D120613

CLAMP,20mm ID

-, Serial Range: tubes-bracket

2шт.

11

D40236

CLAMP

- hoses at cylinders

4шт.

12

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- clamp, 7/8 inch (22 mm) long, at hoses

2шт.

13

492-11038

LOCK WASHER,3/8"

4шт.

14

425-106

NUT,3/8"-16, Cl 5

4шт.

15

F93300

HOSE

- 29 inch, Serial Range: long,-cylinders

4шт.

16

R38348

TUBE,0.625" OD

- right-hand, to closed end of cylinder

1шт.

17

R38350

TUBE,0.625" OD

- left-hand, to closed end of cylinder

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 deg adj, 7/8-14 inch flare x O-ring boss, Incl. Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

G101214

CYLINDER ASSY.

CYLINDER ASSEMBLY - ripper, right-hand, parts list Figure 8-34

1шт.

23

G101215

CYLINDER ASSY.

CYLINDER ASSEMBLY - ripper, left-hand, parts list Figure 8-34

1шт.
