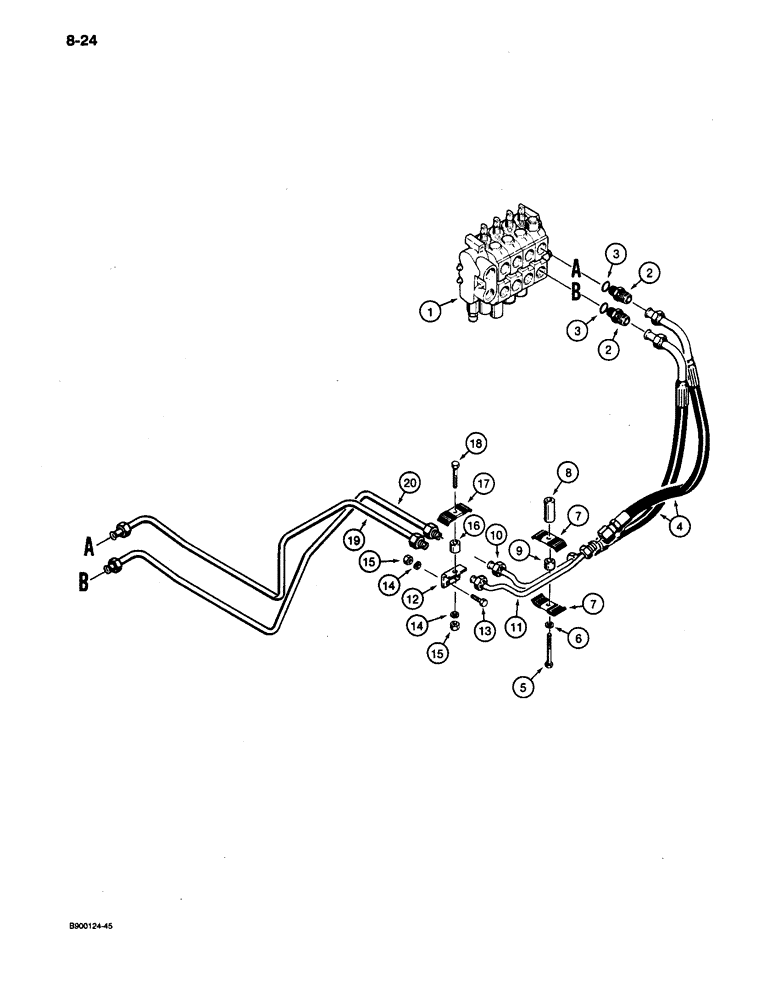

Запчасти Case 650 (8-24) - RIPPER HYDRAULIC CIRCUIT, CONTROL VALVE TO REAR OF TRACTOR (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, for correct assembly and components see Figure 8-46 or 8-48

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

R38890

HOSE

- at control valve

2шт.

5

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

R36022

CLAMP

- tubes, to hydraulic reservoir frame

2шт.

8

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

- 15/16 inch long, upper

1шт.

9

D76209

SPACER

- 5/8 inch long, lower

1шт.

10

R38888

TUBE,0.625" OD

- B port

1шт.

11

R38886

TUBE,0.625" OD

- A port

1шт.

12

R36023

BRACKET

- tube support, attaches to seat and tank frame

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

3шт.

15

425-106

NUT,3/8"-16, Cl 5

3шт.

16

D76209

SPACER

- clamp, 5/8 inch long

1шт.

17

R36022

CLAMP

- tubes

1шт.

18

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

19

R48413

TUBE,0.625" OD

- A port, upper

1шт.

20

R48415

TUBE,0.625" OD

- B port, lower

1шт.
